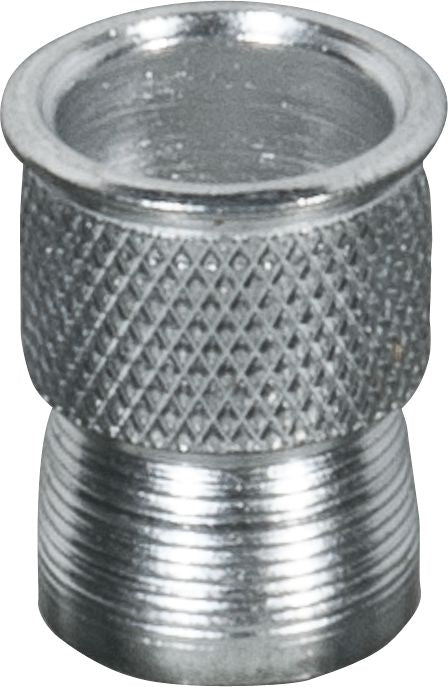

Threaded Insert for Soft Material, Steel, Cadmium Finish, Diamond Knurled, Small Flange, Coarse Thread, #8-32, 0.37" Length
(Pack of
25)
SKU:95971 Item#: 95971
• Tin-plated
• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Hex Flange Nut Grade 8 Steel M8-1.25
$0.00
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Standard Threaded Insert #4-40
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-24
$0.00
Couldn't load pickup availability
Diamond Grip II and Thin Wall Installation Tool
$0.00
Couldn't load pickup availability
Threaded Insert Installation Tool
$0.00
Couldn't load pickup availability
Product Description
• Tin-plated• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Technical Specifications
| Item#: | 95971 |
|---|---|
| Manufacturer Model #: | #8-32 Soft Material Insert |
| Diameter | #8 |
| Thread Pitch | 32 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Soft Material Threaded Inserts |
| Body Type | Diamond Knurled |
| Hole Size | 0.266 " |
| Pilot Drill Size | 17/64 " |
| Pilot Drill Number | 84734 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.285 " |
| Body Diameter | 0.264 " |
| Length | 0.370 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.09 lb |
