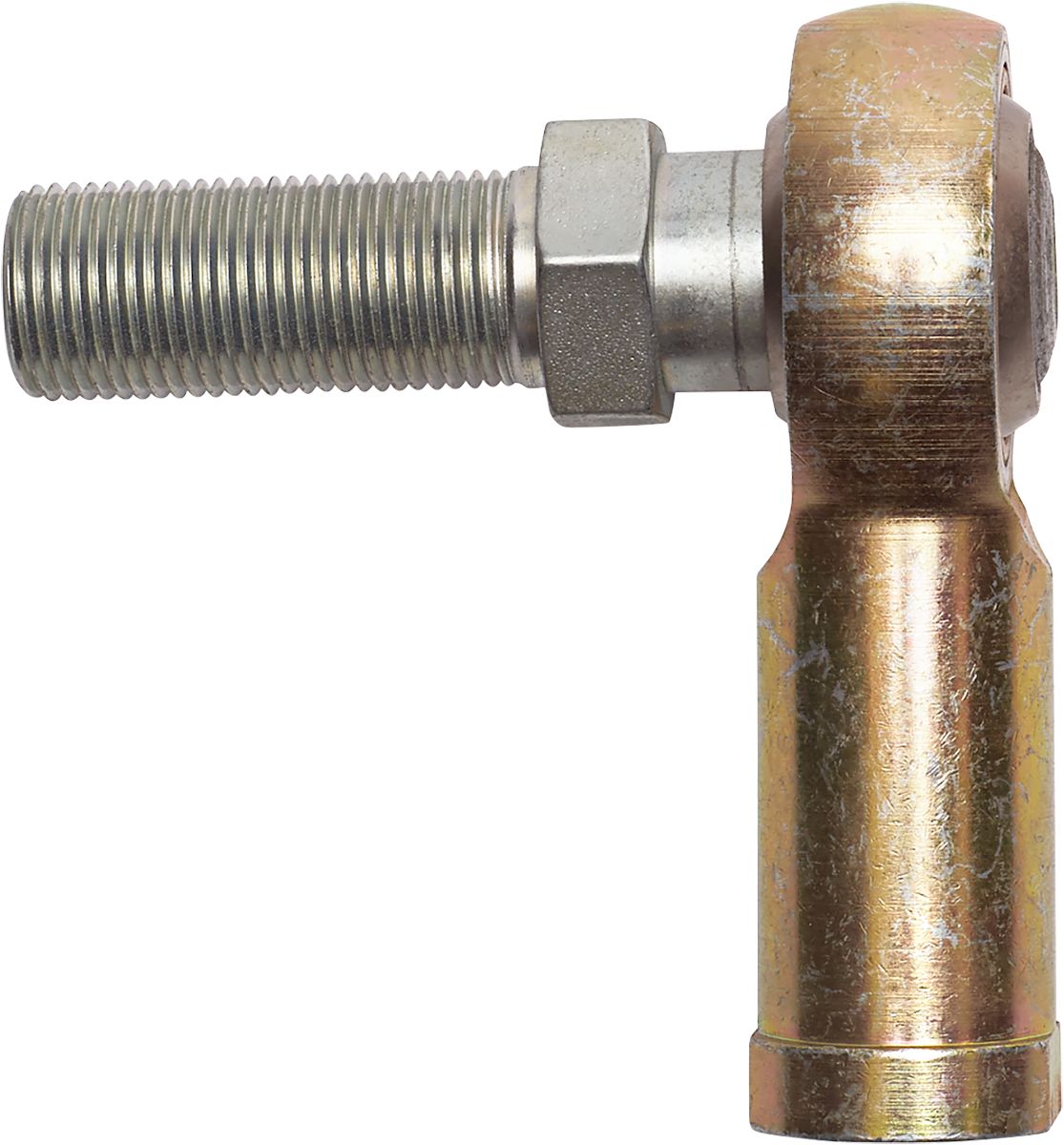

Throttle Ball Joint with Spherical Bearing 1/4-28
(Pack of
1.0)
• Available in both right and left hand threads (studs are right hand threads)
• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• Allows a 50° misalignment in any direction
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 7-22
Frequently Bought Together
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/16-24
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 3/4-16
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 1/2-20
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 1/2-20
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/16-24
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 1/4-28
Couldn't load pickup availability
Product Description
• Available in both right and left hand threads (studs are right hand threads)• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• Allows a 50° misalignment in any direction
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Technical Specifications
| Item#: | 60010 |
|---|---|
| Length of Rod End to Center of Stud | 1.312 " |
| Stud Length | .5 " |
| Stud Length to Center of Rod End | 1.047 " |
| Female Thread | 1/4-28 |
| Static Load Rating | 550 lb |
| Female and Stud Threads | 1/4-28 |
| Stud Thread | 1/4-28 " |
| Thread | Left Hand Threads |
| Plating | Yes |
| A | .5 " |
| B | 1.047 " |
| C | 1.312 " |
| UNSPSC #: | 25172405 |
| TAA Compliant: | Yes |
| Weight: | 0.08 lb |
