Home Fasteners USS Flat Washer Low Carbon Steel 1"
Fasteners

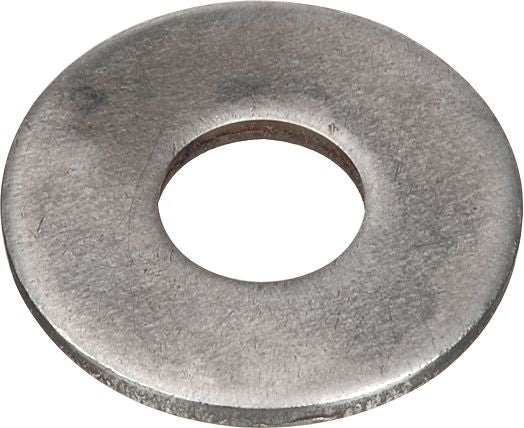

USS Flat Washer Low Carbon Steel 1"
(Pack of 25)

FalconGrip®

• Smooth finish
• Burr-free
• Uniform gauge
• Zinc-plated
• Conforms to SAE Specification J488, ANSI Specification B18.22.1 and Federal Specification FF-W-92
*Since the dimensional properties of a 3/16 USS and No. 12 Washer are similar, Lawson’s 3/16 USS Flat Washer (Item No. 500) can be used with a No. 12 Screw.

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 11-29

Frequently Bought Together


DIN 125A Flat Washer Grade 140 HV M10

Item#: 80264

Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm

Item#: 28687

DIN 125A Flat Washer Grade 140 HV M6

Item#: 80261

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

SAE Flat Washer Low Carbon Steel 7/16"

Item#: FA515

USS Flat Washer Thru-Hardened Steel 1/4"

Item#: 88445

Drive Rivet Nylon M8

Item#: 1500739

Specialty Rivet with Plastic Cap Aluminum 3.2mm

Item#: KT13763

Inner Fender Shield Attaching Clip Nylon Black

Item#: P27685

SAE Flat Washer Thru-Hardened Steel 7/16"

Item#: FA88438

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: 88447

USS Flat Washer Low Carbon Steel 7/16"

Item#: FA504

Product Description

• Smooth finish
• Burr-free
• Uniform gauge
• Zinc-plated
• Conforms to SAE Specification J488, ANSI Specification B18.22.1 and Federal Specification FF-W-92
*Since the dimensional properties of a 3/16 USS and No. 12 Washer are similar, Lawson’s 3/16 USS Flat Washer (Item No. 500) can be used with a No. 12 Screw.

Technical Specifications

Item#: FA510
Nominal Size 1 "
Finish Bright Zinc
Type Flat Washer
I.D. 1.062 "
O.D. 2.500 "
Thickness 0.165 "
Material Carbon Steel
Pattern USS
Specifications ANSI B18.22.1
UNSPSC #: 31161807
TAA Compliant: No
Weight: 4.14 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
