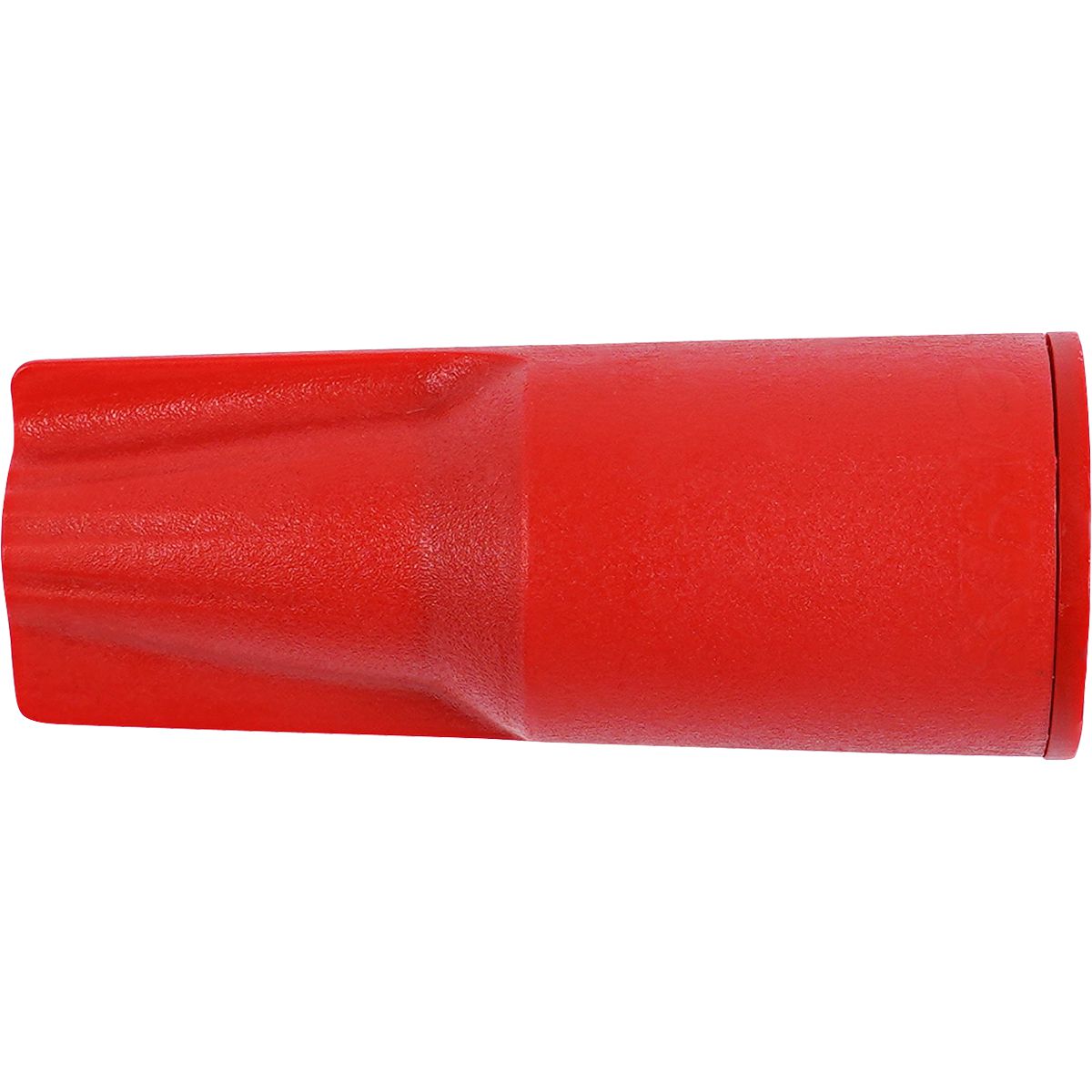

Watertight Wire Nuts
(Pack of
25)
• Moisture and corrosion resistant wire connections
• Sealant provides 500 volts of insulation for every 1 mil of thickness
• Can be used in watertight boxes to further protect against condensation, ice formation, fumes and flooding
• The unique resin outer shell and modified silicone fill provide excellent protection against most chemical environments including ammonia, acids, salts and waste material
• Great in damp and wet areas, can be submersed but not continuously
Frequently Bought Together
Temflex™ 165 Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Insulform Heat Shrink Tubing 22 to 18 AWG Black
Couldn't load pickup availability
Energizer® AA Alkaline Battery 1.5V
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Wire Connector 22 to 16 AWG Gray
Couldn't load pickup availability
Winged Wire Connector 18 to 10 AWG Yellow
Couldn't load pickup availability
Term-A-Nut Pigtail Connector 18 to 12 AWG
Couldn't load pickup availability
Porcelain Wire Connector 18 to 14 AWG
Couldn't load pickup availability
Term-A-Nut Ring Terminal Connector 22 to 12 AWG
Couldn't load pickup availability
Performance Plus Wire Connector 14 to 6 AWG
Couldn't load pickup availability
Porcelain Wire Connector 18 to 14 AWG
Couldn't load pickup availability
Term-A-Nut Ring Terminal Connector 22 to 12 AWG
Couldn't load pickup availability
Performance Plus Wire Connector 14 to 6 AWG
Couldn't load pickup availability
Product Description
• Moisture and corrosion resistant wire connections• Sealant provides 500 volts of insulation for every 1 mil of thickness
• Can be used in watertight boxes to further protect against condensation, ice formation, fumes and flooding
• The unique resin outer shell and modified silicone fill provide excellent protection against most chemical environments including ammonia, acids, salts and waste material
• Great in damp and wet areas, can be submersed but not continuously
Technical Specifications
| Item#: | DY20720050 |
|---|---|
| Type | Wire Nut |
| Wire Gauge | 14 (2 Wire) to 12 (4 Wire) AWG |
| Voltage Rating | 600V Maximum for Building Wire 1,000V Maximum in Signs and Fixtures |
| Color | Red |
| Temperature Range | 221 °F |
| Celcius Temperature Range | 105 C |
| Length | 1-3/4 " |
| O.D. | 13/16 " |
| Approvals | CSA C22.2 |
| Style | Water Tight Wire Nuts |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.605 lb |
