Home Anchors Wedge Type Stud Bolt Anchor SS 3/4 x 4-1/4"
Anchors

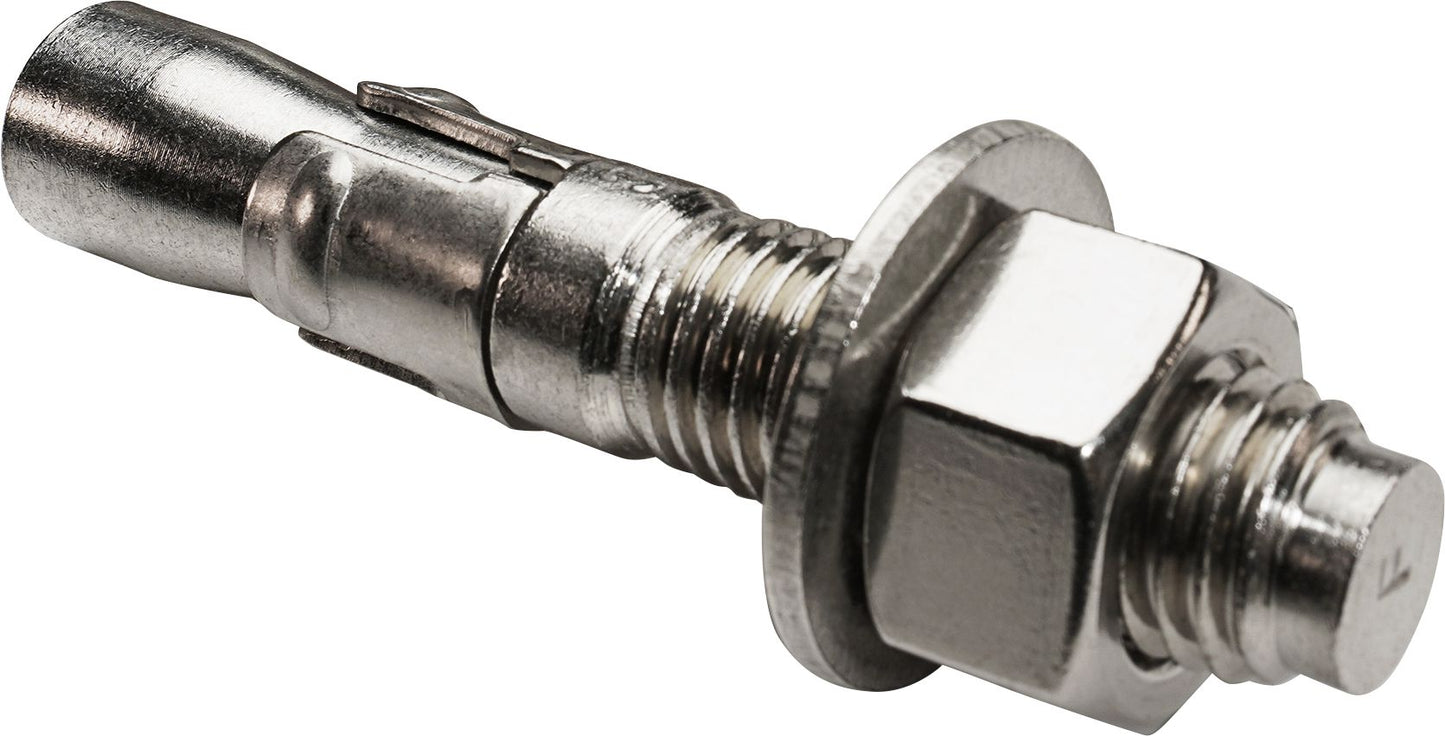

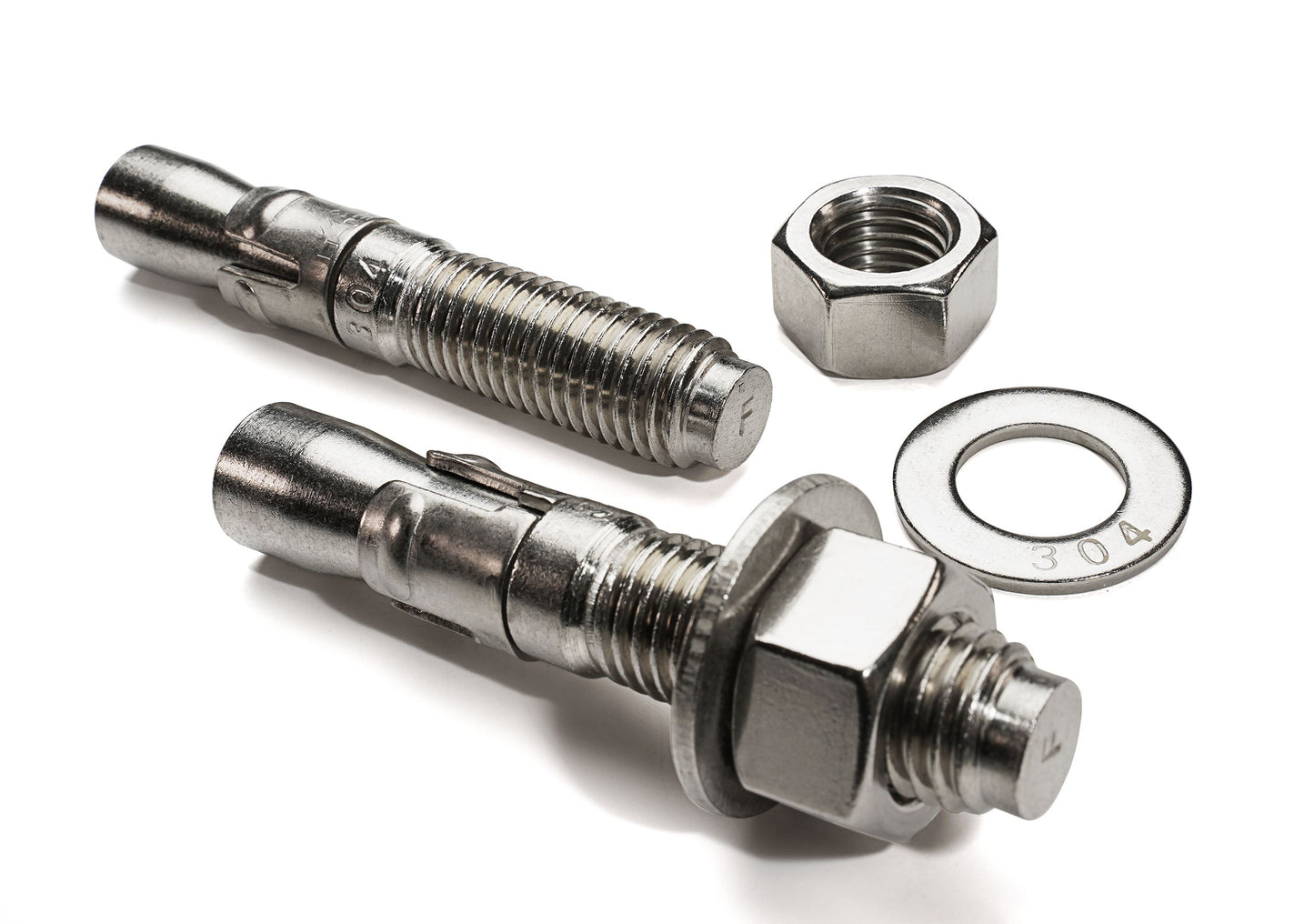

Wedge Type Stud Bolt Anchor, Stainless Steel, Plain Finish, 3/4 x 4-1/4"
(Pack of 2)

Item#: 91635

Kent Automotive

• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.

Read More
Check Availability

Frequently Bought Together


Double Expansion Shield Anchor Alloy Steel 5/16"

Item#: 84039

Sleeve Type Stud Bolt Anchor Steel 5/8 x 4-1/4"

Item#: 25219

Sealing-Type Blind Rivet Large Flange Head 1/8"

Item#: P61817

Hex Flange Bolt Grade 10.9 M10-1.25 x 35mm

Item#: 28694

Bumper Fascia Push-Type Retainer Nylon 18mm

Item#: KT12847

Miniature Incandescent Bulb 12V 2CP

Item#: P22266

Wedge Type Stud Bolt Anchor Steel 5/8 x 4-1/4"

Item#: 91607

Wedge Type Stud Bolt Anchor SS 1/4 x 1-3/4"

Item#: 91622

Wedge Type Stud Bolt Anchor Steel 5/8 x 6"

Item#: 84035

Product Description

• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.

Technical Specifications

Item#: 91635
Diameter 3/4 "
Length 4-1/4 "
Thread Length 2 "
Drill Size 3/4 "
Material Stainless Steel
Finish Plain
Type Wedge Anchor
Proof Test Load 6,800 lb

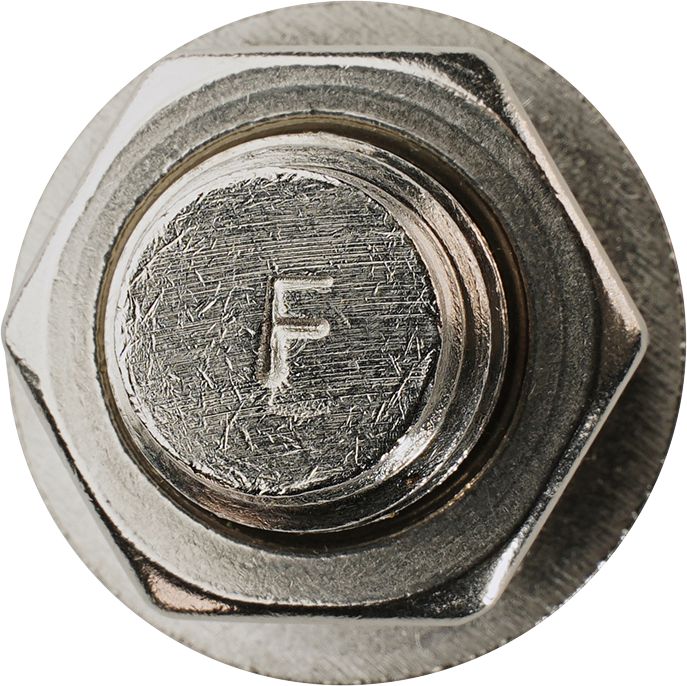

Length Identification Code F
Size 3/4X4-1/4 "
Minimum Embedment 3-1/4 "
UNSPSC #: 31162101
TAA Compliant: No
Weight: 1.31 lb
