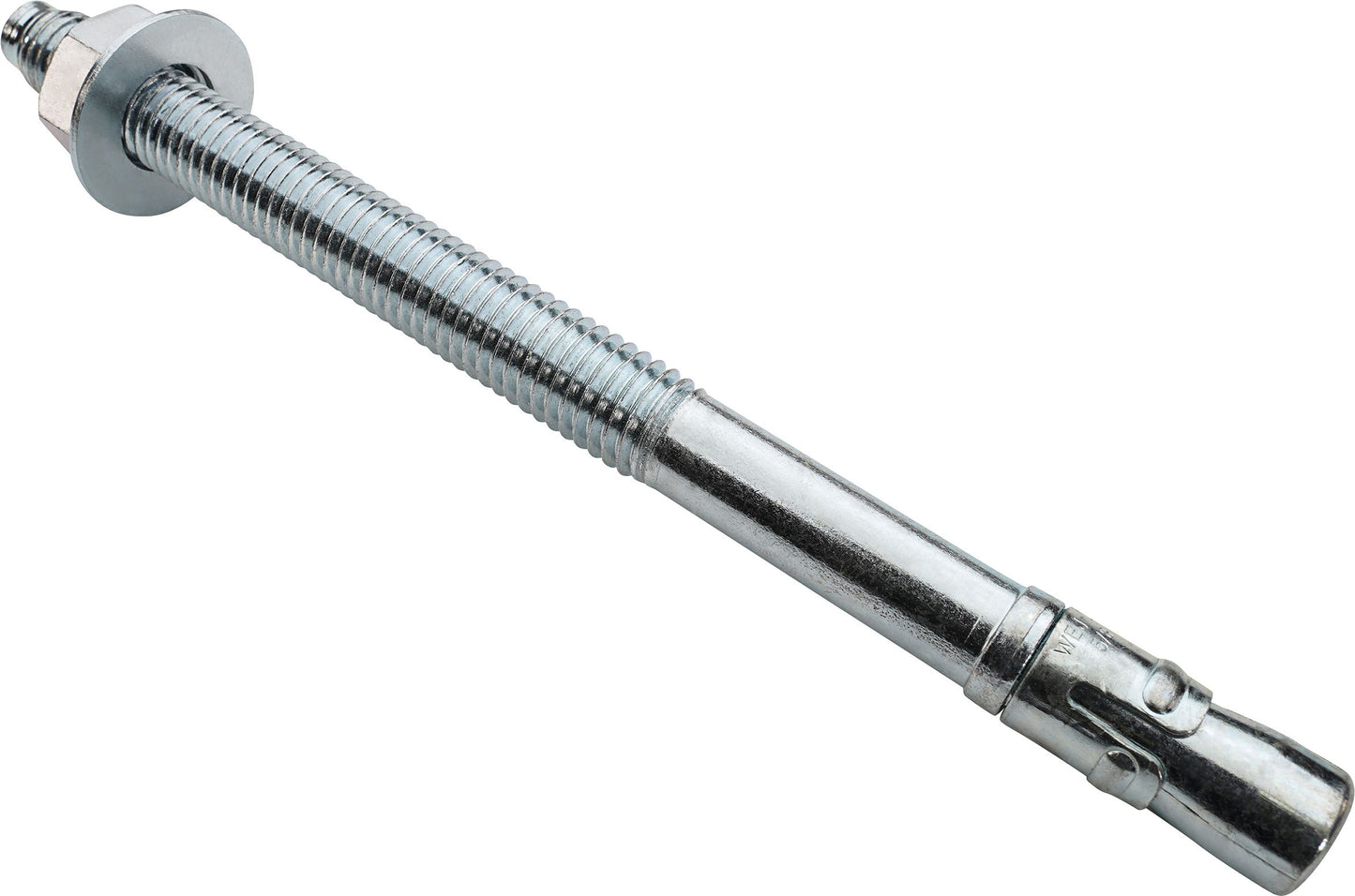

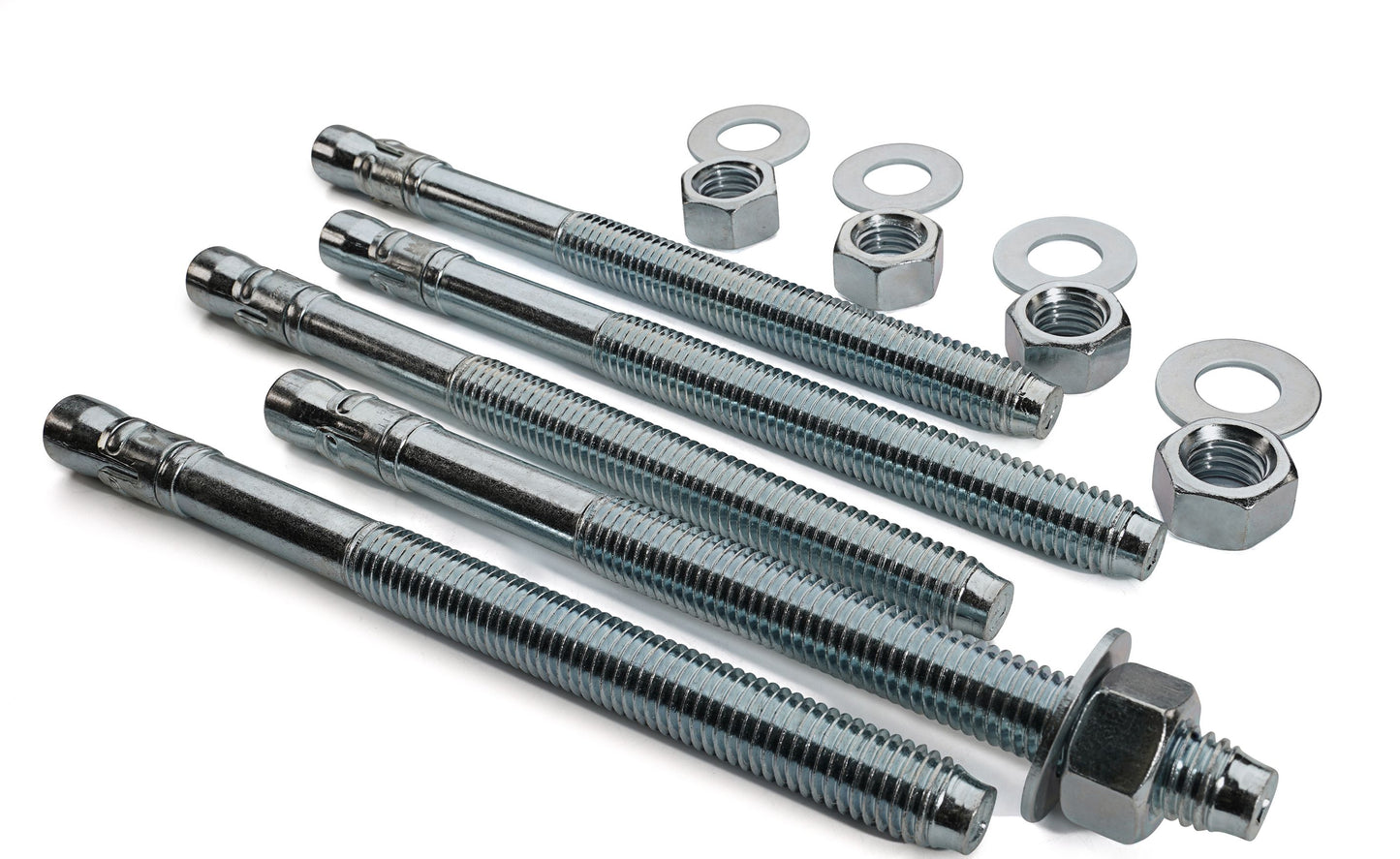

Wedge Type Stud Bolt Anchor Steel 5/8 x 8-1/2"
(Pack of
5.0)
• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Standard Self-Drilling Wallboard Anchor Kit 41Pcs
Couldn't load pickup availability
Masonry Anchor Assortment 700Pcs
Couldn't load pickup availability
Toggle Bolt Anchor Assortment 70Pcs
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 25mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 1/4 x 2-1/4"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 1/2 x 7"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 3/4 x 4-1/4"
Couldn't load pickup availability
Product Description
• Available in zinc-plated steel and stainless steel1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Technical Specifications
| Item#: | 91608 |
|---|---|
| Diameter | 5/8 " |
| Length | 8-1/2 " |
| Thread Length | 5 " |
| Drill Size | 5/8 " |
| Material | Carbon Steel |
| Finish | Bright Zinc |
| Type | Wedge Anchor |
| Proof Test Load | 4,800 lb |
| Length Identification Code | No |
| Size | 5/8X8-1/2 " |
| Minimum Embedment | 2-5/8 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | No |
| Weight: | 3.69 lb |
