Wire Rope Terminal, Marine Eye End, 3/16", Stainless Steel
(Pack of
2)
SKU:1440207 Item#: 1440207
Marine Eye End Fittings are designed and manufactured to meet the strict standards of the marine industry.
• 316 Stainless Steel
Frequently Bought Together
Wire Rope Terminal, Eye End, 1/8", Stainless Steel
Item#: 1440301
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 3/16", Stainless Steel
Item#: 1440231
$0.00
Couldn't load pickup availability

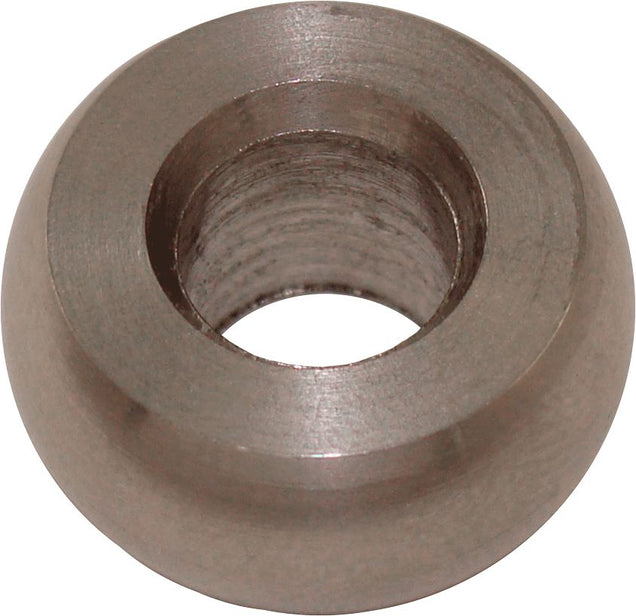

Wire Rope Terminal, Plain Ball, 3/32", Stainless Steel
Item#: 1440396
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 3/16", Stainless Steel
Item#: 1440231
$0.00
Couldn't load pickup availability

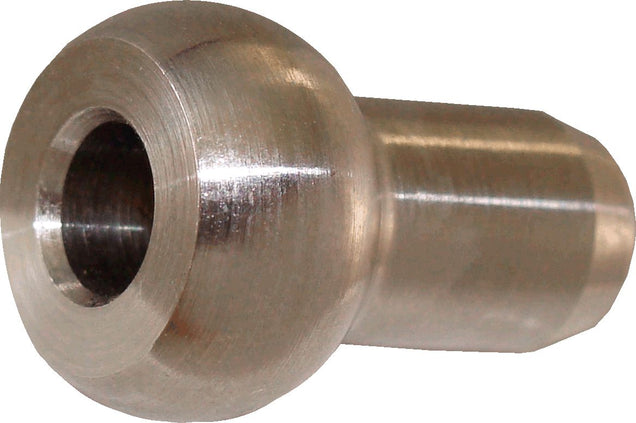

Wire Rope Terminal, Single Shank Ball, 1/16", Stainless Steel
Item#: 1440353
$0.00
Couldn't load pickup availability
Binder Chain Assembly, 25', 5/16", Carbon Strength Steel, 4700 lbs Limit
Item#: 1708258
$0.00
Couldn't load pickup availability
Binder Chain Assembly, 5/16", Carbon Strength Steel, 4700 lbs Limit
Item#: 1708257
$0.00
Couldn't load pickup availability
Binder Chain Assembly, 5/16", Carbon Strength Steel, 4700 lbs Limit
Item#: 1708256
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Item#: KT14296
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Item#: P27685
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Item#: P24252
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x7, 3/32", 920 lbs Breaking Strength
Item#: 1439290
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 1/8", 2,000 lbs Breaking Strength
Item#: 1439209
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 1/16", 480 lbs Breaking Strength
Item#: 1439713
$0.00
Couldn't load pickup availability
Product Description
Marine Eye End Fittings are designed and manufactured to meet the strict standards of the marine industry.• 316 Stainless Steel

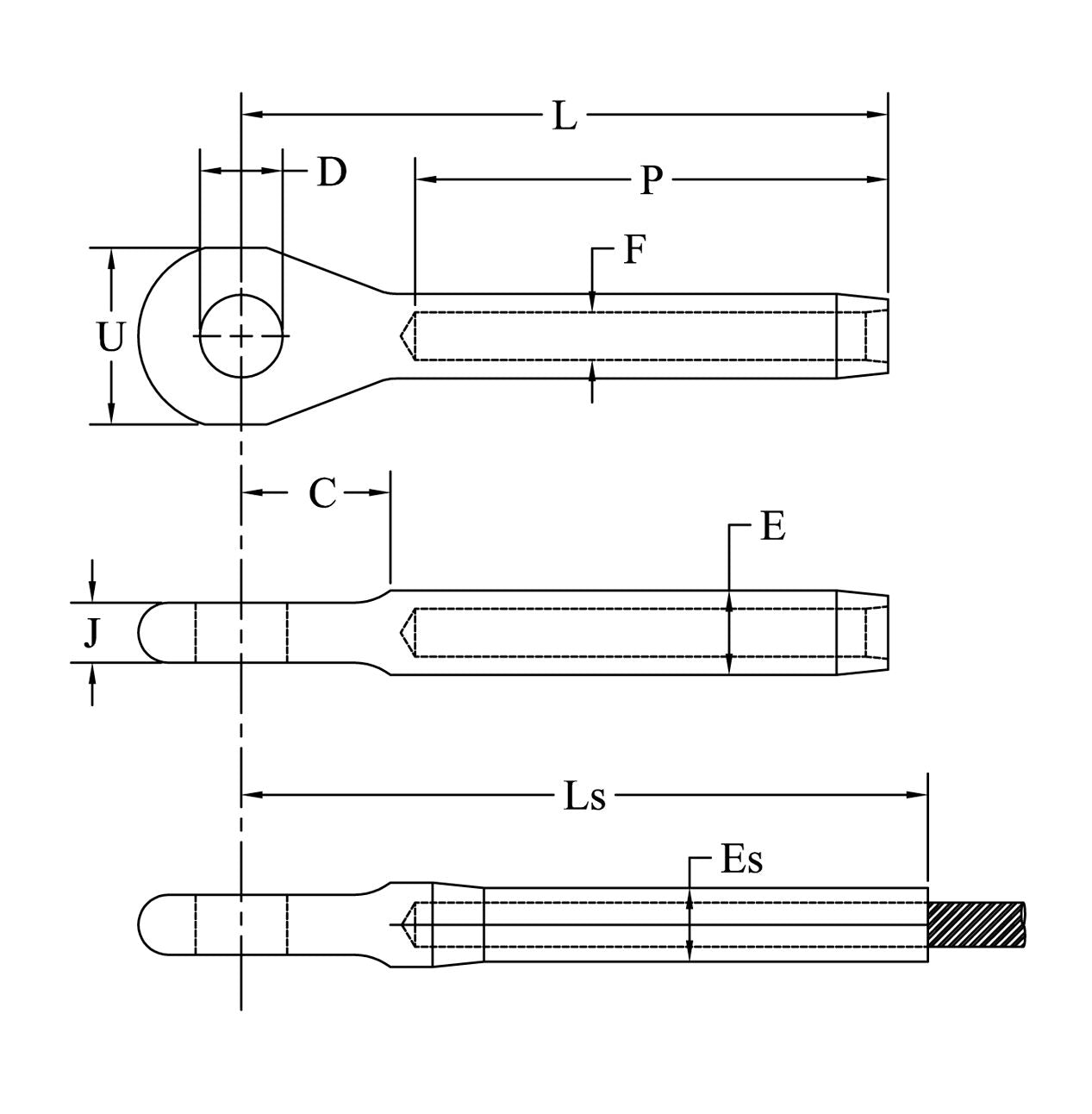

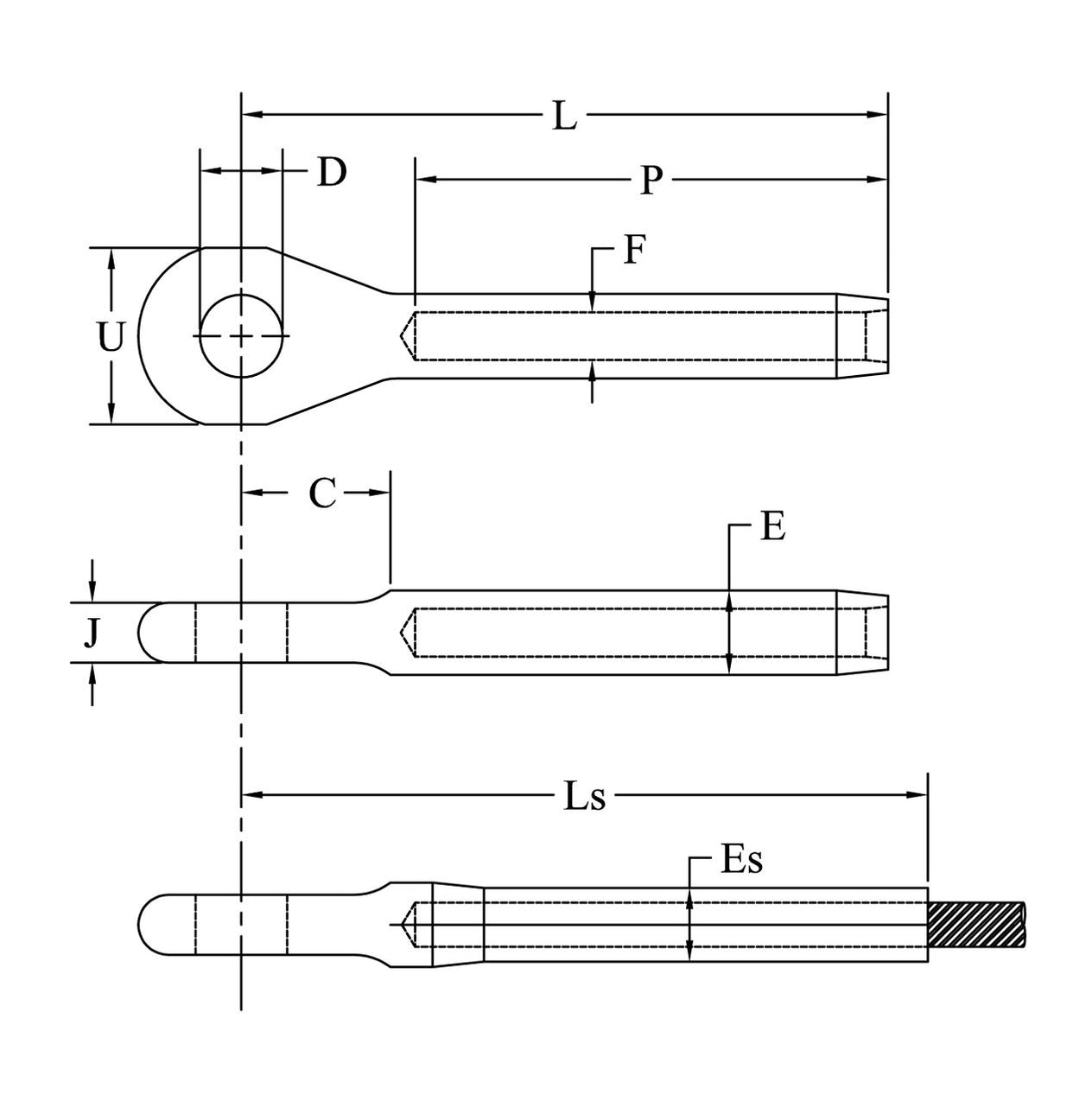

Technical Specifications
| Item#: | 1440207 |
|---|---|
| Manufacturer Model #: | EY1-6X |
| Type | Marine Eye End |
| Cable Diameter | 3/16 " |
| Material | Stainless Steel |
| C | 0.710 " |
| D | 0.389 " |
| E | 0.359 " |
| Es | 0.313 " |
| F | 0.203 " |
| J | 0.359 " |
| L | 2.750 " |
| Ls | 3.147 " |
| P | 2.000 " |
| U | 0.875 " |
| UNSPSC #: | 31162812 |
| TAA Compliant: | Yes |
