Wire Rope Terminal, Eye End, 9/32", Stainless Steel
(Pack of
1)
SKU:1440326 Item#: 1440326
• Stainless Steel
• Meets MIL-DTL-781
Frequently Bought Together
Wire Rope Terminal, Marine Eye End, 3/32", Stainless Steel
Item#: 1440330
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 1/16", Stainless Steel
Item#: 1440393
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 3/32", Stainless Steel
Item#: 1440336
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Stud, 5/16", 1/2-20 Left Hand Thread, Stainless St
Item#: 1440258
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Single Shank Ball, 3/32", Stainless Steel
Item#: 1440306
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Marine Eye End, 3/32", Stainless Steel
Item#: 1440330
$0.00
Couldn't load pickup availability
Rope Ratchet 150 Lb Safe Load 1/4" x 10'
Item#: 54521
$0.00
Couldn't load pickup availability
Eye Bolt with Nut 1/4" x 2" Long
Item#: 14466
$0.00
Couldn't load pickup availability
Caster Swivel with Brake Polyurethane Wheel
Item#: 1588622
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Item#: 1404768
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt
Item#: 1439352
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 1/4", 7,000 lbs Breaking Strength
Item#: 1439203
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x19, 1/8", 2,000 lbs Breaking Strengt
Item#: 1439246
$0.00
Couldn't load pickup availability
Product Description
• Stainless Steel• Meets MIL-DTL-781

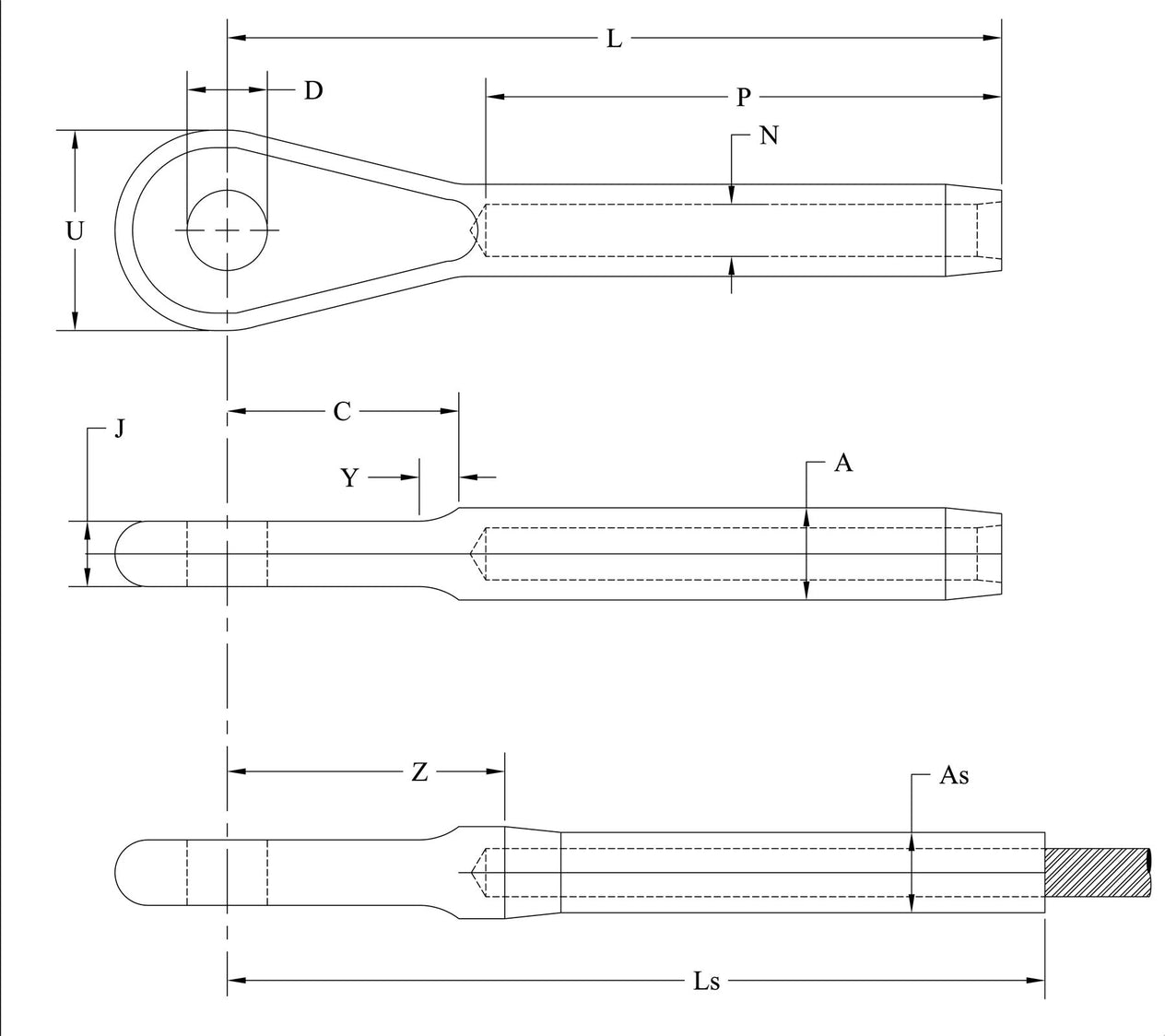

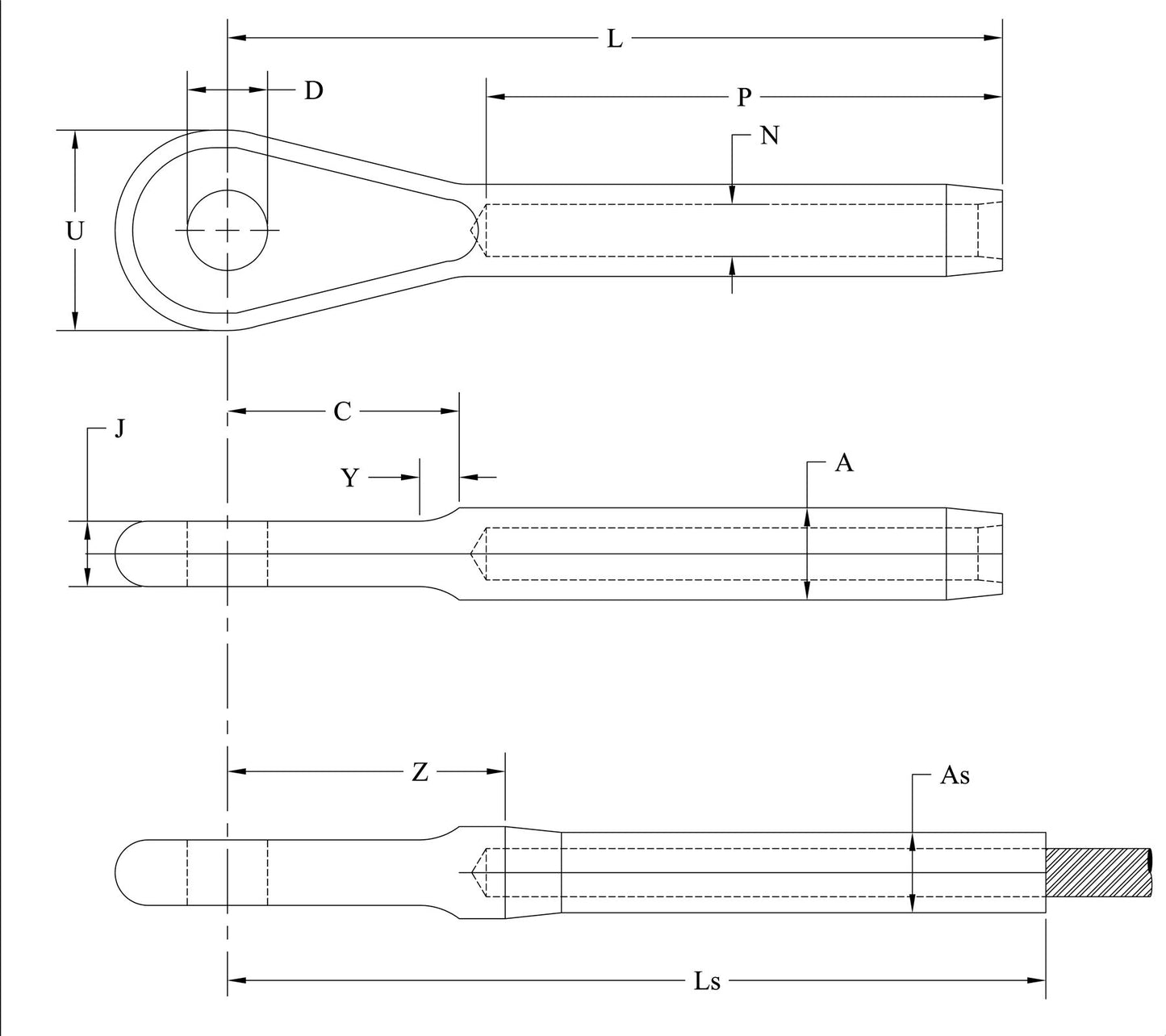

Technical Specifications
| Item#: | 1440326 |
|---|---|
| Manufacturer Model #: | MS20668-9 |
| Type | Eye End |
| Cable Diameter | 9/32 " |
| Material | Stainless Steel |
| A | 0.563 " |
| As | 0.500 (+0.000 -0.008) " |
| C | 1.257 " |
| D | 0.438 " |
| J | 0.322 " |
| L | 4.153 " |
| Ls | 4.512 " |
| N | 0.297 " |
| P | 2.761 " |
| U | 1.109 " |
| Y | 0.251 " |
| Z | 1.465 " |
| UNSPSC #: | 31162812 |
| TAA Compliant: | Yes |
