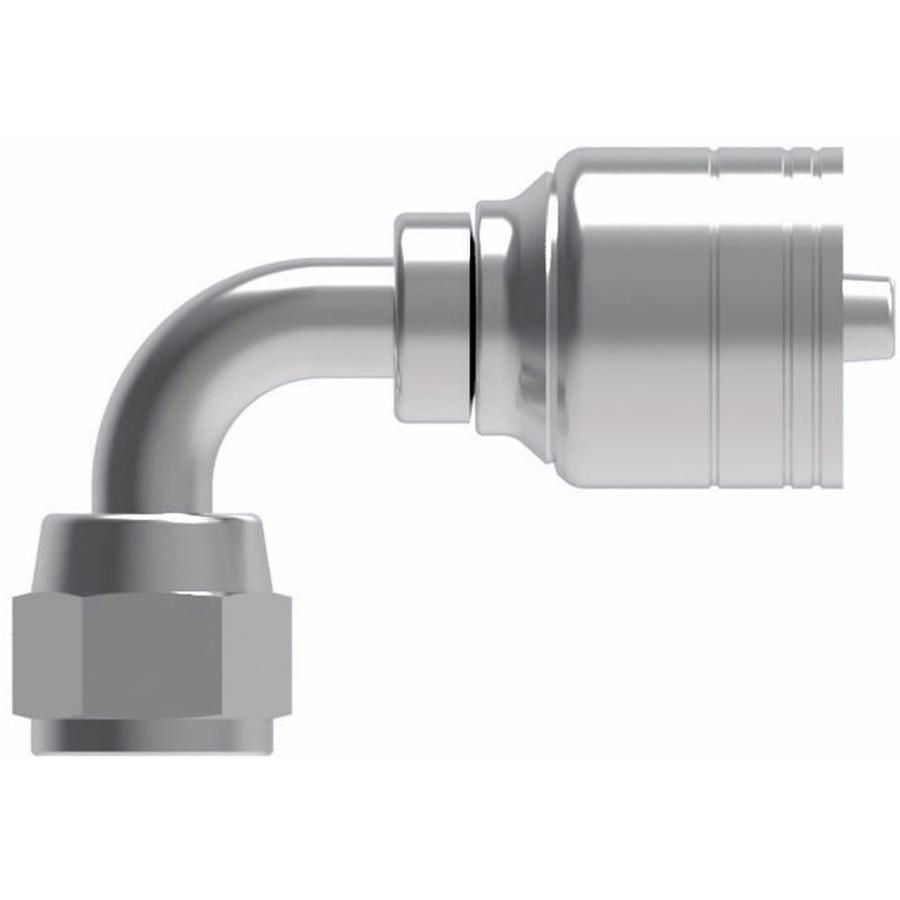

Z Series Crimp-On Elbow, Carbon Steel, Female JIC 37°, Flare 90°, 1/4" (-4) x 7/16-20 (-4)
(Pack of
1)
SKU:16643 Item#: 16643
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734742245
Item#: 1644500
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare 734773065
Item#: 1644498
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734733245
Item#: 1644489
Couldn't load pickup availability
8MQFF-8FB Quick Disconnect Couplers
Item#: 1641212
Couldn't load pickup availability
8MJ-8FJ/FB-LX Hydraulic Live Swivel
Item#: 1641134
Couldn't load pickup availability
8MJ-8BKHD Adapters
Item#: 1641128
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
Item#: P28910M01
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
Item#: KT14463
Couldn't load pickup availability
Ergonomic Blowgun 1/4"
Item#: 99942
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Item#: KT11580
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Item#: P15599
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Item#: KT14285
Couldn't load pickup availability
Product Description
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.Technical Specifications
| Item#: | 16643 |
|---|---|
| Manufacturer Series Number | Z Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Female |
| Fitting End Style | JIC 37 Degree Flare/SAE 45 Degree Flare |
| Fitting End Type | Swivel |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | 7/16-20 (-4) |
| Weatherhead No. | 04Z-664 |
| O.D. Tube Size | 1/4 |
| Size | (-4)X(-4) |
| Hex Size | 9/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.11 lb |
