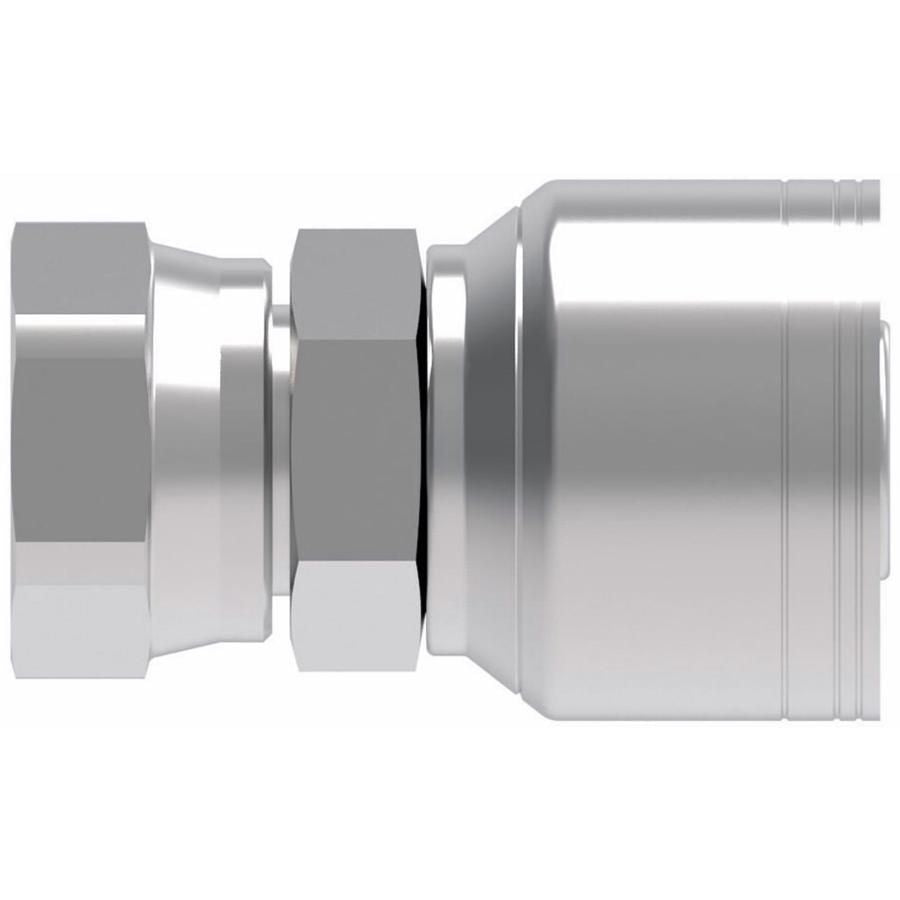

Z Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel JIS 30° Flare Parallel Thread, 1/4" x G-1/4-19
(Pack of
1)
SKU:20637 Item#: 20637
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
G as part of thread size is ISO designation for parallel thread
Frequently Bought Together
06Z-BC08- Hose End (perm) 1S/1R Str Male STC
Item#: 1179575
$0.00
Couldn't load pickup availability
06Z-BC68- Hose End (perm) 1S/1R 90 D Male STC
Item#: 1178409
$0.00
Couldn't load pickup availability
08Z-BC68- Hose End (perm) 1S/1R 90 D Male STC
Item#: 1174471
$0.00
Couldn't load pickup availability
Metric Female Flareless Sleeve 733204215
Item#: 1647577
$0.00
Couldn't load pickup availability
Industrial O-Ring Viton 5-1/8 x 5-3/8 x 1/8"
Item#: 57338
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 1/2 x 1/16"
Item#: P27050
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
Item#: P63942M01
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
Item#: P64107M01
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11948
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
Item#: 1500739
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Item#: P15600
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Item#: P85262
$0.00
Couldn't load pickup availability
Product Description
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.G as part of thread size is ISO designation for parallel thread
Technical Specifications
| Item#: | 20637 |
|---|---|
| Manufacturer Model #: | 04Z-04L |
| Manufacturer Series Number | Z Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Female |
| Fitting End Style | JIS 30 Degree Flare - Parallel Threads |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | G-1/4-19 (-4) |
| Weatherhead No. | 04Z-04L |
| O.D. Tube Size | 1/4 |
| Size | (-4)X(-4) |
| Hex Size | 3/4 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.17 lb |
