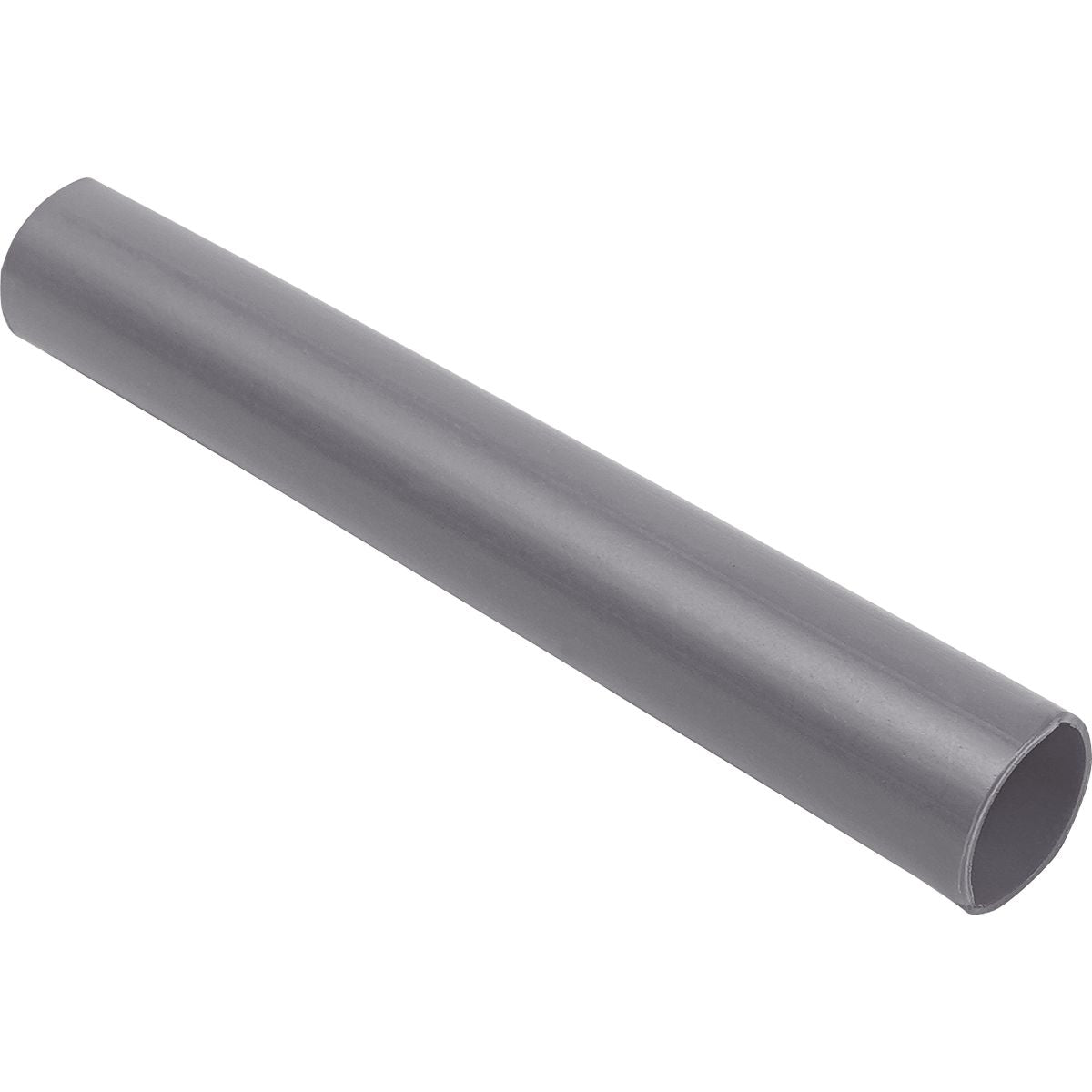

3/16 x 3'' Gray Thermapod Sealflex Heat Shrink Tube
(Pack of
10)
SKU:DY21880004 Item#: DY21880004
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 36CP
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 10 to 8 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 12 to 10 AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing 4 to 2/0 AWG Black
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 18 to 16 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 22 to 20 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 12 to 10 AWG Black
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21880004 |
|---|---|
| Style | Dual Wall |
| Wire Gauge Coverage | 20-18 AWG |
| Diameter | 3/16 " |
| Length | 3 " |
| Color | Gray |
| I.D. Before Shrinkage | 0.187 " |
| I.D. After Shrinkage | 0.06 " |
| Dielectric Strength | 500 V/mm |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | AMS-DTL - 23053/4, CL-1, UL E194625 |
| Description | Thermapod Sealflex Heat Shrink Tubing 3/16 x 3 Gray |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.02 lb |
