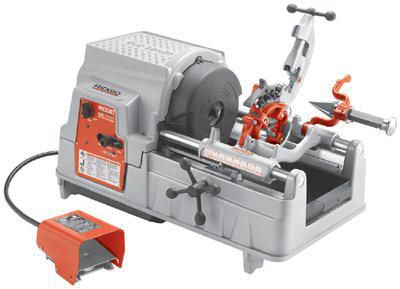

1/2"-2" NPT, 115V, 50/60Hz Threading Machine, 16/46/58 RPM
(Pack of
1)
SKU:1283380 Item#: 1283380
• Automatic chuck with four reversible forged jaws
• 3-speed transmission
• Large 1.75 gallon oil reservoir
• Large chip tray
• Generous top cover for keeping tools and fittings handy
• High clearance carriage
• Can be used with geared threader Model 141
• Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads
• Length gauge for quick, accurate cut-off
• Switches: FOR/OFF/REV and integral safety foot switch
• Reamer: 5-flute cone, RH, 1/8"-2"
• Oil Pump: Self-priming gerotor oil pump
• CSA
• UL
Frequently Bought Together
Bumper Cover Push-Type Retainer Nylon 18mm
Item#: 1579409
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Item#: P85253
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Item#: P85316
$0.00
Couldn't load pickup availability
Product Description
• Automatic chuck with four reversible forged jaws• 3-speed transmission
• Large 1.75 gallon oil reservoir
• Large chip tray
• Generous top cover for keeping tools and fittings handy
• High clearance carriage
• Can be used with geared threader Model 141
• Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads
• Length gauge for quick, accurate cut-off
• Switches: FOR/OFF/REV and integral safety foot switch
• Reamer: 5-flute cone, RH, 1/8"-2"
• Oil Pump: Self-priming gerotor oil pump
• CSA
• UL
Technical Specifications
| Item#: | 1283380 |
|---|---|
| Manufacturer Model #: | 91322 |
| Style | Model 535A Power Threading Machines |
| Die Head | 816/817 |
| Speed | 16, 46, 58 RPM |
| Pipe Capacity | 1/8 in (NPT) [Min], 2 in (NPT) [Max] |
| Phase | Single |
| Amperage | 20 A |
| Voltage | 115 V |
| Power Capacity | 2 HP |
| Frequency | 60 Hz |
| Model Number | 535A |
| UNSPSC #: | 27000000 |
| TAA Compliant: | Yes |
