1 Ton Transmission Jack
(Pack of
1)

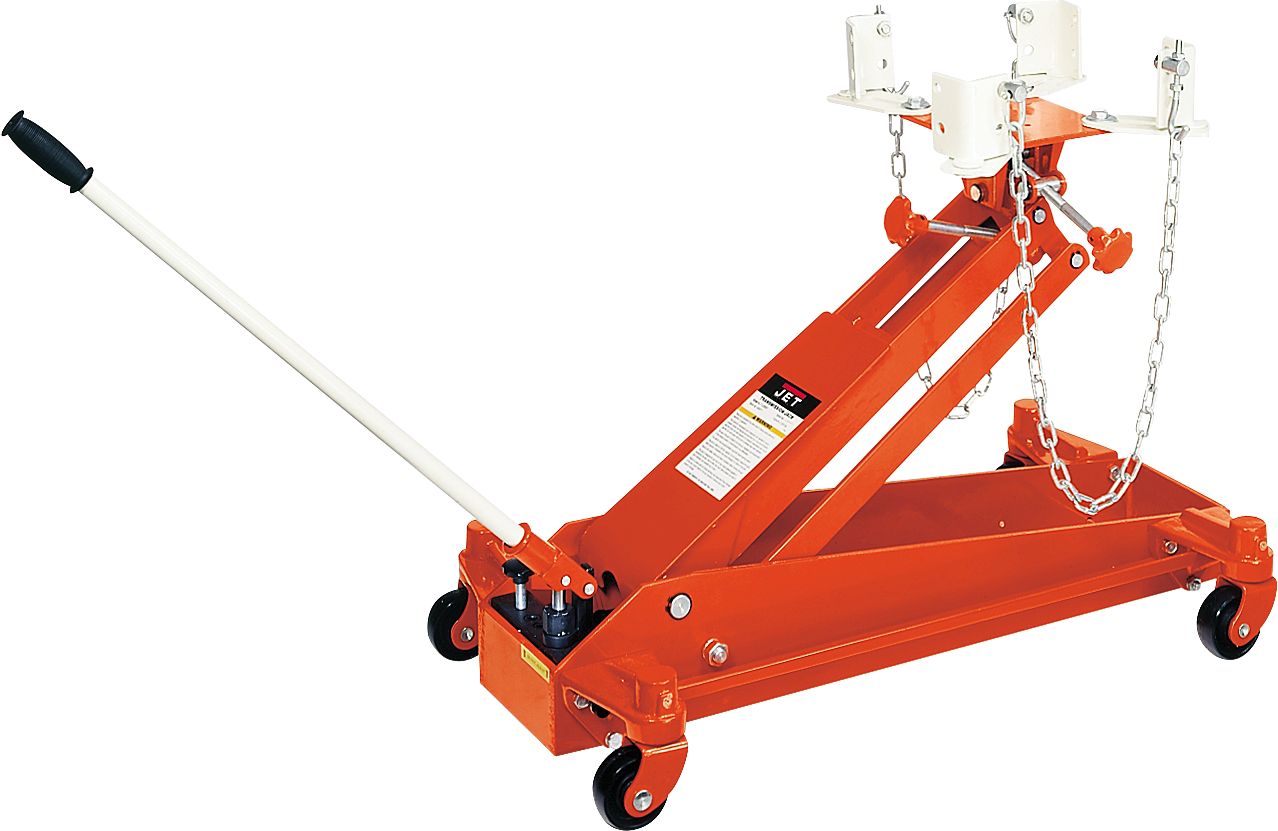

The JET TJ Transmission Service Jack is available in a 1 ton capacity. The JET TJ Transmission Service Jack features an automatic safety overload bypass system preventing the lifting of a load past its maximum capacity. The 360 degree ball bearing rear casters that are positioned for best load distribution and optimal maneuvering.
• Overload Protection valve prevents lifting loads past maximum capacity
• Top-Stroke release valve prevents cylinder extension beyond maximum height
• Saddle safety chains prevent the load form shifting
• Wide stance steel frame with reinforced side plates increases stability
• Quick lift hydraulic cylinder allows for rapid lifting without a load
• Fully adjustable saddle and corner brackets increase versatility
• Complies with ANSI/ASME PALD-10 standards
Product Description
The JET TJ Transmission Service Jack is available in a 1 ton capacity. The JET TJ Transmission Service Jack features an automatic safety overload bypass system preventing the lifting of a load past its maximum capacity. The 360 degree ball bearing rear casters that are positioned for best load distribution and optimal maneuvering.• Overload Protection valve prevents lifting loads past maximum capacity
• Top-Stroke release valve prevents cylinder extension beyond maximum height
• Saddle safety chains prevent the load form shifting
• Wide stance steel frame with reinforced side plates increases stability
• Quick lift hydraulic cylinder allows for rapid lifting without a load
• Fully adjustable saddle and corner brackets increase versatility
• Complies with ANSI/ASME PALD-10 standards
Technical Specifications
| Item#: | 1326935 |
|---|---|
| Type | Floor Style |
| Capacity | 1 ton (US) |
| Minimum Height | 8-1/2 " |
| Maximum Height | 30-1/2 " |
| Chassis Length | 14-1/8 " |
| Chassis Width | 7-3/4 " |
| UPC | 662755227950 |
| UNSPSC #: | 27000000 |
| TAA Compliant: | No |
