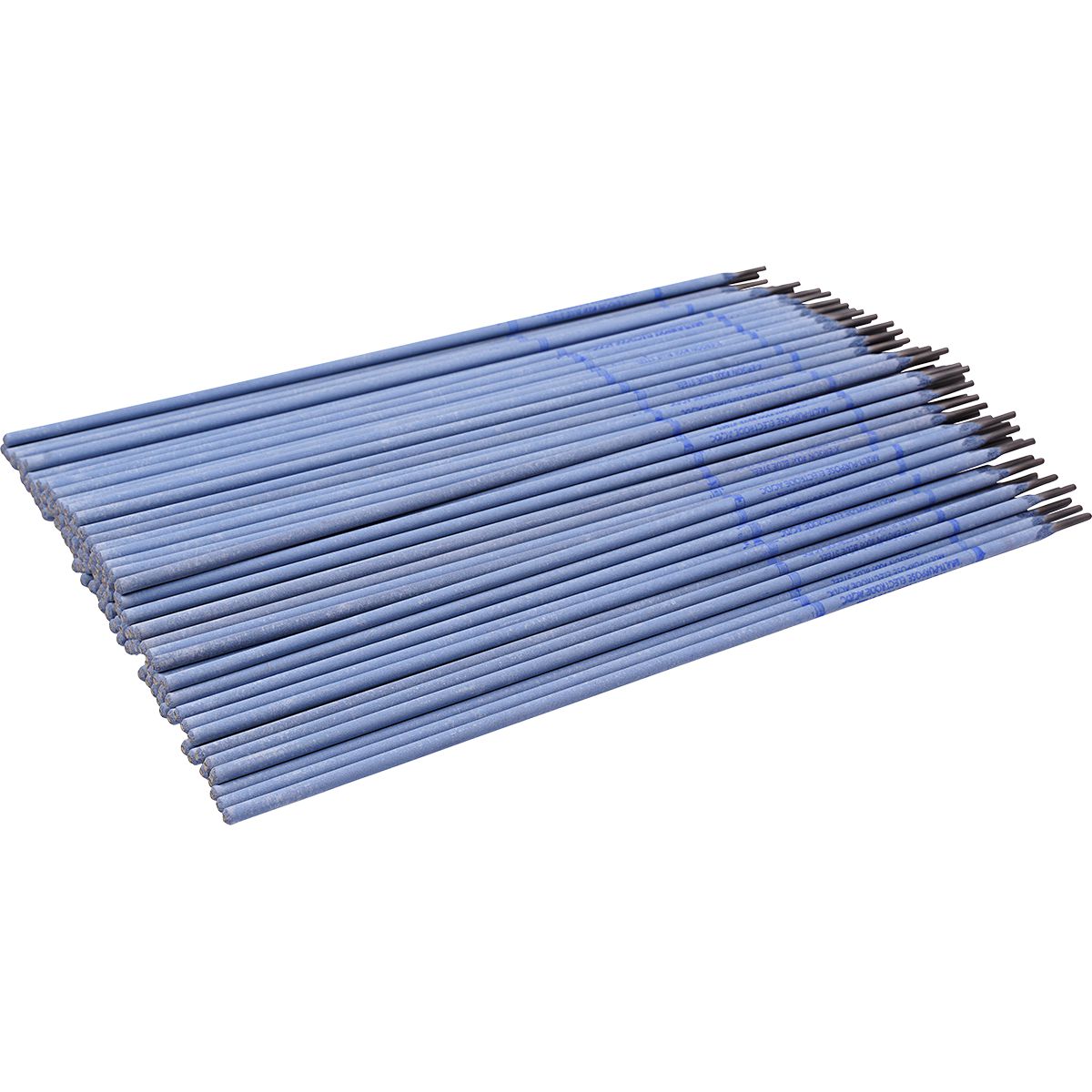

100 Blue Lightning Tough Duplex Alloy 1/8
(Pack of
1.0)
Blue Lightning is a tough duplex alloy designed for dissimilar welding applications of ferrous metals (except cast iron).
• AC Welding — special flux coating enhances operability on buzz boxes and DC inverter welders
• High strength — resistant to heat and corrosion, but still machinable
• High elongation — tough welds stand up to impact and shock
• Versatile — welds steel, stainless steel, manganese steel, HY steels, alloy steels, tool steels and nickel alloys to steel and dissimilar combinations of these alloys
• All-position welding and easy slag removal
• Tensile strength:– as deposited: 95,000 psi/655 MPa– work hardened: up to 130,000 psi/896 MPa
• Hardness:– as deposited: 93 Rb– work hardened: up to 35 Rc
• Elongation: 30%
• Machinability: Excellent
• Heat resistance: Good
• Corrosion resistance: Good
• Current: DCEP (DC+) or AC
Remove defective metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DCEP (DC+) current. Use a contact or a minimum arc length with a weave or stringer bead technique. Preheat should be used when the base metal requires it. For vertical-up welds reduce amperage slightly and use a modified weave technique. Chip the slag between multipass welds. Allow to cool slowly.
Frequently Bought Together
333 Dissimilar Steel MIG Welding Wire 0.035"
Couldn't load pickup availability
601Xl Fc Multi Steel Flux Core Mig Wire .035X10LB
Couldn't load pickup availability
X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 5/32
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 3/16X3X4
Couldn't load pickup availability
Heavy Duty Plastic Welding Rod Protecting Tube
Couldn't load pickup availability
Welding Container Drawer 19 - Welding PPE
Couldn't load pickup availability
161 Arc Prep Metal Working Electrode 1/8
Couldn't load pickup availability
704 Mild/Carbon Steel Stick Rod Electrode 1/8"
Couldn't load pickup availability
E7018 Mild/Carbon Steel Stick Electrode 1/8"
Couldn't load pickup availability
Product Description
Blue Lightning is a tough duplex alloy designed for dissimilar welding applications of ferrous metals (except cast iron).• AC Welding — special flux coating enhances operability on buzz boxes and DC inverter welders
• High strength — resistant to heat and corrosion, but still machinable
• High elongation — tough welds stand up to impact and shock
• Versatile — welds steel, stainless steel, manganese steel, HY steels, alloy steels, tool steels and nickel alloys to steel and dissimilar combinations of these alloys
• All-position welding and easy slag removal
• Tensile strength:– as deposited: 95,000 psi/655 MPa– work hardened: up to 130,000 psi/896 MPa
• Hardness:– as deposited: 93 Rb– work hardened: up to 35 Rc
• Elongation: 30%
• Machinability: Excellent
• Heat resistance: Good
• Corrosion resistance: Good
• Current: DCEP (DC+) or AC
Remove defective metal by grinding or gouging with Arc-Prep #161 electrode. Bevel heavy sections before welding. Use AC or DCEP (DC+) current. Use a contact or a minimum arc length with a weave or stringer bead technique. Preheat should be used when the base metal requires it. For vertical-up welds reduce amperage slightly and use a modified weave technique. Chip the slag between multipass welds. Allow to cool slowly.
Technical Specifications
| Item#: | EG10094002 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 1/8 " |
| Tensile Strength | 130,000 PSI |
| Elongation | 30 % |
| Hardness | 35 HRC |
| Polarity | DCEP |
| Total | 2 lb |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 2.17 lb |
