X-Tractalloy Extracting Welding Electrode Non-Conductive Flux 3/16
(Pack of
5.0)
A special application welding electrode designed for extracting broken bolts, studs and taps from threaded holes.
• Saves Time and Money – Reduces downtime and labor by getting parts back into service quickly
• Versatile – Will also remove broken screw extractors, taps and broken drill bits
• Strong – Tensile strength exceeds that of grades 2, 5, 8, 8.8 and 10.9 bolts and stainless steel
• IGNITOR TIP™ – For instant strike
• Nonconductive Flux – Ceramic-like coating insulates threads to prevent damage from welding
• All-position
• Tensile strength
– As deposited: 123,000 PSI/848 Mpa
– Work Hardened: 150,000 PSI/1034 Mpa
• Hardness: 21 Rc
• Elongation: 27%
• Impact Strength (Charpy, V-notch) – room temperature: 100 ft.-lbs./135 Joules
• Machinability: Good
• Current: AC or DC+
• Broken bolts, studs and screws (5/16'' and up)
• Broken taps and drills (5/16'' and up)
• Broken screw extractors like E-Z Outs™
• Works on any ferrous alloy including stainless, tool steel and nickel alloys
• Will remove iron or nickel based components from any metallic block or housing, including aluminum, brass and bronze
Rod Selection Guide:
• EG00420000 – Bolt Diameters 2-1/2'' – 4''
• EG00430000 – Bolt Diameters 1'' – 2-1/2''
• EG00440000 – Bolt Diameters 3/4'' – 1'
• EG00450000 – Bolt Diameters 1/2'' – 3/4''
• EG00460000 - Bolt Diameters 5/16'' – 1/2''
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together

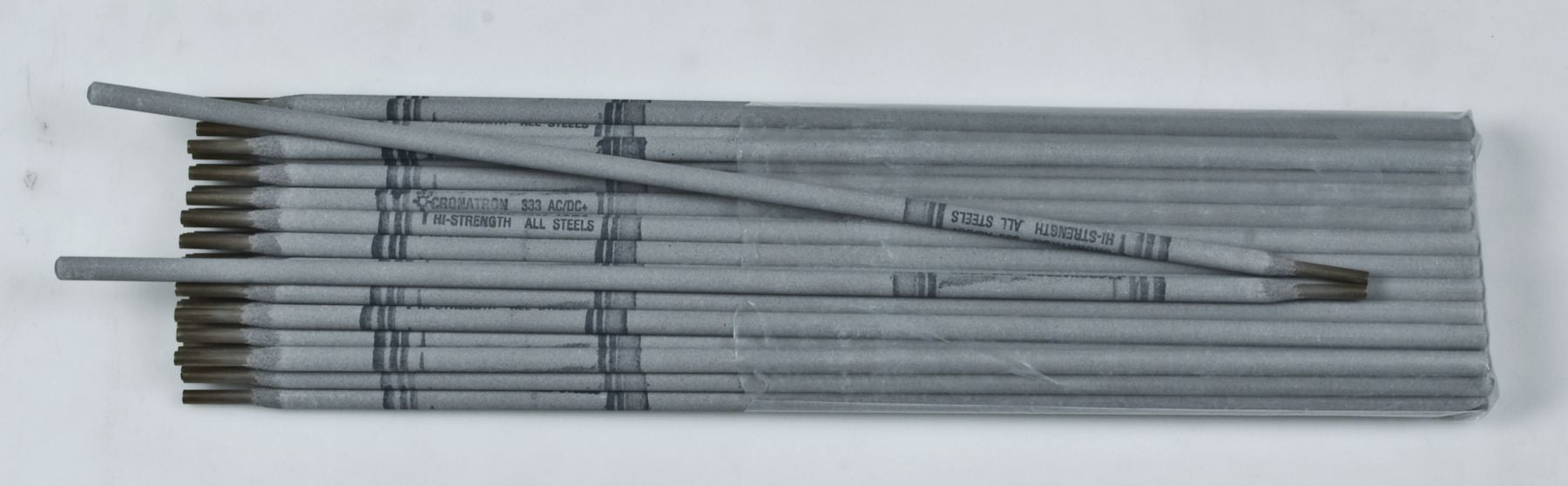

Cool Steel All Steel Alloy 3/32
Couldn't load pickup availability
333 Dissimilar Steel Stick Rod Electrode 5/32"
Couldn't load pickup availability
100 Blue Lightning Tough Duplex Alloy 1/8
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
1/8 on 1/4 Dimension I Single Pass Overlay
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
Heat Stick 1050F Degrees
Couldn't load pickup availability
321 Mild and Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
E7024Mild /Carbon Steel Stick Electrode 3/16"
Couldn't load pickup availability
211 Cast Iron TIG Wire 1/8"
Couldn't load pickup availability
Product Description
A special application welding electrode designed for extracting broken bolts, studs and taps from threaded holes.• Saves Time and Money – Reduces downtime and labor by getting parts back into service quickly
• Versatile – Will also remove broken screw extractors, taps and broken drill bits
• Strong – Tensile strength exceeds that of grades 2, 5, 8, 8.8 and 10.9 bolts and stainless steel
• IGNITOR TIP™ – For instant strike
• Nonconductive Flux – Ceramic-like coating insulates threads to prevent damage from welding
• All-position
• Tensile strength
– As deposited: 123,000 PSI/848 Mpa
– Work Hardened: 150,000 PSI/1034 Mpa
• Hardness: 21 Rc
• Elongation: 27%
• Impact Strength (Charpy, V-notch) – room temperature: 100 ft.-lbs./135 Joules
• Machinability: Good
• Current: AC or DC+
• Broken bolts, studs and screws (5/16'' and up)
• Broken taps and drills (5/16'' and up)
• Broken screw extractors like E-Z Outs™
• Works on any ferrous alloy including stainless, tool steel and nickel alloys
• Will remove iron or nickel based components from any metallic block or housing, including aluminum, brass and bronze
Rod Selection Guide:
• EG00420000 – Bolt Diameters 2-1/2'' – 4''
• EG00430000 – Bolt Diameters 1'' – 2-1/2''
• EG00440000 – Bolt Diameters 3/4'' – 1'
• EG00450000 – Bolt Diameters 1/2'' – 3/4''
• EG00460000 - Bolt Diameters 5/16'' – 1/2''
Technical Specifications
| Item#: | EG00420000 |
|---|---|
| Welding Process | Stick |
| Type | Electrode |
| Diameter | 3/16 " |
| Tensile Strength | 150,000 PSI |
| Elongation | 27 % |
| Hardness | 21 HRC |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.06 lb |
