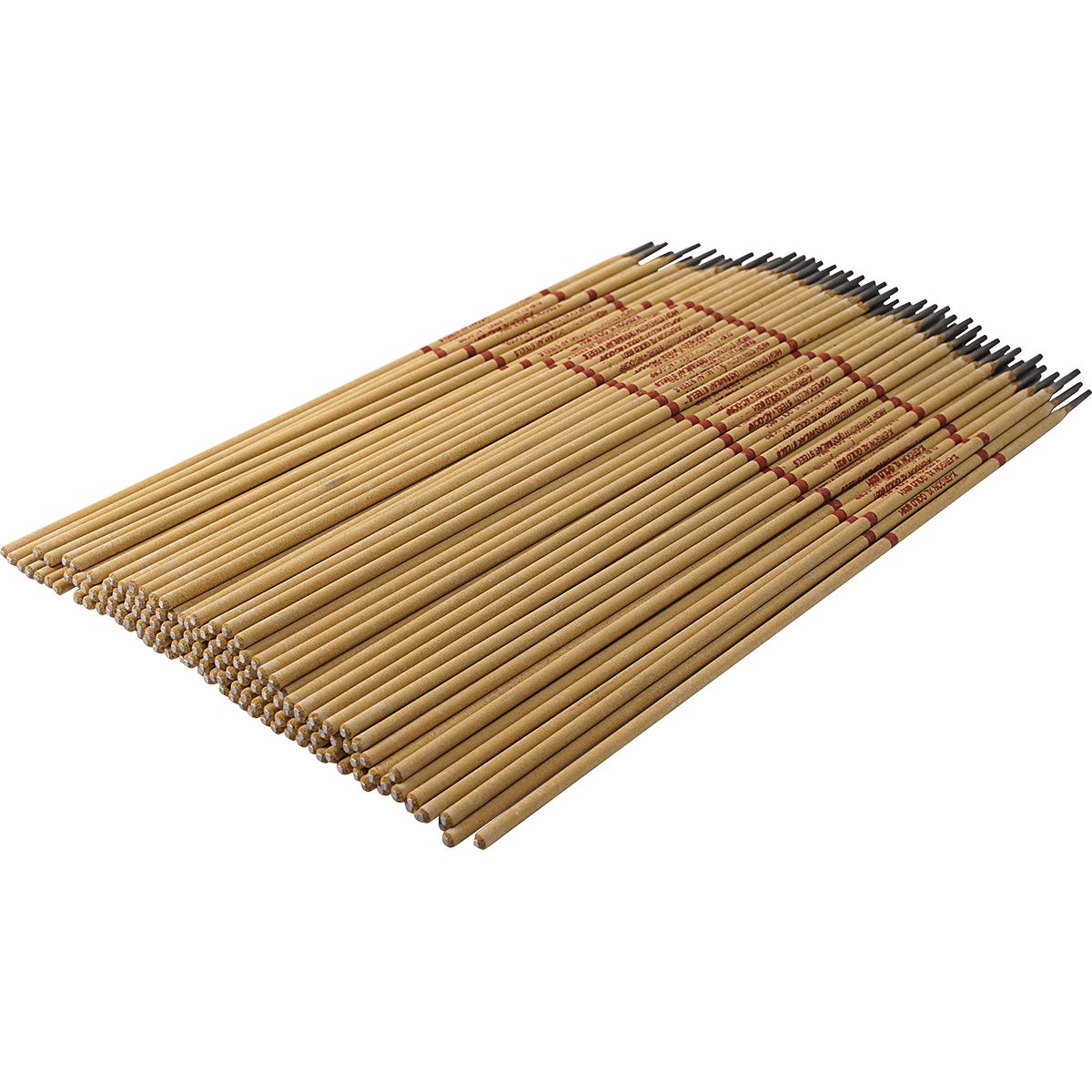

Xl Gold All Steel Electrode Joins Disimialar Metals Tensile Up To 186000 Elongation 32% Polarity Dcep/Ac 97Rb To 35Rc
(Pack of
5)
SKU:EG0015000G Item#: EG0015000G
The standard in all-steel maintenance welding electrodes. Has higher strength, excellent elongation and superior weldability. It is easier to use, the slag is self-lifting, and the deposit has tougher crack resistance. XL Gold™ is the latest generation in all-steel welding electrodes.
• Tougher Welds - Duplex alloy with maximum crack resistance
• Higher Tensile Strength – 186,000 PSI work hardened
• Improved welder appeal and slag removal with the exclusive Chem-A-Tized2 process
• Designed for welding difficult-to-weld steels like alloy steels and dissimilar types of steel
• All-position welding
• Tensile Strength: Up to 186,000 PSI work-hardened/1282 MPa, Up to 128,000 PSI as deposited
• Yield Strength: Up to 90,000 PSI/620 MPa
• Elongation: 32%
• Reduction of Area: 25%
• Machinability: Good with carbide tools
• Corrosion Resistance: Good Hardness: As deposited 97Rb
• Work-Hardened: 35 Rc
• Impact Resistance: 100 ft.-lbs. @ 75°F/25°C
• Heat Resistance: Good up to 750°F/399°C
• Current: DCEP (DC+) or AC
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Cool Steel All Steel Alloy 1/8
$0.00
Couldn't load pickup availability
707 Dissimilar Steel Stick Rod Electrode 3/16"
$0.00
Couldn't load pickup availability
Xl Gold Fc Dissimalar-Steel Flux Core Wire .045X33LBS
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .062" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 2lb
$0.00
Couldn't load pickup availability
Flint For Spring Loaded Trigger Torch Lighter
$0.00
Couldn't load pickup availability
Oxy-Therm Collet 3/8"
$0.00
Couldn't load pickup availability
Oxy-Therm Collet Grommet 1/4"
$0.00
Couldn't load pickup availability
Oxy-Therm System
$0.00
Couldn't load pickup availability
Product Description
The standard in all-steel maintenance welding electrodes. Has higher strength, excellent elongation and superior weldability. It is easier to use, the slag is self-lifting, and the deposit has tougher crack resistance. XL Gold™ is the latest generation in all-steel welding electrodes.• Tougher Welds - Duplex alloy with maximum crack resistance
• Higher Tensile Strength – 186,000 PSI work hardened
• Improved welder appeal and slag removal with the exclusive Chem-A-Tized2 process
• Designed for welding difficult-to-weld steels like alloy steels and dissimilar types of steel
• All-position welding
• Tensile Strength: Up to 186,000 PSI work-hardened/1282 MPa, Up to 128,000 PSI as deposited
• Yield Strength: Up to 90,000 PSI/620 MPa
• Elongation: 32%
• Reduction of Area: 25%
• Machinability: Good with carbide tools
• Corrosion Resistance: Good Hardness: As deposited 97Rb
• Work-Hardened: 35 Rc
• Impact Resistance: 100 ft.-lbs. @ 75°F/25°C
• Heat Resistance: Good up to 750°F/399°C
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG0015000G |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 3/32 " |
| Tensile Strength | 186,000 PSI |
| Yield Strength | 90,000 PSI |
| Elongation | 32 % |
| Hardness | 35 HRC |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.04 lb |
