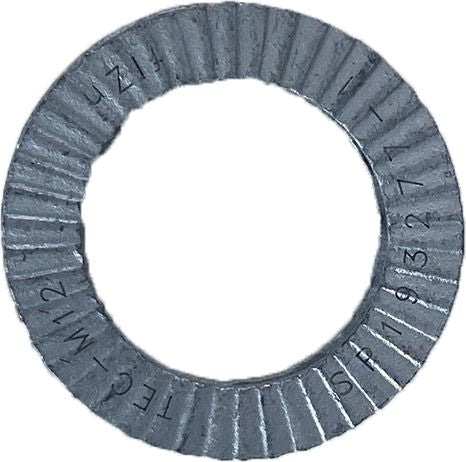

12mm Standard Anti-Vibration Serated Self Lock Washer
(Pack of
20)
SKU:DY03681200 Item#: DY03681200
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration
• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M6-1
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm
$0.00
Couldn't load pickup availability
DIN 6797A Star Lock Washer External Steel M6
$0.00
Couldn't load pickup availability
Lock Washer Non-Linking Steel 7/16"
$0.00
Couldn't load pickup availability
Lock Washer Non-Linking Steel 5/16"
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float Short #10-24
$0.00
Couldn't load pickup availability
1101 Aqueous Parts Cleaning Solution
$0.00
Couldn't load pickup availability
Cross Linked Primary Wire 16 AWG 100' Gray
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 7/16"
$0.00
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
$0.00
Couldn't load pickup availability
USS Flat Washer Low Carbon Steel 1/4"
$0.00
Couldn't load pickup availability
Met 24mm, Cross-Torque Wrench
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Met 24mm, Cross-Torque Wrench
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Product Description
• Self-locking design creates a wedge under the bolt head or nut that maintains clamp load, prevents unintentional loosening, and secures bolted joints even when exposed to dynamic loads and severe vibration• Vibration proof according to MIL-STD-1312-7/NASM-1312-7
• Resists loosening due to vibration more effectively than split lock washers or nylon insert lock nuts
• Pre-assembled glued pairs are easy to use and can be installed and removed with standard tools
• Extremely versatile - can be used with blind, through and counterbore holes
• Special Delta Protekt® coating is RoHS compliant and provides better corrosion resistance than traditional zinc
• For use with up to Grade 8, Class 12.9 fasteners
Technical Specifications
| Item#: | DY03681200 |
|---|---|
| Manufacturer Model #: | TEC-12 |
| Nominal Size | M12 |
| Type | Self-Locking Lock Washer |
| Material | Carbon Steel |
| I.D. | 0.51 " |
| O.D. | 0.77 " |
| Finish | Delta Protekt® |
| Thickness | 0.10 " |
| Quantity Per Package | 20.0000 |
| UNSPSC #: | 31161801 |
| TAA Compliant: | No |
| Weight: | 0.16 lb |
