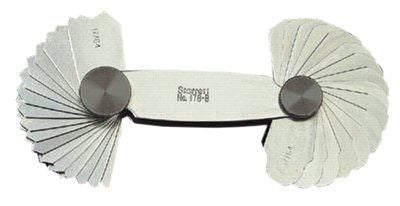

178A 30-Leaf Radius Gage
(Pack of
1)
SKU:1282772 Item#: 1282772
• Each gage has leaves for measuring both concave and convex radii, with each leaf stamped with the radius size
• Any one of the leaves can be securely locked in position by a locking device
• For laying out and checking radii of tools, dies, and patterns as used by die makers, machinists, screw machine operators, pattern makers, and mechanics
• Meets or exceeds accuracy and performance requirements of national and international standards and are traceable to the National Institute of Standards and Technology.
Product Description
• Each gage has leaves for measuring both concave and convex radii, with each leaf stamped with the radius size• Any one of the leaves can be securely locked in position by a locking device
• For laying out and checking radii of tools, dies, and patterns as used by die makers, machinists, screw machine operators, pattern makers, and mechanics
• Meets or exceeds accuracy and performance requirements of national and international standards and are traceable to the National Institute of Standards and Technology.
Technical Specifications
| Item#: | 1282772 |
|---|---|
| Manufacturer Model #: | 50664 |
| Type | Radius Gauge |
| Number of Blades | 30 |
| Measuring System | Inch |
| UNSPSC #: | 27111801 |
| TAA Compliant: | Yes |
