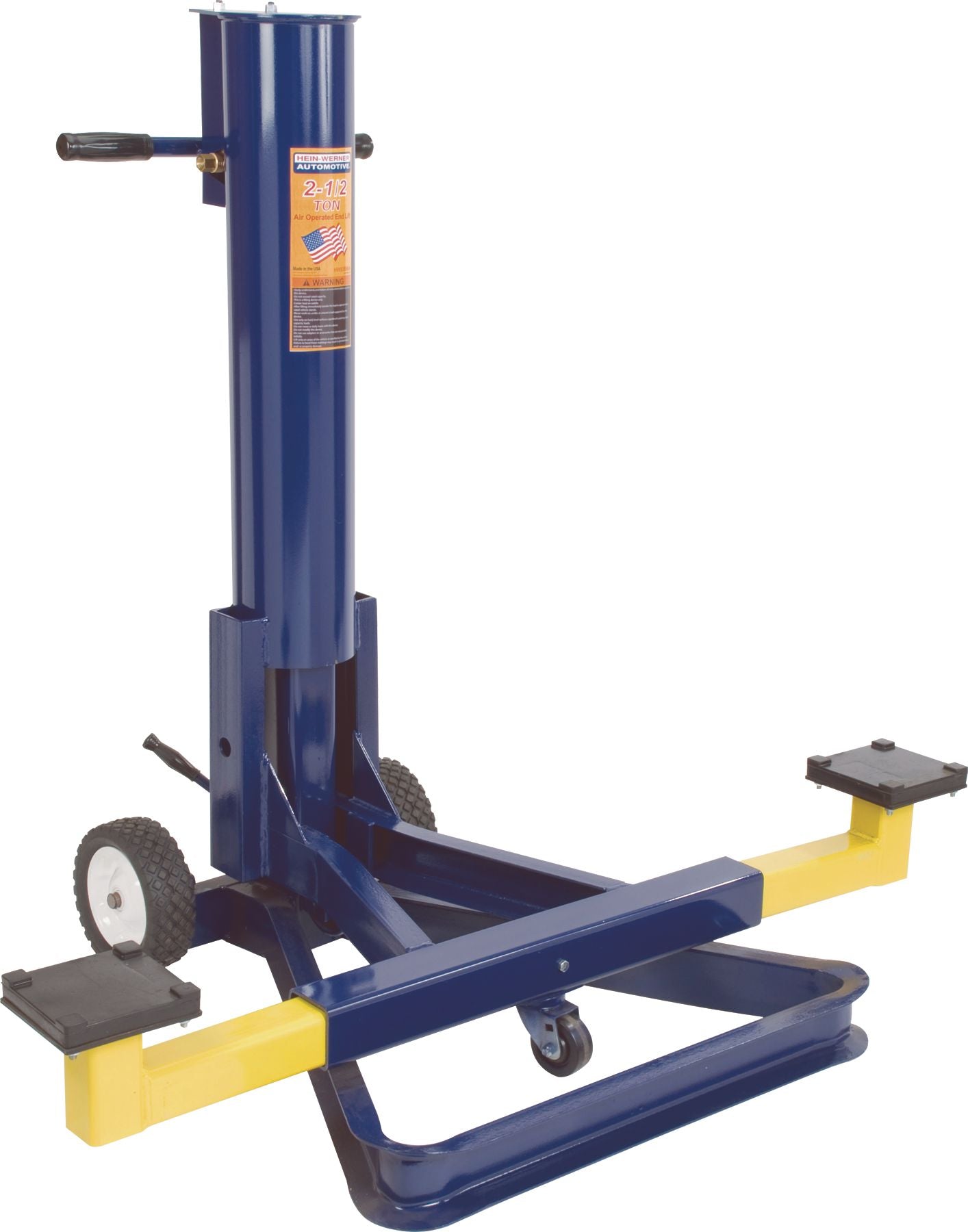

2 1/2 Ton End Lift
(Pack of
1)
SKU:ZZ26713I92 Item#: ZZ26713I92
• Three-way heavy duty brass air valve provides precision control when lifting or lowering a vehicle
• Safety latch design provides five different automatic safety lock positions to prevent unintentional lowering of load
• Adjustable lifting arm can be extended to desired position
• Front swivel caster wheel and two 8″ diameter rear tires
Frequently Bought Together
Air Distributor Defroster Push-Type Retainer
Item#: P85035
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
Item#: 1457513
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
Item#: P85218
$0.00
Couldn't load pickup availability
Product Description
• Three-way heavy duty brass air valve provides precision control when lifting or lowering a vehicle• Safety latch design provides five different automatic safety lock positions to prevent unintentional lowering of load
• Adjustable lifting arm can be extended to desired position
• Front swivel caster wheel and two 8″ diameter rear tires
Technical Specifications
| Item#: | ZZ26713I92 |
|---|---|
| Manufacturer Model #: | HW93696A |
| Type | End Lift |
| Capacity | 2-1/2 ton (US) |
| Minimum Height | 10 1/4 " |
| Maximum Height | 35 3/8 " |
| Distance (Lifting to Front of Saddle) | 19 " |
| Minimum Air Pressure for Rated Load | 200 PSI |
| Power Raise | 24 1/2 " |
| Saddle Spread | 23 1/4 - 41 1/4 " |
| UNSPSC #: | 27000000 |
| TAA Compliant: | Yes |
