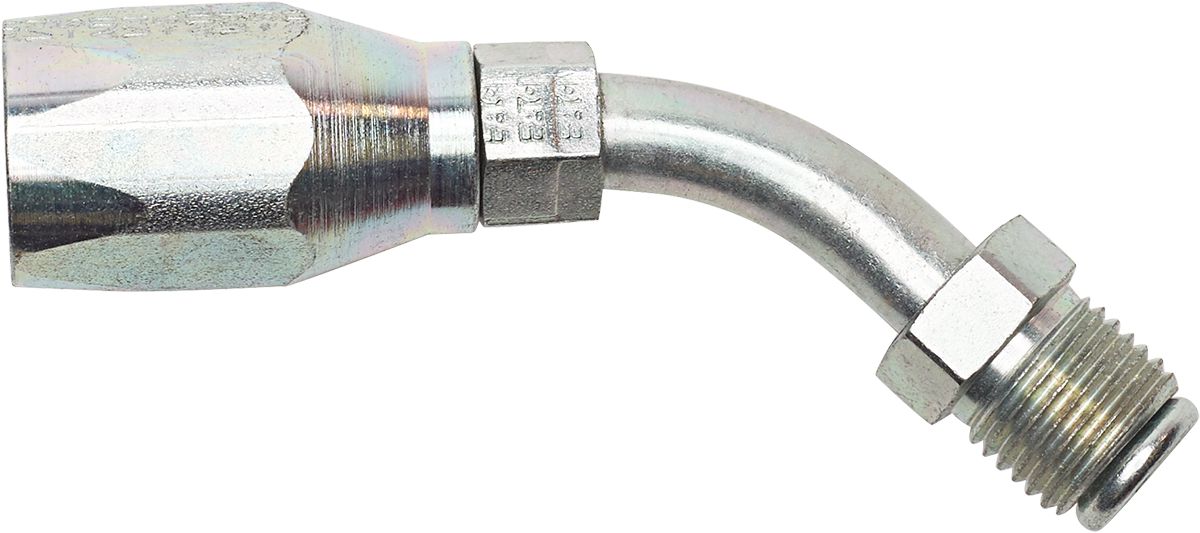

247N Series Male Inverted 30 ° Flare 45° 1/4 (-5)x 1/2-20 (-5) Field Attachable Fitting
(Pack of
1)
SKU:88490 Item#: 88490
Power Steering Fittings – Special SAE Male Inverted Flares
• Fittings are mandrelless-type
• For use with General-Purpose Truck and Hydraulic Hose H069 (Lawson 64470 Series)
Frequently Bought Together
Push-Type Retainer Nylon 16 x 19mm
Item#: 1468633
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Item#: KT13747
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Item#: KT14296
$0.00
Couldn't load pickup availability
Product Description
Power Steering Fittings – Special SAE Male Inverted Flares• Fittings are mandrelless-type
• For use with General-Purpose Truck and Hydraulic Hose H069 (Lawson 64470 Series)
Technical Specifications
| Item#: | 88490 |
|---|---|
| Manufacturer Model #: | 24705N-E45 |
| Manufacturer Series Number | 247 N Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 1/4 (-5) " |
| Dash Size | -5 |
| Gender | Male |
| Fitting End Style | Inverted 30 Degree Flare |
| Fitting End Type | Swivel |
| Fitting Angle | 45 Degrees |
| Fitting Dimension B (Working End) | 1/2-20 (-5) |
| O.D. Tube Size | 5/16 |
| Size | (-5)X(-5) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.13 lb |
