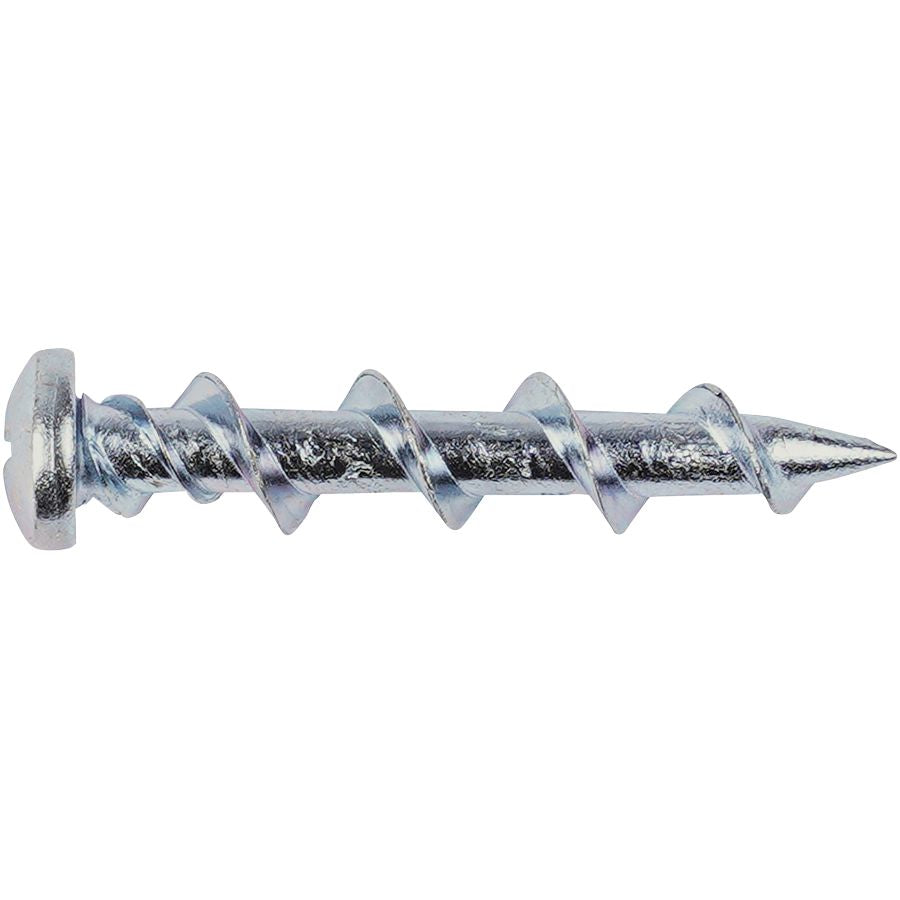

3/16X1-1/4 Chrome Ez-One Phillips Pan Hd
(Pack of
25.0)
• Unique multi-substrate anchor where the screw is the anchor
• High profile threads make fastening easy in wood, wallboard and masonry-based materials
• Deep cutting corkscrew-like threads provide a smooth entry and powerful hold
• When removed, leaves a much smaller hole than toggle bolts or expansion anchors
• Made of case-hardened steel and chrome plated for corrosion resistance
• Drills its own hole in wallboard and wood (use 3/16" masonry bit for anchoring into concrete, grout, brick, and plaster)
• Pull-Out Strength
– 5/8'' Wall Board: 135 lbs.
– 1/2'' Plywood: 255 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 700 lbs.
– Grout, 1'' Deep: 285 lbs.
• Shear Strength
– 5/8'' Wall Board: 360 lbs.
– 1/2'' Plywood: 600 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 1070 lbs.
– Grout, 1'' Deep: 825 lbs.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
E-Z Anchor Kit Steel 41Pcs
Couldn't load pickup availability
Conical Screw Anchor Kit Plastic 201Pcs
Couldn't load pickup availability
Drill 'N Drive Masonry Anchor Kit 102Pcs
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M10
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm
Couldn't load pickup availability
Drill 'N Drive Masonry Anchor Setting Tool
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 3/16 x 1-1/4"
Couldn't load pickup availability
Drill 'N Drive Anchor Masonry Anchor Drill Bit
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Product Description
• Unique multi-substrate anchor where the screw is the anchor• High profile threads make fastening easy in wood, wallboard and masonry-based materials
• Deep cutting corkscrew-like threads provide a smooth entry and powerful hold
• When removed, leaves a much smaller hole than toggle bolts or expansion anchors
• Made of case-hardened steel and chrome plated for corrosion resistance
• Drills its own hole in wallboard and wood (use 3/16" masonry bit for anchoring into concrete, grout, brick, and plaster)
• Pull-Out Strength
– 5/8'' Wall Board: 135 lbs.
– 1/2'' Plywood: 255 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 700 lbs.
– Grout, 1'' Deep: 285 lbs.
• Shear Strength
– 5/8'' Wall Board: 360 lbs.
– 1/2'' Plywood: 600 lbs.
– Concrete, 4,000 PSI, 1'' Deep: 1070 lbs.
– Grout, 1'' Deep: 825 lbs.
Technical Specifications
| Item#: | DY09816000 |
|---|---|
| Diameter | 3/16 " |
| Length | 1-1/4 " |
| Type | Screw Anchor |
| Material | Carbon Steel |
| Finish | Chrome Plated |
| Drive | Phillips |
| Head Style | Pan |
| Drive Style | Phillips |
| UNSPSC #: | 31162104 |
| TAA Compliant: | No |
| Weight: | 0.19 lb |
