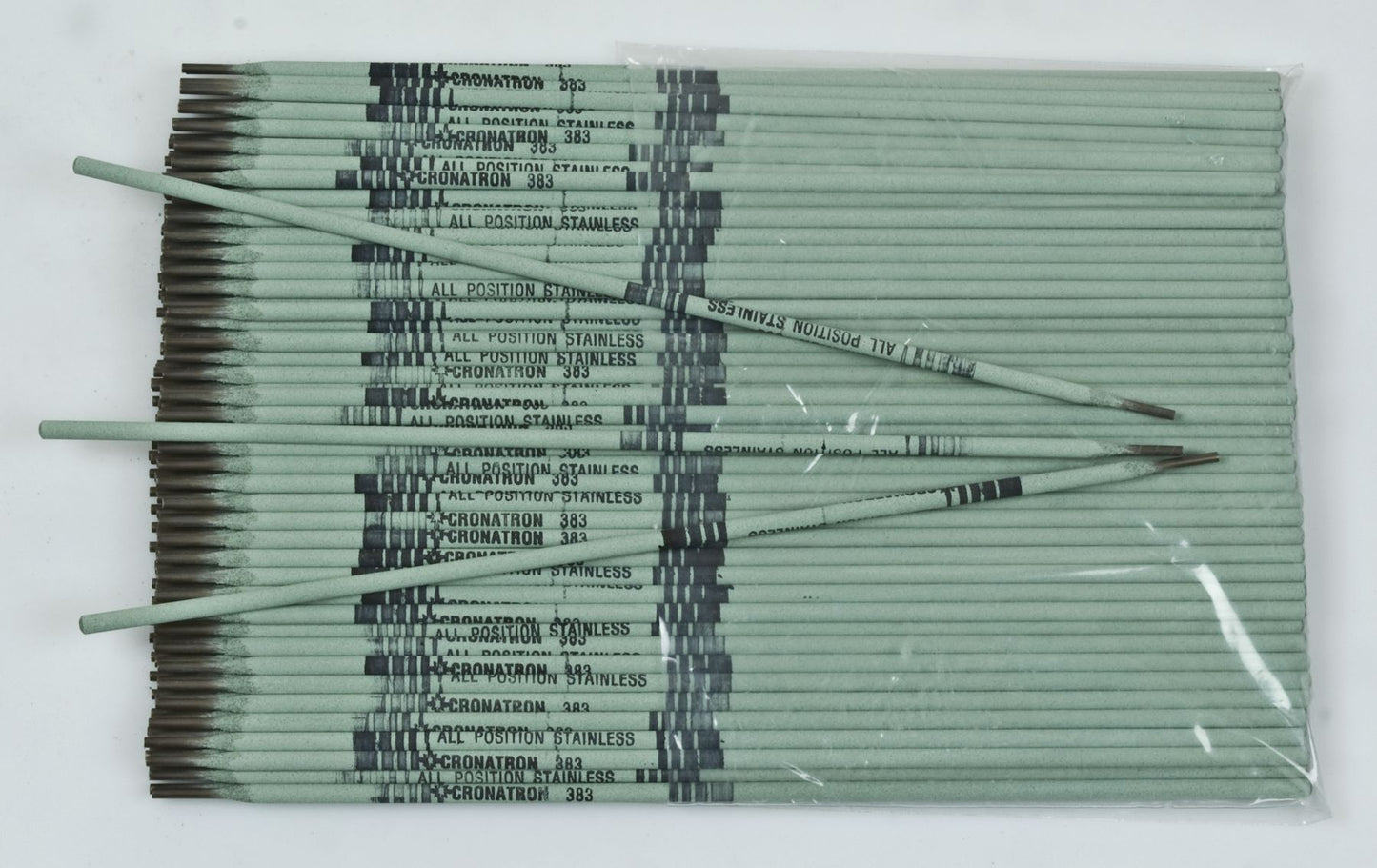

383 Stainless Steel Stick Rod Electrode, Flux Coated, 50 to 70 Amps, 35% Elongation, DCRP/AC Polarity, 3/32"
(Pack of
5)
SKU:CW5172 Item#: CW5172
Smooth-running, all-position alloys for joining the most common 200 and 300 Series stainless steel. Joins dissimilar grades of stainless including Series 200, 301, 302, 303, 304, 305 and 308 stainless, and CF-8, CF-3, CF-20 and HF castings.
Superior Advantages
• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSI
Elongation: 35%
Polarity: AC or DC Reverse
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
377 Stainless Steel Stick Rod Electrode 3/32"
$0.00
Couldn't load pickup availability
383 Stainless Steel MIG Welding Wire 0.035"
$0.00
Couldn't load pickup availability
777 Stainless Steel Stick Rod Electrode 3/32"
$0.00
Couldn't load pickup availability
Oxygen Safety Cap Heavy Duty
$0.00
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
$0.00
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 3/32"
$0.00
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 3/16"
$0.00
Couldn't load pickup availability
E71T-11 Mild/Carbon Steel MIG Welding Wire 0.035" 10lb
$0.00
Couldn't load pickup availability
Product Description
Smooth-running, all-position alloys for joining the most common 200 and 300 Series stainless steel. Joins dissimilar grades of stainless including Series 200, 301, 302, 303, 304, 305 and 308 stainless, and CF-8, CF-3, CF-20 and HF castings.Superior Advantages
• Minimal carbide precipitation
• Excellent corrosion and heat resistance
• All-position welding reduces the need to dismantle equipment
• Easy slag removal saves time
Tensile Strength: 80,000 PSI
Elongation: 35%
Polarity: AC or DC Reverse
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Technical Specifications
| Item#: | CW5172 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/32 " |
| Tensile Strength | 80,000 PSI |
| Elongation | 35 % |
| Base Metal | Stainless Steel |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.5 lb |
