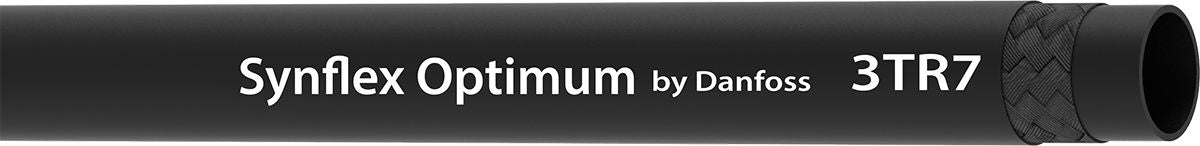

3TR7, Hydraulic Hose, 1 Textile Braid, 5/16 (-5) " I.D., 250' Length, 2,550 PSI, SAE 100R7
(Pack of
250)
SKU:1677583 Item#: 1677583
• Agency Rating: 100R7
• Fittings Certified: 4TA Series, 1A/Z series with sleeve and 901/902 series
• Construction:
– Inner Tube: Nylon
– Reinforcement: One textile braid
– Cover: Polyurethane
• Temperature Range:
– Oil-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +66°C)
• Application Notes: Recommended for agriculture, horticulture, chemical transfer, foam systems, food processing, forestry delimber, general construction, general hydraulic systems , lubrication systems, marine steering, utility vehicles and pickers, rescue apparatus/tools and water jetter/sewer
Frequently Bought Together
3TR7 Hydraulic Thermoplastic Hose 0.33" x 50'
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.49" x 50'
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.43" x 50'
Couldn't load pickup availability
08Z-BC08- Hose End (perm) 1S/1R Str Male STC
Couldn't load pickup availability
T-400-40C
Couldn't load pickup availability
06Z-BC66- Hose End (perm) 1S/1R 90 D Male STC
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
3TR8 Hydraulic Thermoplastic Hose 0.59" x 50'
Couldn't load pickup availability
3TR18CT Hydraulic Thermoplastic Hose 0.58" x 50'
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.57" x 250'
Couldn't load pickup availability
Product Description
• Agency Rating: 100R7• Fittings Certified: 4TA Series, 1A/Z series with sleeve and 901/902 series
• Construction:
– Inner Tube: Nylon
– Reinforcement: One textile braid
– Cover: Polyurethane
• Temperature Range:
– Oil-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +66°C)
• Application Notes: Recommended for agriculture, horticulture, chemical transfer, foam systems, food processing, forestry delimber, general construction, general hydraulic systems , lubrication systems, marine steering, utility vehicles and pickers, rescue apparatus/tools and water jetter/sewer
Technical Specifications
| Item#: | 1677583 |
|---|---|
| Manufacturer Model #: | 3TR7-05-250BX |
| Type | Thermoplastic Hose |
| Category / Performance | Constant Pressure |
| Industry Rating 1 | SAE 100R7 |
| Manufacturer Series Number | 3TR7 |
| Manufacturer Series Name | Synflex |
| Dash Size | -5 |
| Working Pressure | 2,550 PSI |
| Burst Pressure | 10,000 PSI |
| Inner Tube Material | Nylon |
| Hose Reinforcement | 1 Textile Braid |
| Hose Cover Material | Non-Stick Polyurethane 3TR7 Perforated |
| Fitting Series | 4TA Series, 1A/Z Series with Sleeve and 901/902 Series |
| Temperature | Oil Basedluids = -40F to +212F / Water Basedluids = -40F to +150 F |
| Color | Black |
| Size | 5/16 (-5) " |
| Length | 250 ft |
| SynFlex Part No. | 3TR7-05-250BX |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
