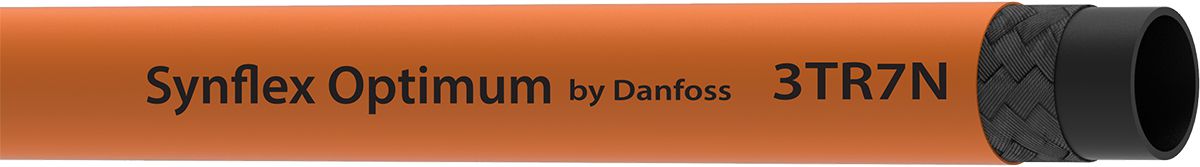

3TR7N, Hydraulic Hose, 1 Textile Braid, 1/5 (-3) " I.D., 50' Length, 3,050 PSI, SAE 100R7
(Pack of
50)
Depend on the Single Braid Synflex Optimum Thermoplastic Hose for performance you can trust in the toughest environments. Engineered with an abrasion-resistant polyurethane cover and a lightweight design, this hydraulic hose is perfect for farmers, plant managers, rescue workers and others who need durability and flexibility. Whether you're managing agricultural operations, transferring industrial chemicals, or working a construction site, this hose delivers optimized performance with less downtime and longer assembly life.
• Handles oil-based fluids from -40°F to +212°F and water-based fluids from -40°F to +150°F
• High abrasion resistance
• Suited for demanding applications including agriculture, general construction, food processing, and hydraulics
• The hose can be molded into configurations that match system design
• Agency Rating: 100R7
• Fittings Certified: 4TA Series, 1A/Z series with sleeve and 901/902 series
• Construction:
– Inner Tube: Nylon
– Reinforcement: One textile braid
– Cover: Polyurethane
• Temperature Range:
– Oil-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +66°C)
• Application Notes: Recommended for agriculture, horticulture, chemical transfer, foam systems, food processing, forestry delimber, general construction, general hydraulic systems , lubrication systems, marine steering, utility vehicles and pickers, rescue apparatus/tools and water jetter/sewer
Frequently Bought Together

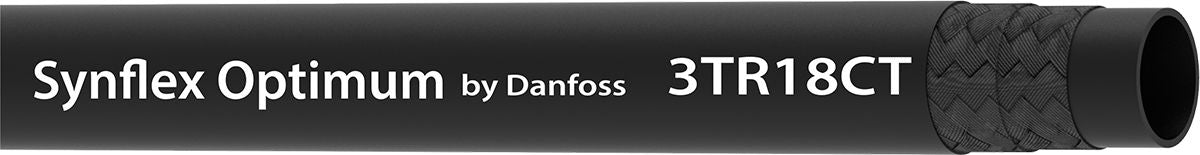

3TR18CT Hydraulic Thermoplastic Hose 0.85" x 50'
Couldn't load pickup availability
3TR8N Hydraulic Thermoplastic Hose 0.90" x 50'
Couldn't load pickup availability
3TR8N Hydraulic Thermoplastic Hose 0.59" x 50'
Couldn't load pickup availability
Hydraulic Union 7/16-20 x 1/8-27
Couldn't load pickup availability
Valve Core 210VC 733204045
Couldn't load pickup availability
MC-HPB-16 MegaClean Hose Foam Projectile
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
3TR8N Hydraulic Thermoplastic Hose 0.59" x 50'
Couldn't load pickup availability
3TR18CT Hydraulic Thermoplastic Hose 0.48" x 50'
Couldn't load pickup availability

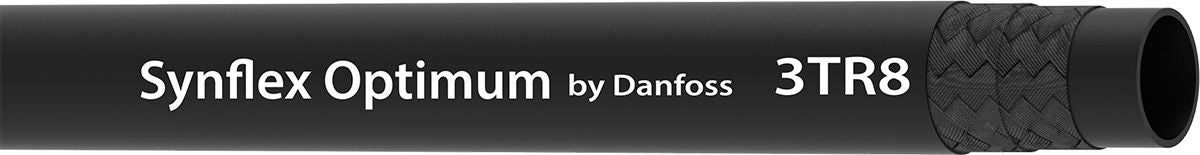

3TR8 Hydraulic Thermoplastic Hose 0.90" x 50'
Couldn't load pickup availability
Product Description
Depend on the Single Braid Synflex Optimum Thermoplastic Hose for performance you can trust in the toughest environments. Engineered with an abrasion-resistant polyurethane cover and a lightweight design, this hydraulic hose is perfect for farmers, plant managers, rescue workers and others who need durability and flexibility. Whether you're managing agricultural operations, transferring industrial chemicals, or working a construction site, this hose delivers optimized performance with less downtime and longer assembly life.• Handles oil-based fluids from -40°F to +212°F and water-based fluids from -40°F to +150°F
• High abrasion resistance
• Suited for demanding applications including agriculture, general construction, food processing, and hydraulics
• The hose can be molded into configurations that match system design
• Agency Rating: 100R7
• Fittings Certified: 4TA Series, 1A/Z series with sleeve and 901/902 series
• Construction:
– Inner Tube: Nylon
– Reinforcement: One textile braid
– Cover: Polyurethane
• Temperature Range:
– Oil-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based fluids: –40°F to +150°F (–40°C to +66°C)
• Application Notes: Recommended for agriculture, horticulture, chemical transfer, foam systems, food processing, forestry delimber, general construction, general hydraulic systems , lubrication systems, marine steering, utility vehicles and pickers, rescue apparatus/tools and water jetter/sewer
Technical Specifications
| Item#: | 1692567 |
|---|---|
| Type | Thermoplastic Hose |
| Category/Performance | Constant Pressure |
| Industry Rating 1 | SAE 100R7 |
| Manufacturer Series Number | 3TR7N |
| Manufacturer Series Name | Synflex |
| Dash Size | -3 |
| Working Pressure | 3,050 PSI |
| Burst Pressure | 12,200 PSI |
| Inner Tube Material | Nylon |
| Hose Reinforcement | 1 Textile Braid |
| Hose Cover Material | Non-Stick Polyurethane 3TR7N Non-perforated |
| Fitting Series | 4TA Series, 1A/Z Series with Sleeve and 901/902 Series |
| Temperature | Oil Basedluids = -40F to +212F / Water Basedluids = -40F to +150 F |
| Color | Orange |
| Size | 1/5 (-3) " |
| Length | 50 ft |
| SynFlex Part No. | 3TR7N-03-050BX |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
