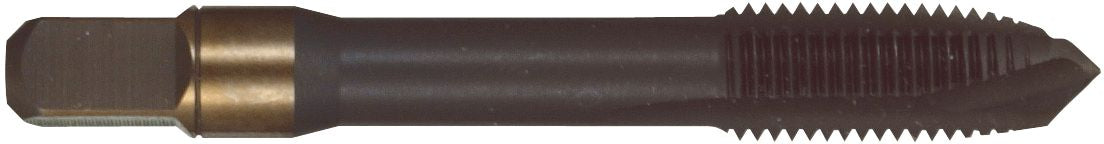

Hand Tap Kit, High Speed Steel, Gold Oxide Finish, 4 Flute, Taper, Plug and Bottoming Taps, M18 x 2.5, 1-13/16" Thread Length
(Pack of
1)
Designed for durability and precision, the Gold Hand Tap M12 x 1.75 is your go-to for general-purpose threading. It features a gold oxide finish for smooth chip flow and wear resistance, along with a precision-ground 4-flute design that reduces torque and increases accuracy, even in tougher tapping conditions.
Lawson Tap Sets include Taper, Plug and Bottoming Style Taps; replacement taps are available in each style.
Taper Style
8 to 10 threads chamfered. For easy thread starting in tough materials.
Plug Style
3 to 5 threads chamfered. For general use when tapping to bottom of hole is not critical.
Bottoming Style
1-1/2 threads chamfered. Use after threads have been started for tapping to bottom of hole.
• 4-flute taper design
• High-speed steel body for long-lasting performance
• Precision-ground threads for better results in machines and manual applications
• Gold oxide coating reduces torque and helps prevent binding
• Marked with permanent size ID for convenience
• Cuts clean threads in ferrous and non-ferrous materials
• Optimized for both machine shop and field work
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
Catalog page#: 10-67
Frequently Bought Together
Spot Weld Remover Drill Bit HSS 2-13/16(M8)
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 1/8"
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 1/4" (M6)
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 1-1/8-12
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap 3/8-16
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 5/8-18
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 1-1/8-12
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap 3/8-16
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 5/8-18
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-13/16(M8)
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 1/8"
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Product Description
Designed for durability and precision, the Gold Hand Tap M12 x 1.75 is your go-to for general-purpose threading. It features a gold oxide finish for smooth chip flow and wear resistance, along with a precision-ground 4-flute design that reduces torque and increases accuracy, even in tougher tapping conditions.Lawson Tap Sets include Taper, Plug and Bottoming Style Taps; replacement taps are available in each style.
Taper Style
8 to 10 threads chamfered. For easy thread starting in tough materials.
Plug Style
3 to 5 threads chamfered. For general use when tapping to bottom of hole is not critical.
Bottoming Style
1-1/2 threads chamfered. Use after threads have been started for tapping to bottom of hole.
• 4-flute taper design
• High-speed steel body for long-lasting performance
• Precision-ground threads for better results in machines and manual applications
• Gold oxide coating reduces torque and helps prevent binding
• Marked with permanent size ID for convenience
• Cuts clean threads in ferrous and non-ferrous materials
• Optimized for both machine shop and field work
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 1391950 |
|---|---|
| Type | Metric |
| Style | Set |
| Material | High Speed Steel |
| Diameter | M18 |
| Pitch | 2.5 mm |
| Flutes | 4 |
| Thread Length | 1-13/16 " |
| Number of Pieces | 3 |
| Recommended Drill Size | 15.5 |
| Description | One each of Taper, Plug and Bottoming Style Taps |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
