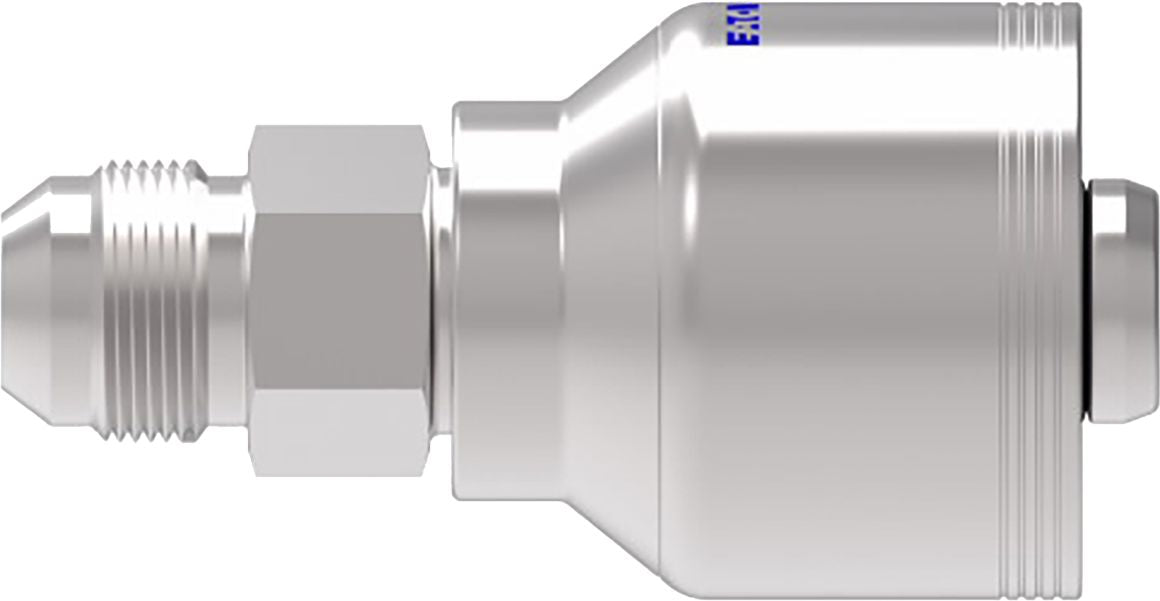

3/8 (-6) x 3/4-16 (-8) 4S Series Male JIC/37° - Rigid Straight Crimp-On End Fitting
(Pack of
1)
SKU:1172849 Item#: 1172849
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Bumper Drive Rivet Plastic 10mm Hole
Item#: P85437
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Item#: 1579409
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Item#: P85253
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1172849 |
|---|---|
| Manufacturer Model #: | 4SA8MJ6 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 3/8 (-6) " |
| Dash Size | -6 |
| Gender | Male |
| Fitting End Style | JIC 37 Degree Flare |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 3/4-16 (-8) |
| Weatherhead No. | 4SA8MJ6 |
| Size | (-6)X(-8) |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
