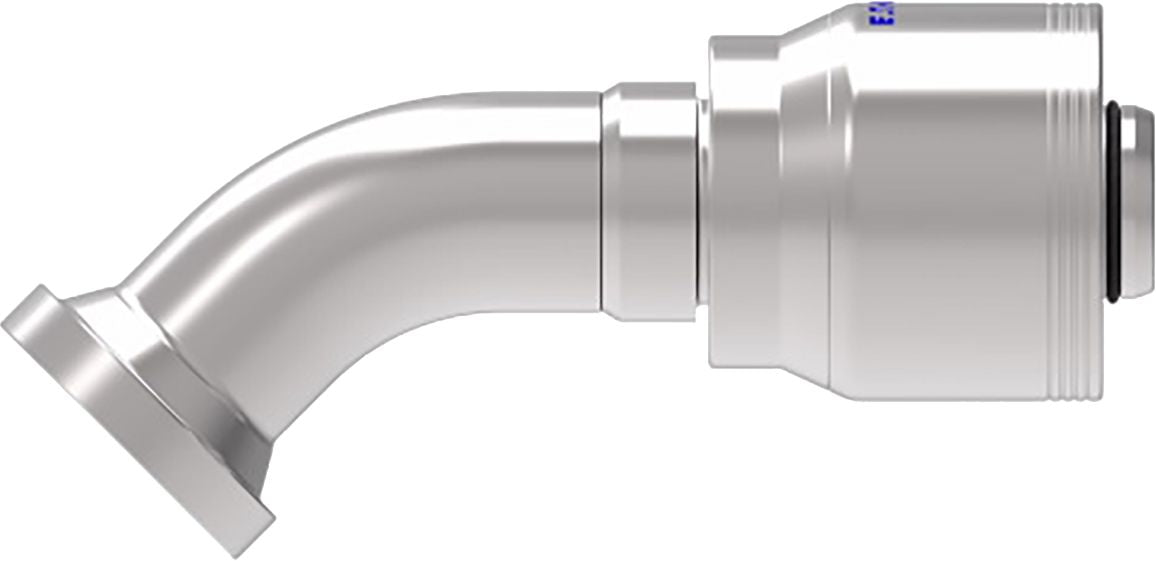

5/8 (-10) x 1-1/2 (-12) 4S Series Split Flange 45° Elbow SAE Code 61 Crimp-On End Fitting
(Pack of
1)
SKU:1182971 Item#: 1182971
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: KT11397
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
Item#: 1500739
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1182971 |
|---|---|
| Manufacturer Model #: | 4S12FLA10 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 5/8 (-10) " |
| Dash Size | -10 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 45 Degree |
| Fitting Dimension B (Working End) | 1/2 (-12) |
| Flange Diameter | 1.50 " |
| Weatherhead No. | 4S12FLA10 |
| Drop Length | Medium |
| Size | (-10)X(-12) |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
