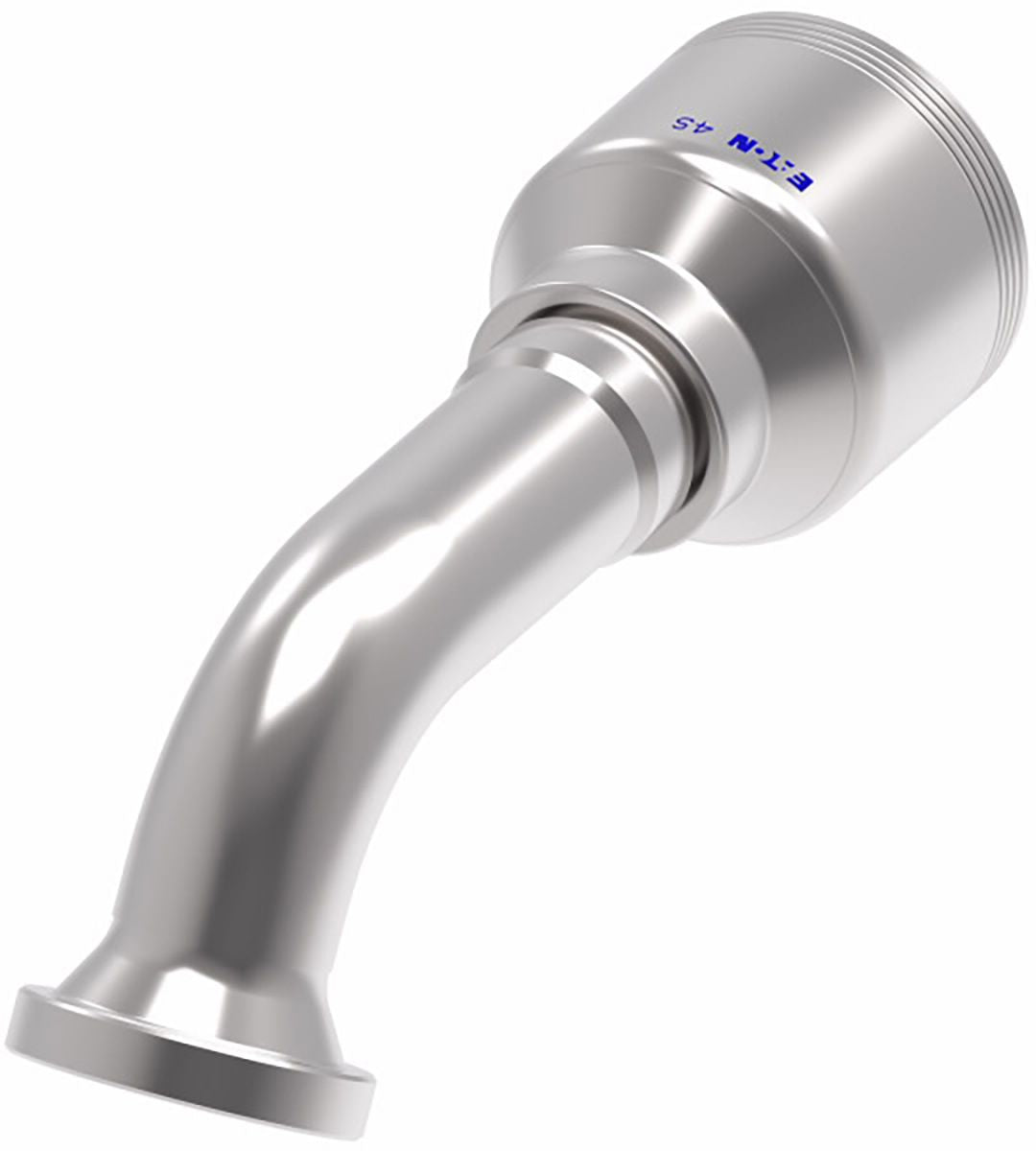

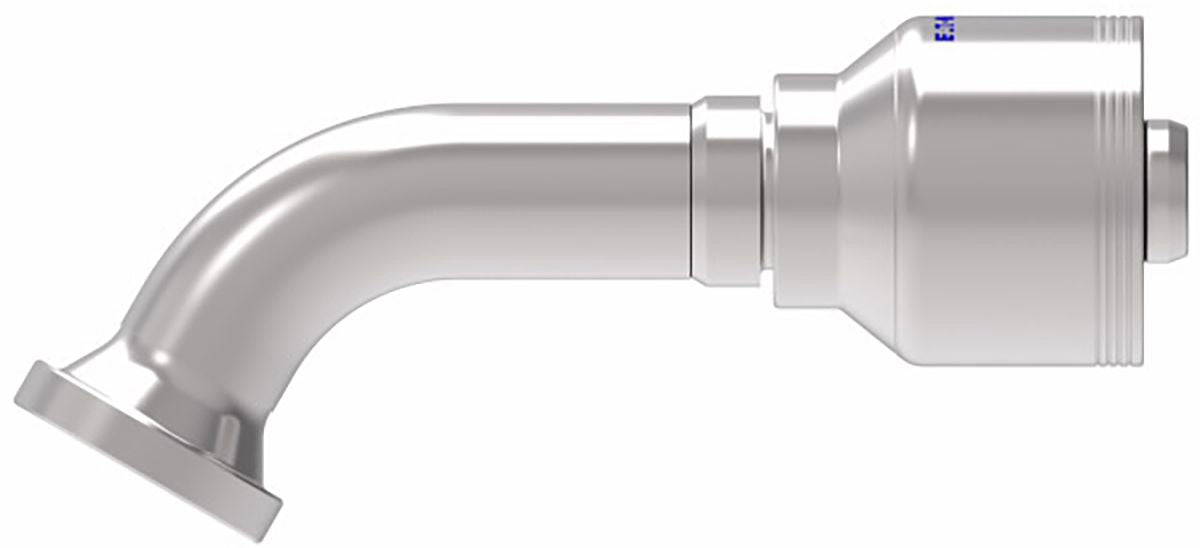

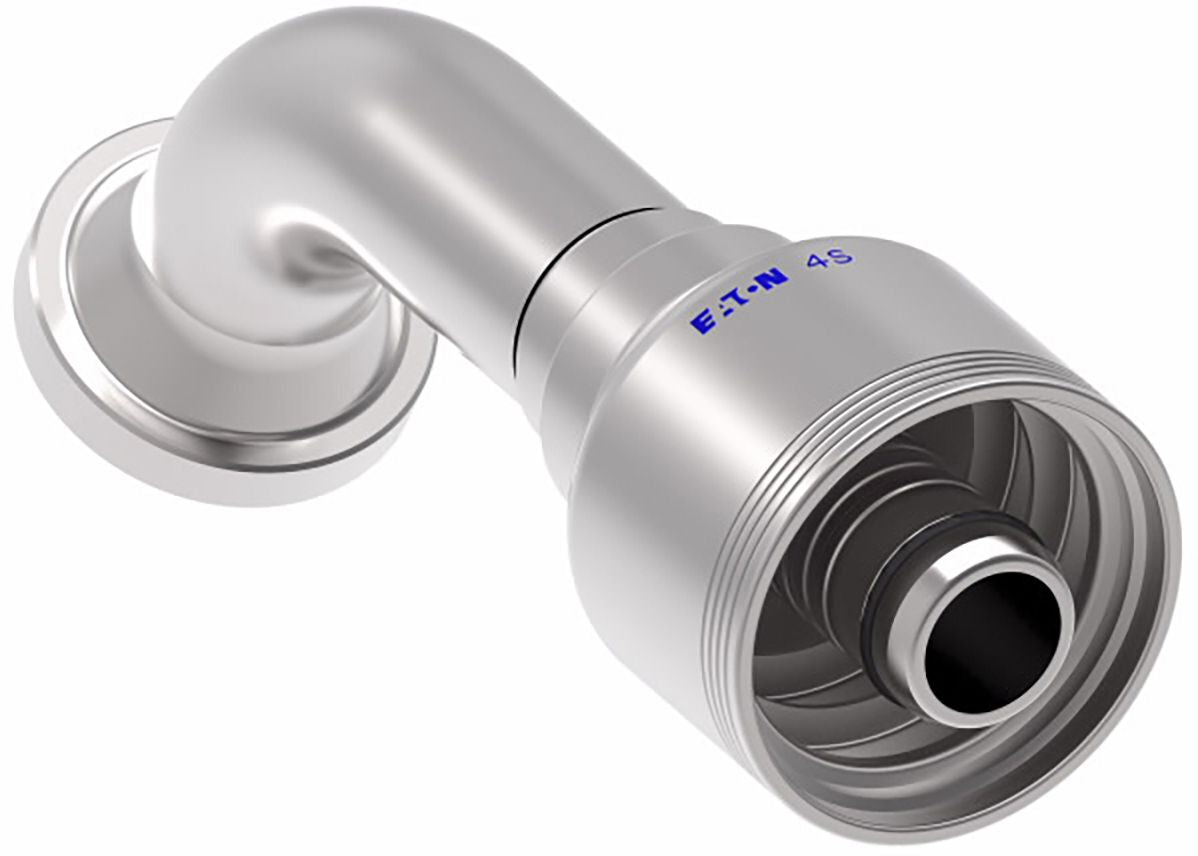

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 60°, SAE 61, 3/4 (-12) x 1.75" (-16)
(Pack of
2)
SKU:1543083 Item#: 1543083
Compatible Hoses:
• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
08Z-BC08- Hose End (perm) 1S/1R Str Male STC
$0.00
Couldn't load pickup availability
06Z-BC66- Hose End (perm) 1S/1R 90 D Male STC
$0.00
Couldn't load pickup availability
06Z-BC06- Hose End (perm) 1S/1R Str Male STC
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 1/8 x 1/4 x 1/16"
$0.00
Couldn't load pickup availability
Spacer Ring Black
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 0.617 x 0.769"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
$0.00
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses:• 4S: H430 (-12 through -32)
• H430R (-12 through -32)
• EC525 (-12 through -32)
• H471 (-12 through -24)
• H464 (-12 through -32)
• EC810 (-12, -16)
• 6S: H471 (-32)
• EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543083 |
|---|---|
| Manufacturer Model #: | 4S16FLG12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Fitting End Type | Flanged |
| Fitting Angle | 60 ° |
| Fitting Dimension B (Working End) | 1.75 (-16) |
| Weatherhead No. | 4S16FLG12 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 4.61 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.74 lb |
