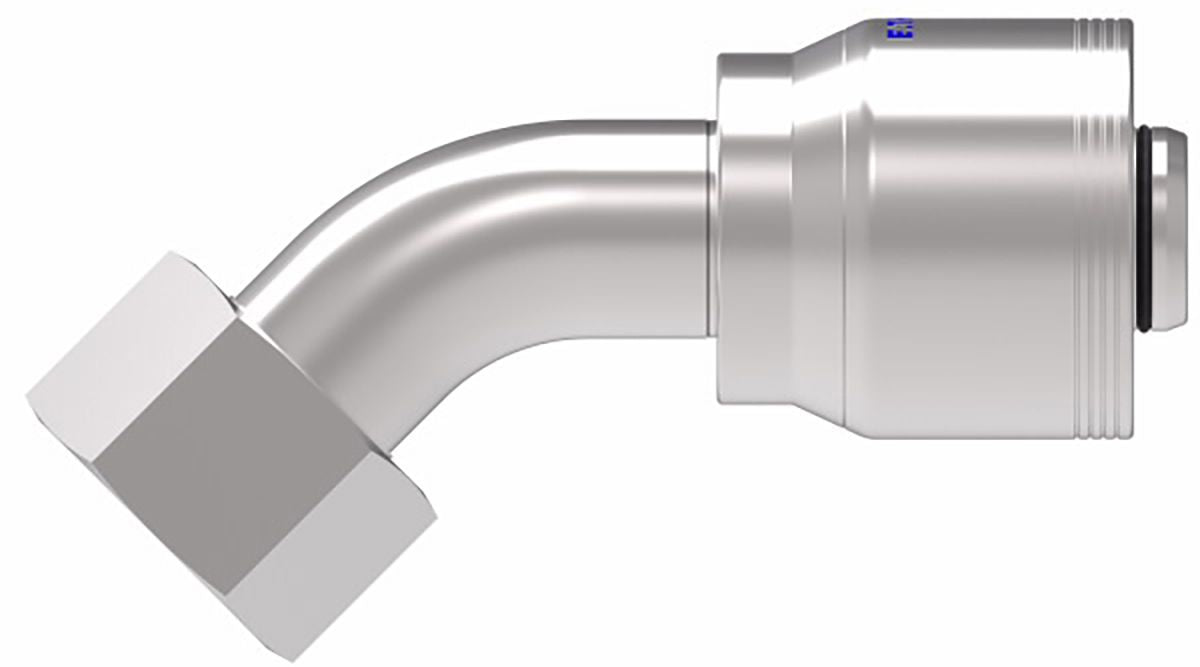

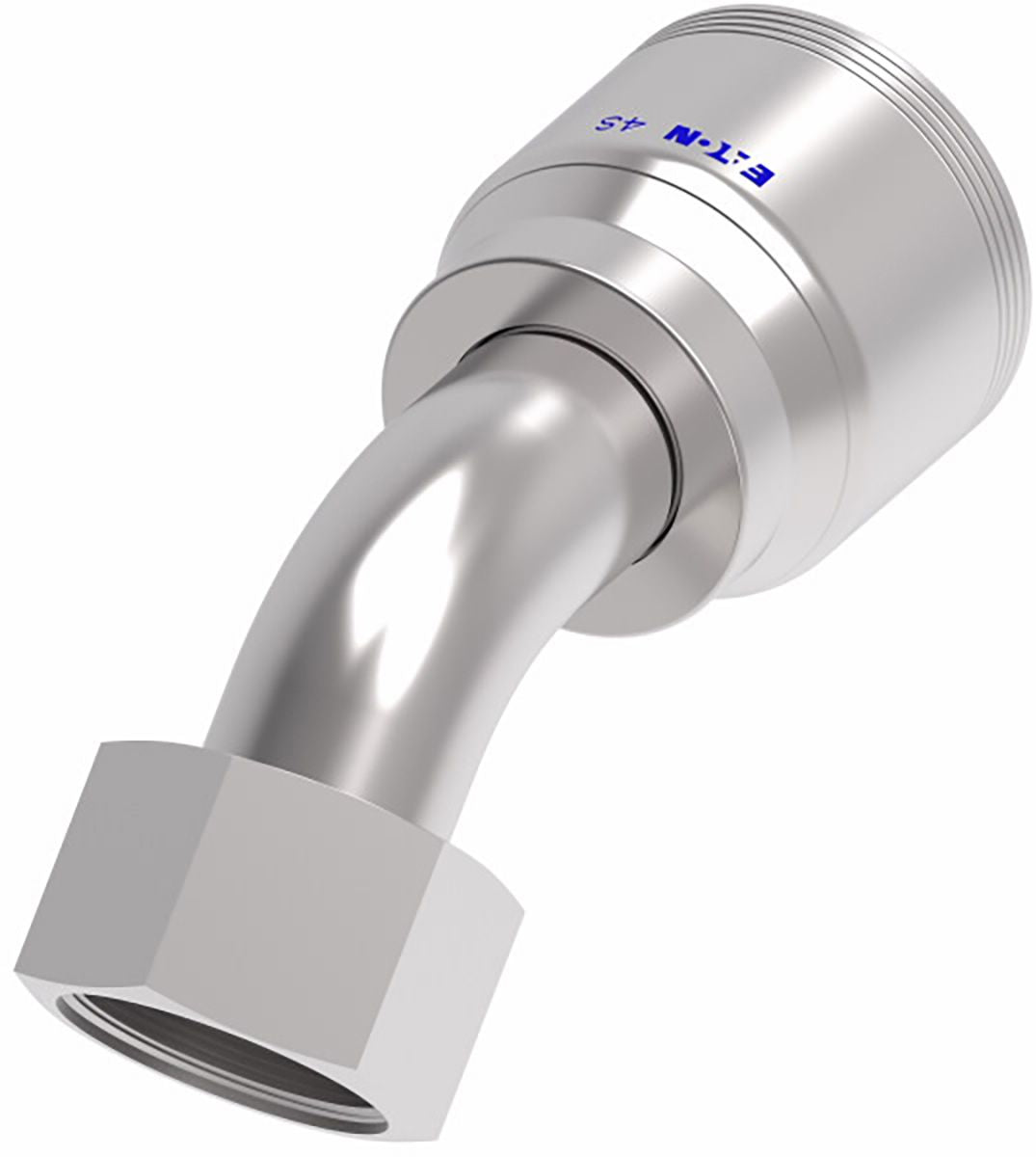

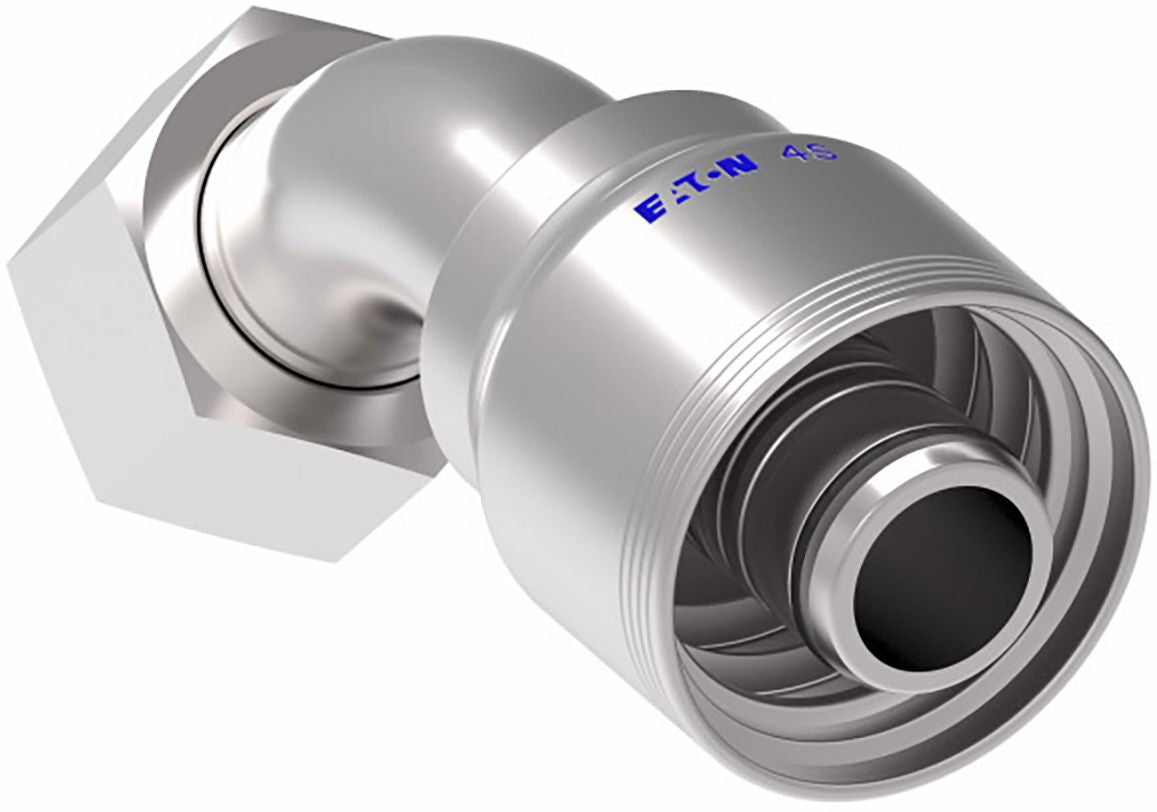

4S Series Crimp-On Elbow, Carbon Steel, Female O-Ring Seal, Swivel 45°, 1" (-16) x 1-7/16-12 (-16)
(Pack of
1)
SKU:1543120 Item#: 1543120
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Power Crimp Coupler, Ferrule 726607825
Item#: 1644518
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
Item#: 1644512
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
Item#: 1644600
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 0.509 x 0.655"
Item#: KT13009
$0.00
Couldn't load pickup availability
Z Series/1A Series Crimp-On Hose End 1/4" x G-3/8-19
Item#: 20739
$0.00
Couldn't load pickup availability
Spacer Ring Red
Item#: 1555828
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
Item#: KT15124
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
Item#: 1489993
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
Item#: 61323
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Item#: P60477
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
Item#: 1446663
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
Item#: 1482003
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543120 |
|---|---|
| Manufacturer Model #: | 4SA16FRA16 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Female |
| Fitting End Type | Rigid |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 1-7/16-12 (-16) |
| Weatherhead No. | 4SA16FRA16 |
| SAE Code | J1176 |
| Hex Size | 1.625 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.87 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.38 lb |
