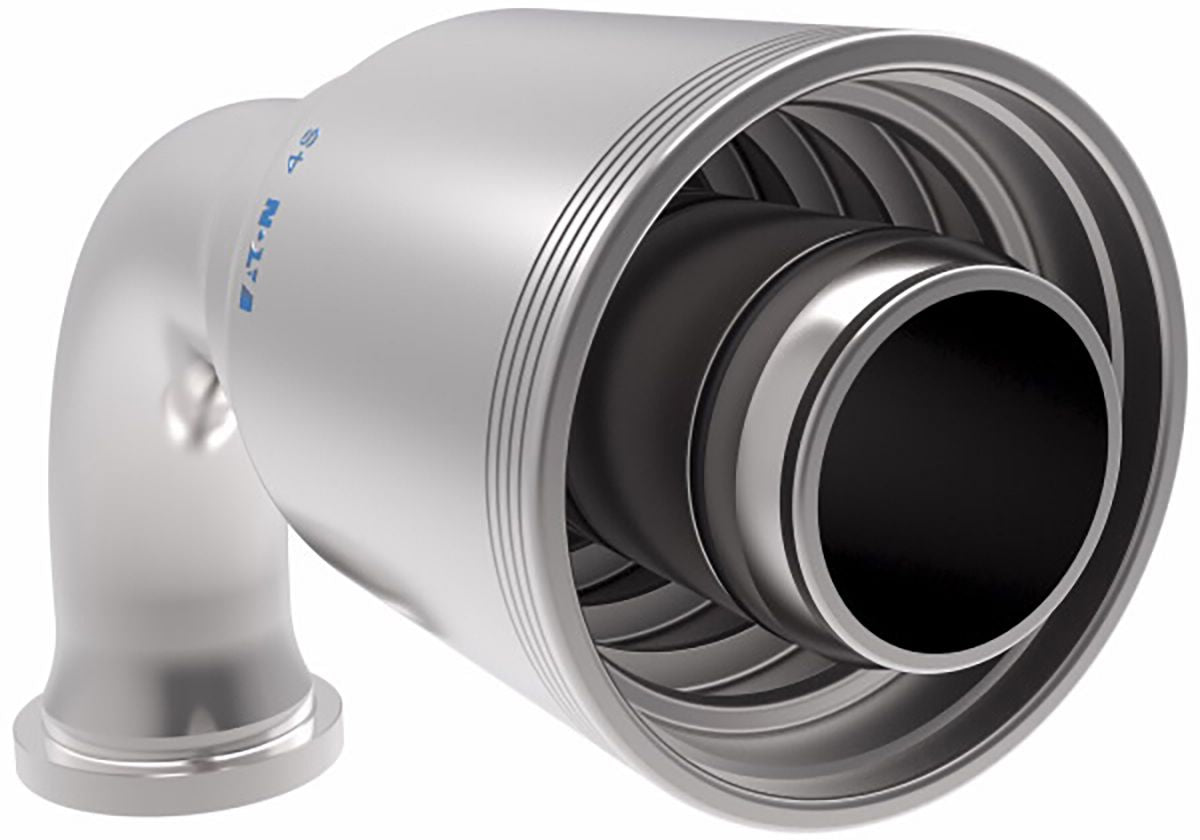

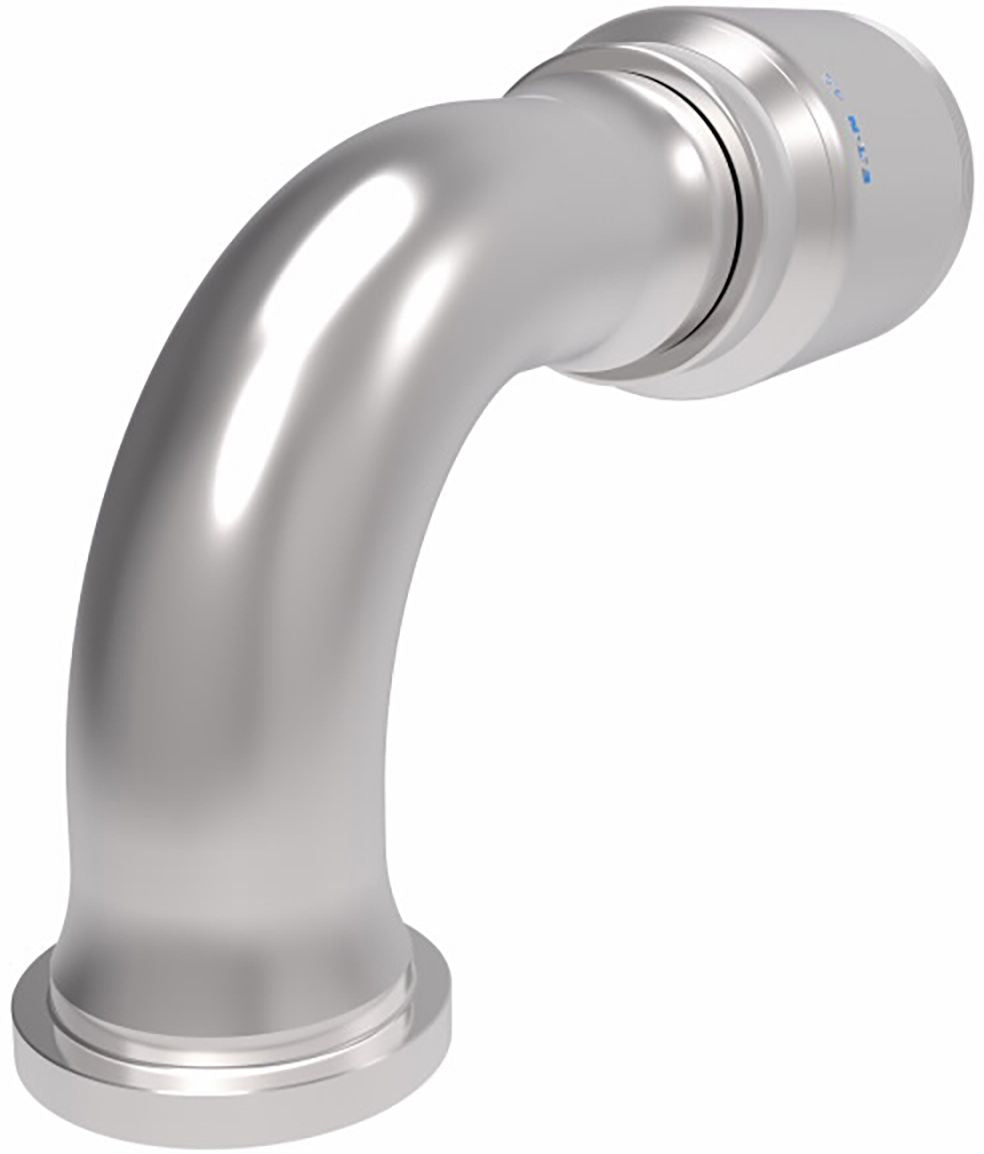

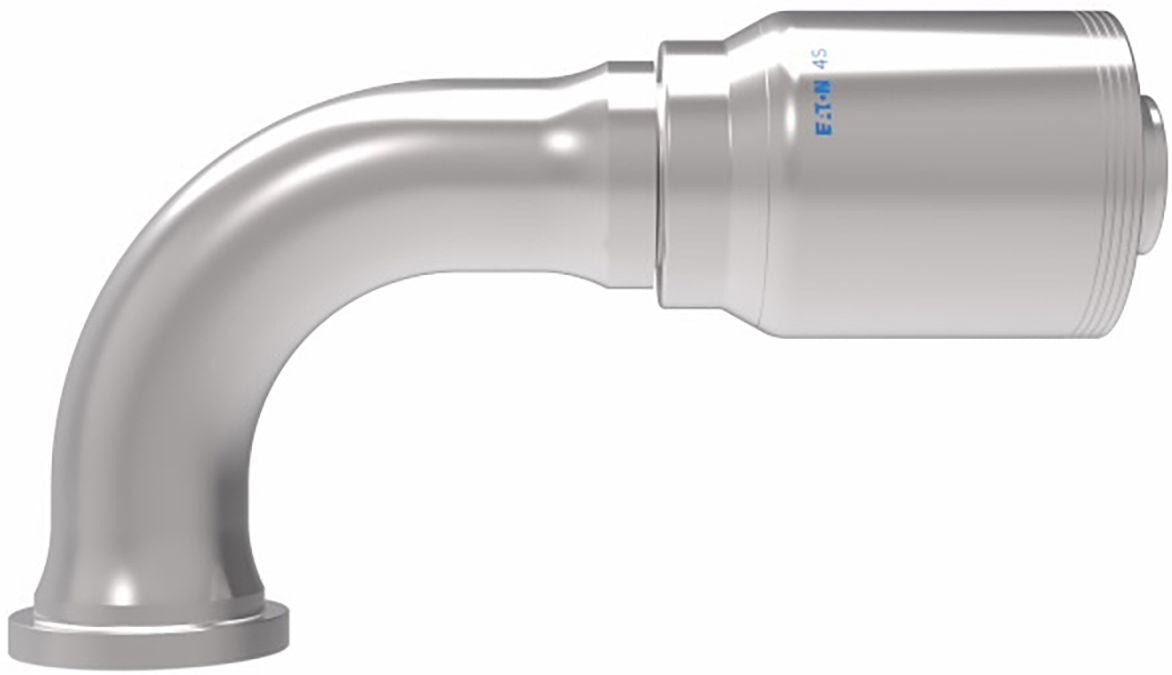

4S Series Crimp-On Elbow, Carbon Steel, Split Flange 90°, SAE 61, 1-1/2 (-24) x 2.37" (-24)
(Pack of
1)
SKU:1543023 Item#: 1543023
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
GlobalSpiral Coupler, JIC 37 Deg Flare 734773065
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734733245
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734773845
$0.00
Couldn't load pickup availability
Spacer Ring Green/White
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN Green
$0.00
Couldn't load pickup availability
Braided Collet Orange
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543023 |
|---|---|
| Manufacturer Model #: | 4S24FLB24 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/2 (-24) " |
| Dash Size | -24 |
| Fitting End Type | Flanged |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Working End) | 2.37 (-24) |
| Weatherhead No. | 4S24FLB24 |
| SAE Code | J1176 |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 5.15 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 5.0 lb |
