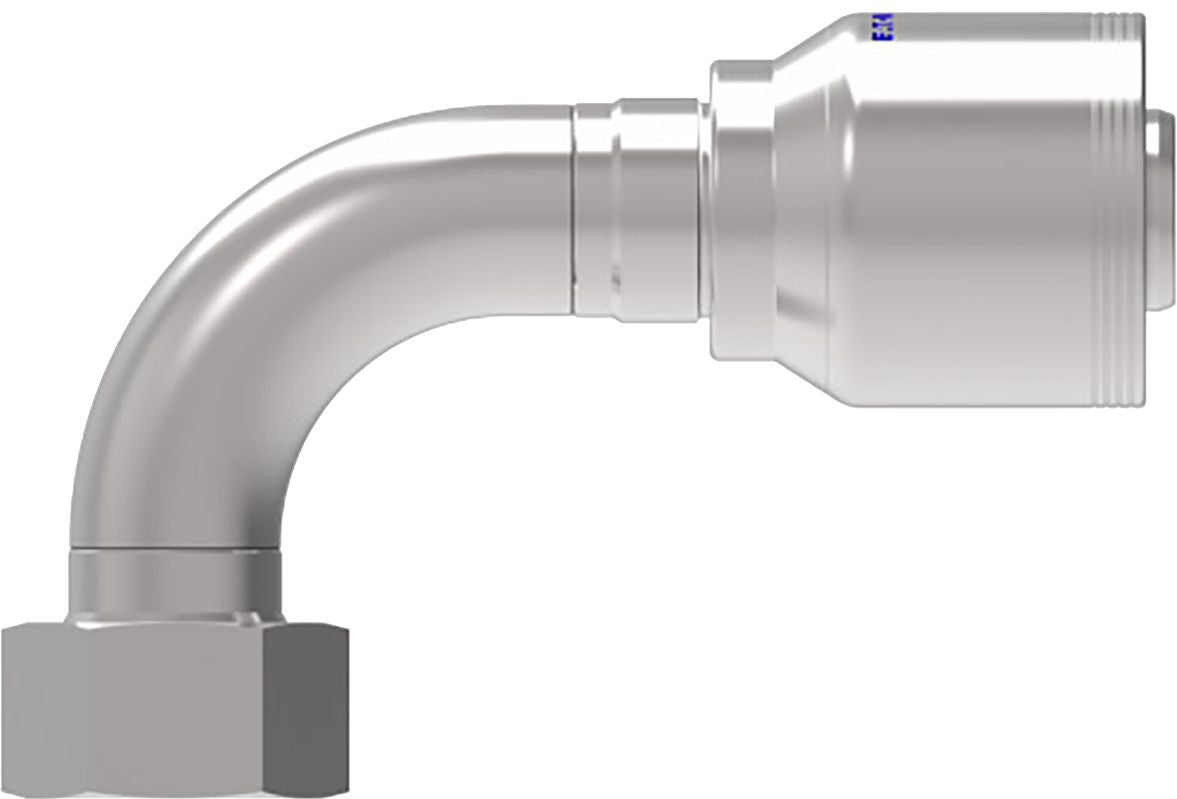

4S Series Crimp-On Elbow, Carbon Steel, Female O-Ring Seal, Swivel 90°, 1" (-16) x 1-3/16-12 (-12)
(Pack of
1)
SKU:1647761 Item#: 1647761
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734745245
Item#: 1644502
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, JIC 37 Deg Flare 734724245
Item#: 1644491
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, Flange - Code 61 O-Ring 734742245
Item#: 1644500
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 6 x 3" Yellow
Item#: 62380
$0.00
Couldn't load pickup availability
Spacer Ring Brown
Item#: 1555788
$0.00
Couldn't load pickup availability
Spacer Ring Black
Item#: 1555757
$0.00
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Item#: 86738
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"
Item#: P63872M01
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"
Item#: P28915M01
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Item#: KT13527
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: P24082
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Item#: P62445
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1647761 |
|---|---|
| Manufacturer Model #: | 4SA12FRB16 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Dash Size | -16 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | 90 ° |
| Weatherhead No. | 4SA12FRB16 |
| Fitting Series | 4S Series |
| Connection Type | Flat Face O-Ring Face Seal |
| SAE Code | J1176 |
| Hex Size | 1.37 " |
| Material | Carbon Steel |
| Finish | DURA-KOTE |
| UNSPSC #: | 27121705 |
| TAA Compliant: | No |
| Weight: | 1.22 lb |
