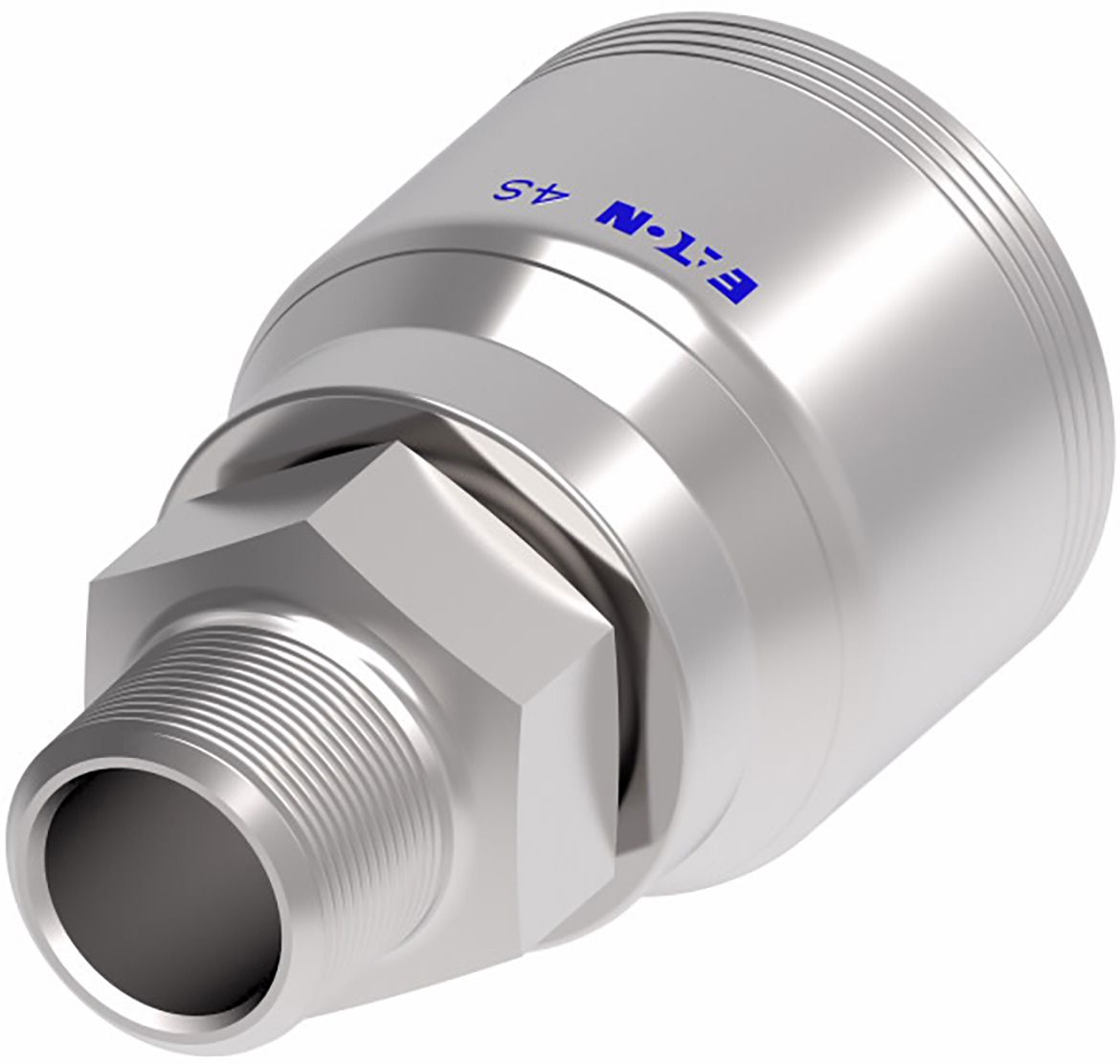

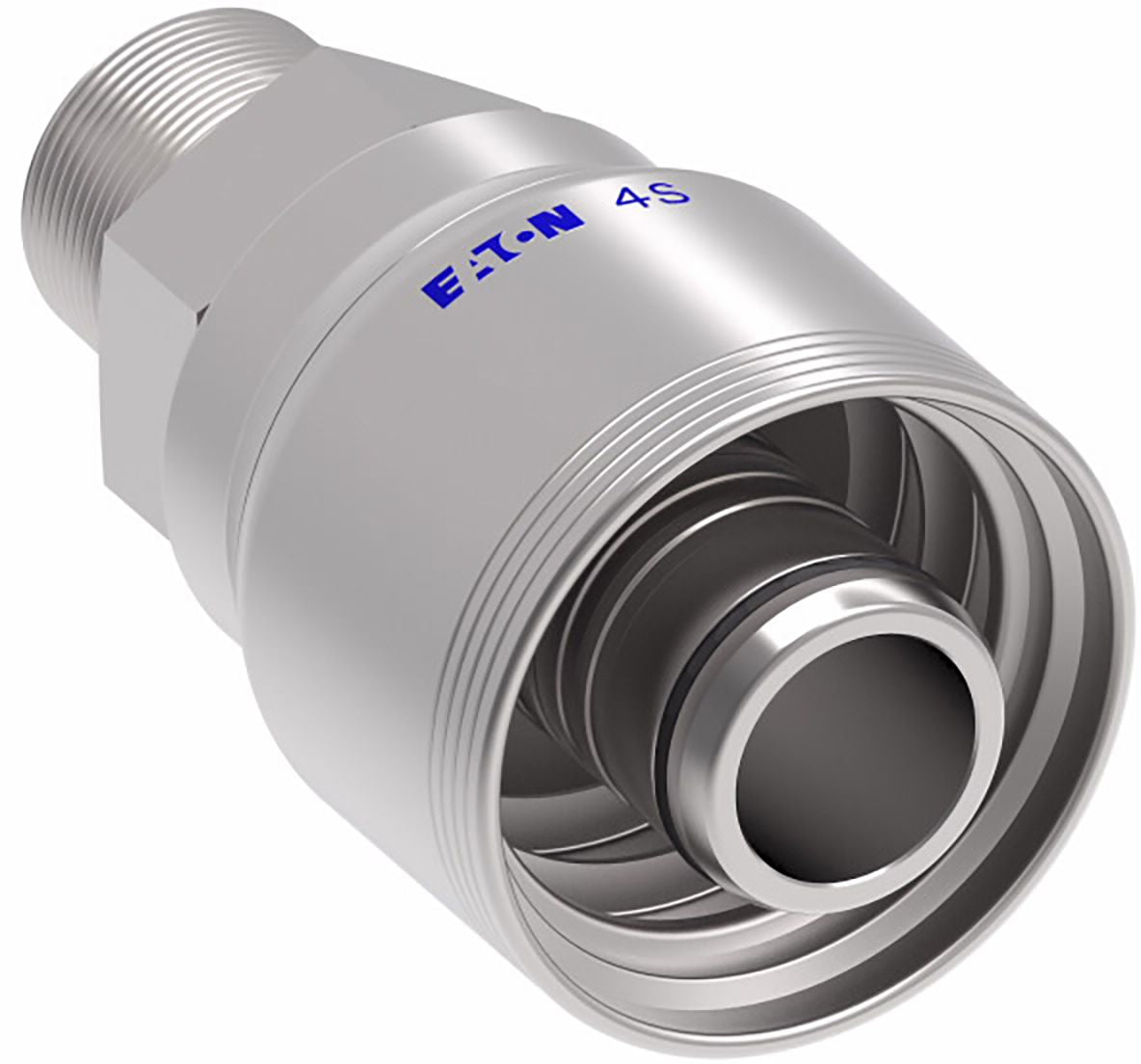

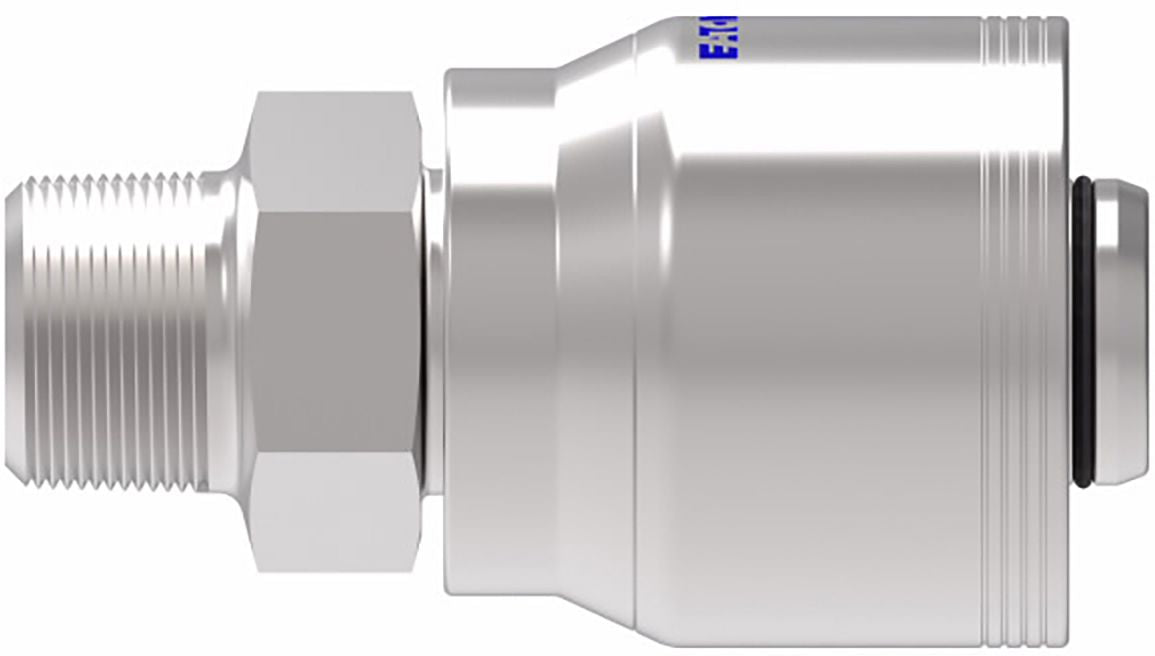

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Male Rigid Pipe NPTF, 1 (-16) x 1-11-1/2 (-16)
(Pack of
2)
SKU:1542987 Item#: 1542987
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Power Crimp Coupler, Ferrule 726607825
Item#: 1644518
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
Item#: 1644512
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
Item#: 1644600
$0.00
Couldn't load pickup availability
Spacer Ring Green
Item#: 1555763
$0.00
Couldn't load pickup availability
Push On Tapered Cap/Plug Polyethylene 3/4"
Item#: 90794
$0.00
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 3/4-16
Item#: 88290KH
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 5/8 x 1/2-14
Item#: 27185
$0.00
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
Item#: KT14464
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 35' air hose
Item#: 1585090
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Item#: 1457520
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
Item#: KT12847
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
Item#: P13787
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1542987 |
|---|---|
| Manufacturer Model #: | 4SA16MP16 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Male |
| Fitting End Type | NPTF |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-11-1/2 (-16) |
| Weatherhead No. | 4SA16MP16 |
| SAE Code | J1176 |
| Hex Size | 1.375 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2.13 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.28 lb |
