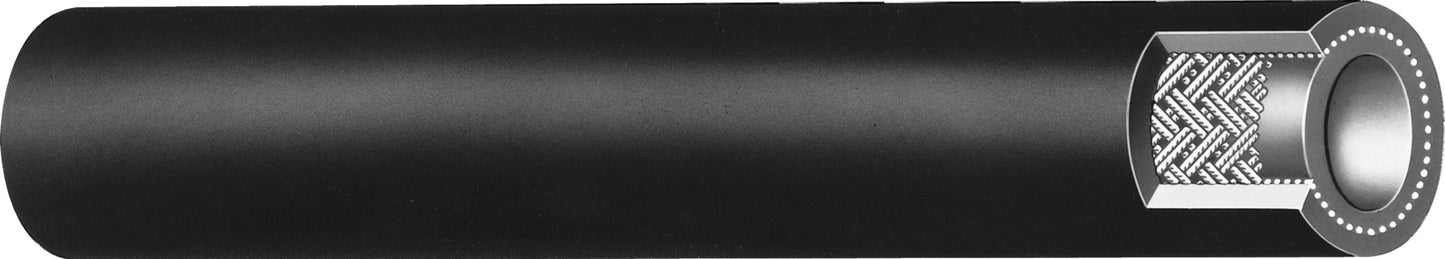

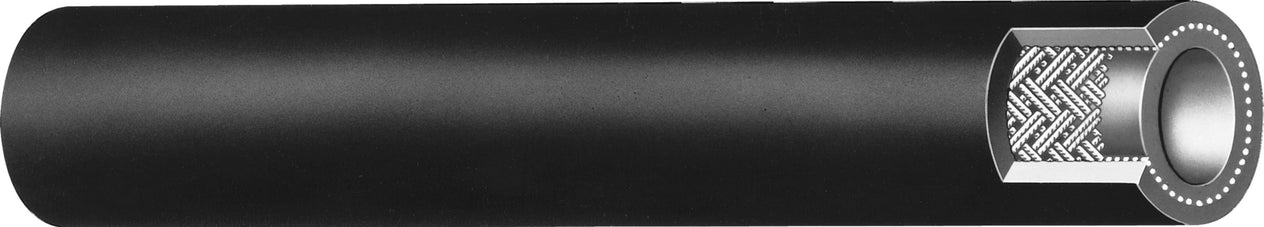

Black 540N Thermoplastic Hose Perforated Polyurethane Fiber Reinforcement Nylon SAE 100R7 3000 psi 1/8 (-2)
(Pack of
50)
SKU:88604 Item#: 88604
Bonded for optimum kink resistance and high flexibility – and offering excellent overall chemical compatibility. 540N Medium Pressure Hoses are recommended for hydraulic and pneumatic circuits and systems: agricultural spraying, urethane foam mixers, robotics, fire-resistant fluids and water.
• Polymeric core tube, single fiber reinforcement, abrasion-resistant, black perforated urethane cover
SAE 100R7
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Limited to 135°F (57°C) for synthetic hydraulic and water-based fluids• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R7 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Frequently Bought Together
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
Bonded for optimum kink resistance and high flexibility – and offering excellent overall chemical compatibility. 540N Medium Pressure Hoses are recommended for hydraulic and pneumatic circuits and systems: agricultural spraying, urethane foam mixers, robotics, fire-resistant fluids and water.• Polymeric core tube, single fiber reinforcement, abrasion-resistant, black perforated urethane cover
SAE 100R7
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Limited to 135°F (57°C) for synthetic hydraulic and water-based fluids• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R7 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Technical Specifications
| Item#: | 88604 |
|---|---|
| Manufacturer Model #: | 540N-2 |
| Type | Thermoplastic Hose |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R7 |
| Manufacturer Series Number | 540N |
| Manufacturer Series Name | Parflex |
| Dash Size | -2 |
| Working Pressure | 3,000 PSI |
| Burst Pressure | 10,000 PSI |
| Minimum Bend Radius | 1/2 " |
| Inner Tube Material | Nylon |
| Hose Reinforcement | Fiber Reinforcement |
| Hose Cover Material | Perforated Polyurethane |
| Temperature | -40F to +212F |
| Size | 1/8 (-2) |
| Parker Crimp Fitting Series | 57 |
| Swage Die Selection | 88801 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 2.95 lb |
