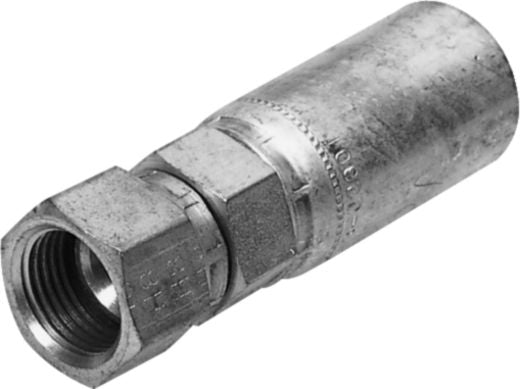

55 Series Female SAE 45° Flare Straight 5/16 (-5)x 5/8-18 (-6) Crimp-on End Fitting
(Pack of
5)
SKU:88758 Item#: 88758
To determine hose end series, reference the fourth and fifth digits of the Parker Fitting No.Example: 10658-4-2 is 58 Series and 10655-4-3 is 55 Series.
Frequently Bought Together
Bumper Drive Rivet Plastic 10mm Hole
Item#: P85437
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Item#: 1579409
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Item#: P85253
$0.00
Couldn't load pickup availability
Product Description
To determine hose end series, reference the fourth and fifth digits of the Parker Fitting No.Example: 10658-4-2 is 58 Series and 10655-4-3 is 55 Series.Technical Specifications
| Item#: | 88758 |
|---|---|
| Manufacturer Model #: | 10855-6-5 |
| Manufacturer Series Number | 55 Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 5/16 (-5) " |
| Dash Size | -5 |
| Gender | Female |
| Fitting End Style | SAE 45 Degree Flare |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 5/8-18 (-6) |
| O.D. Tube Size | 3/8 |
| Pusher Part Number | 91669 |
| Die Part Number | 88804 |
| Size | (-5)X(-6) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.85 lb |
