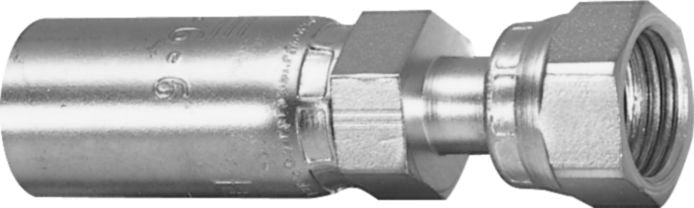

55 Series Female Flat Face O-Ring Seal Straight 5/16 (-5)x 11/16-16 (-6) Crimp-on End Fitting
(Pack of
5)
SKU:97844 Item#: 97844
To determine hose end series, reference the fourth and fifth digits of the Parker Fitting No.Example: 10658-4-2 is 58 Series and 10655-4-3 is 55 Series.
Frequently Bought Together
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Product Description
To determine hose end series, reference the fourth and fifth digits of the Parker Fitting No.Example: 10658-4-2 is 58 Series and 10655-4-3 is 55 Series.Technical Specifications
| Item#: | 97844 |
|---|---|
| Manufacturer Model #: | 1JS55-6-5 |
| Manufacturer Series Number | 55 Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 5/16 (-5) " |
| Dash Size | -5 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 11/16-16 (-6) |
| O.D. Tube Size | 3/8 |
| Pusher Part Number | 88798 |
| Die Part Number | 88804 |
| Size | 5/16-3/8 |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.4 lb |
