919 PTFE Hose 1 x 304 Stainless Steel Braid Natural FDA Compliant PTFE SAE 100R14 1500 psi 1/4 (-5)
(Pack of
25)
SKU:12107 05 Item#: 12107 05

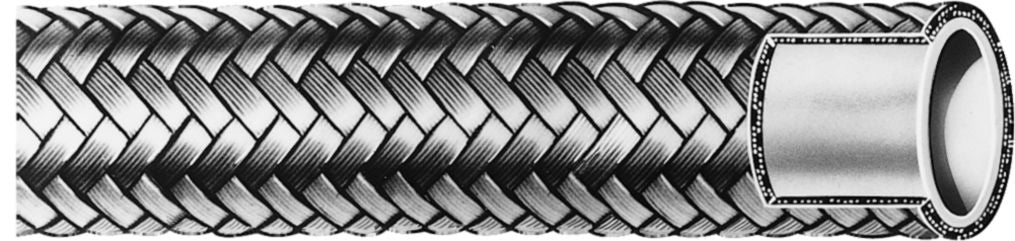

• Stainless steel single-wire braid outer cover• Extruded Teflon® inner tube
SAE 100R14
• Temperature range: –100°F to +450°F (–73°C to +232°C)
Ideal for use in steam systems for laundry equipment, refrigeration systems, tire molding presses, asphalt lines and all chemical and high-temperature applications.
Rolls consist of one piece totaling between 22 and 28 feet
Frequently Bought Together
Inner Fender Shield Attaching Clip Nylon Black
Item#: P27685
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Item#: P24252
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Item#: P85437
$0.00
Couldn't load pickup availability
Product Description
• Stainless steel single-wire braid outer cover• Extruded Teflon® inner tubeSAE 100R14
• Temperature range: –100°F to +450°F (–73°C to +232°C)
Ideal for use in steam systems for laundry equipment, refrigeration systems, tire molding presses, asphalt lines and all chemical and high-temperature applications.
Rolls consist of one piece totaling between 22 and 28 feet
Technical Specifications
| Item#: | 12107 05 |
|---|---|
| Type | PTFE Hose |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R14 |
| Manufacturer Series Number | 919 |
| Manufacturer Series Name | Parflex |
| Hose I.D. | 1/4 (-5) " |
| Working Pressure | 1,500 PSI |
| Burst Pressure | 9,000 PSI |
| Bend Radius | 3 " |
| Inner Tube Material | Natural FDA Compliant PTFE |
| Hose Reinforcement | 1 x 304 Stainless Steel Braid |
| Hose Cover Material | Stainless Steel Braid |
| Fitting Series | 90 |
| Temperature | -100F to +400F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 4.0 lb |
