Air Brake Tubing N-2 1/4" OD Green
(Pack of
1)
• Single-wall extruded nylon
• Heat-stabilized and ultraviolet-resistant
• SAE J844, Type 3A
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Working pressure: 150 PSI
• Applications: Windshield wiper lines, air horn lines, fuel lines, air regulated axles, pneumatic gauge lines
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 8-5
Frequently Bought Together

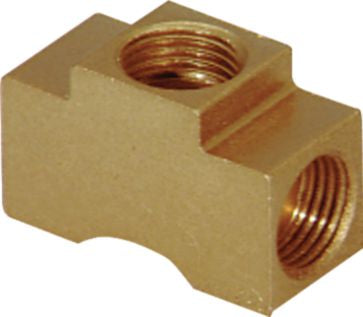

Inverted Flare Union Tee 3/16"
Couldn't load pickup availability
Inverted Flare Adapter 3/16" x 9/16-20
Couldn't load pickup availability
Zinc Steel Hydraulic Brake Lines 3/8" x 30"
Couldn't load pickup availability

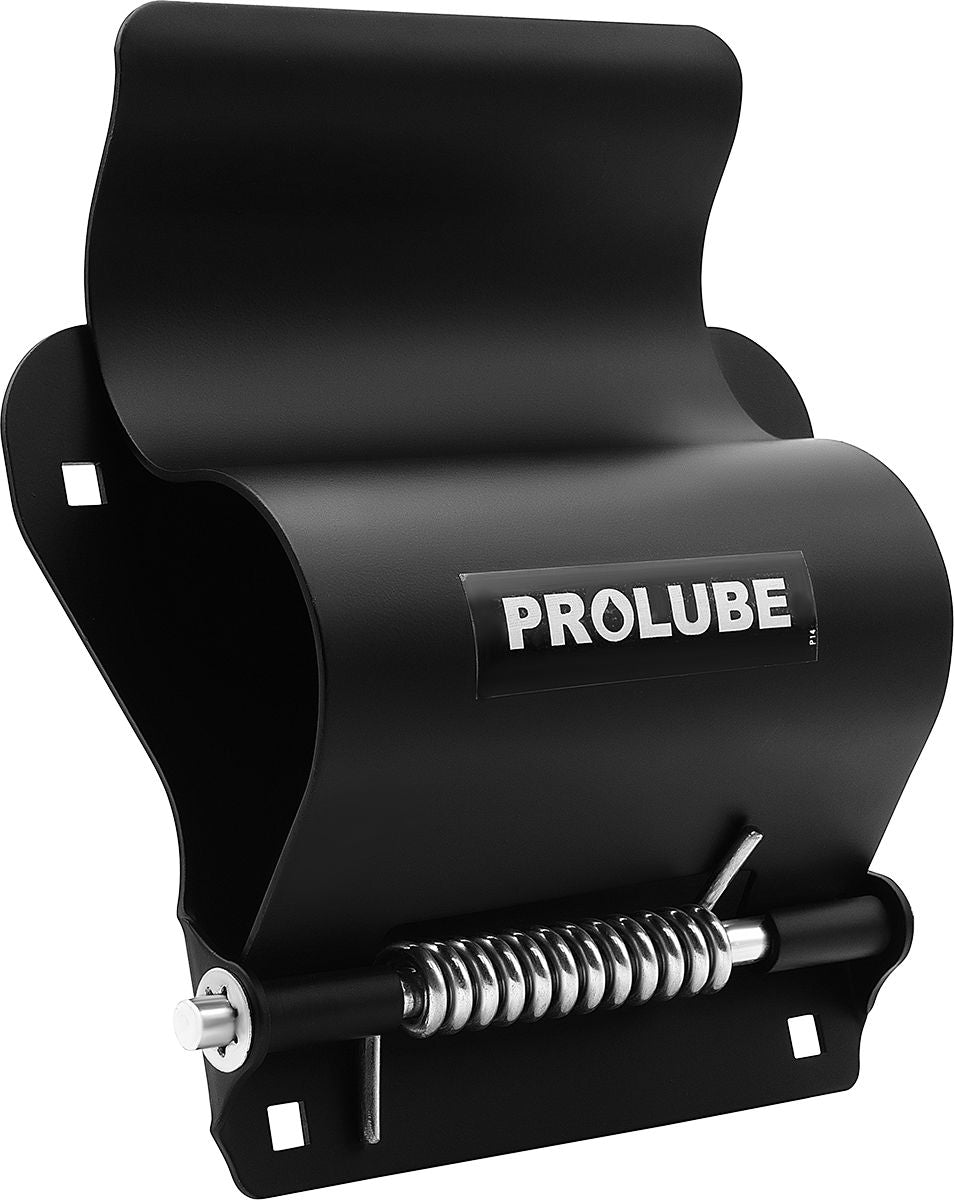

Grease Gun Holder
Couldn't load pickup availability
Pneumatic 50:1 Grease Pump Kit for 120lb Drums
Couldn't load pickup availability
Grease Filler Pump with Universal Loader Adaptors
Couldn't load pickup availability
One-Ear Stepless Hose Clamp 304 SS 0.228 to 0.275"
Couldn't load pickup availability
H353H Truck Hose 37/64" OD x 250'
Couldn't load pickup availability
Constant Tension Hose Clamp 301 SS 5/8 to 15/16"
Couldn't load pickup availability
Vacuum Hose Connector 3/16 x 3/16"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Gray 12mm
Couldn't load pickup availability
Product Description
• Single-wall extruded nylon• Heat-stabilized and ultraviolet-resistant
• SAE J844, Type 3A
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Working pressure: 150 PSI
• Applications: Windshield wiper lines, air horn lines, fuel lines, air regulated axles, pneumatic gauge lines
Technical Specifications
| Item#: | 52503 |
|---|---|
| Category/Performance | Air Brake Tubing |
| Type | N-2 |
| Size | GREEN |
| Industry Rating 1 | SAE J844, Type 3A |
| Group | Air Brake Tubing |
| Working Pressure | 150 PSI |
| Feet per Roll | 100 ft |
| O.D. | 1/4 " |
| Burst Pressure | 1,200 PSI |
| Tube Insert | 5389 |
| Length | 100 ft |
| Color | Green |
| Temperature | -40F to +200F |
| Bend Radius | 1 " |
| Hose Cover Material | Nylon |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 1.49 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
