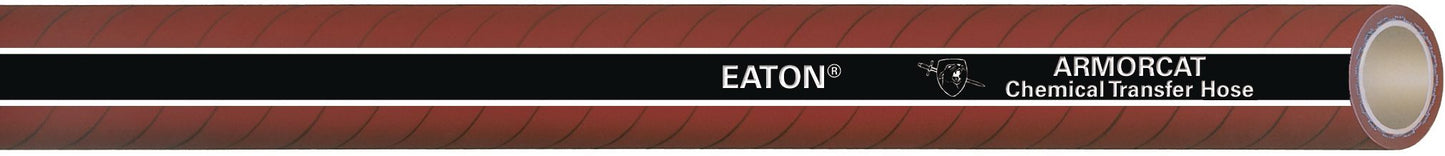

Armorcat Chemical Transfer Hose Red EPDM Helical Wires UHMW Polyethylene (FDA Approved) 300 psi 3
(Pack of
150)
SKU:41508 48 Item#: 41508 48
• Advantages:– Resistant to permanent crushing– Abrasion-, chemical- and ozone-resistant– Chemical, petroleum and solvent resistant – won’t contaminate or discolor fluids– May be cleaned with steam (open end discharge only)– Static dissipating for a safe connection
• Agency Ratings: FDA approved materials
• Fittings Certified: Inserted Hose Ends – Cam and Groove, Swaged or Crimped, Interlocking Clamps or Bands
• Agency Approvals: N/A
• Construction:
– Inner Tube: UHMW polyethylene, FDA approved materials
– Reinforcement: Wire, two braid, two stainless steel static wires, 3" and 4" have helical wires
– Cover: EPDM
• Color: Red
• Temperature Range: –45°F to +160°F (–43°C to +71°C)
• Application Notes:– Transfer of acids, chemicals, solvents and petroleum products– Transfer of chemicals and solvents for processing wood products– Loading and unloading pumping, suction or gravity flow discharge• Markets:– Assembly/manufacturers– Construction– Forestry– Metalworking– Mining– Shipbuilding
Frequently Bought Together
Bumper and Wheel Well Liner Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
• Advantages:– Resistant to permanent crushing– Abrasion-, chemical- and ozone-resistant– Chemical, petroleum and solvent resistant – won’t contaminate or discolor fluids– May be cleaned with steam (open end discharge only)– Static dissipating for a safe connection• Agency Ratings: FDA approved materials
• Fittings Certified: Inserted Hose Ends – Cam and Groove, Swaged or Crimped, Interlocking Clamps or Bands
• Agency Approvals: N/A
• Construction:
– Inner Tube: UHMW polyethylene, FDA approved materials
– Reinforcement: Wire, two braid, two stainless steel static wires, 3" and 4" have helical wires
– Cover: EPDM
• Color: Red
• Temperature Range: –45°F to +160°F (–43°C to +71°C)
• Application Notes:– Transfer of acids, chemicals, solvents and petroleum products– Transfer of chemicals and solvents for processing wood products– Loading and unloading pumping, suction or gravity flow discharge• Markets:– Assembly/manufacturers– Construction– Forestry– Metalworking– Mining– Shipbuilding
Technical Specifications
| Item#: | 41508 48 |
|---|---|
| Manufacturer Model #: | H055448-150 |
| Type | Chemical Transfer |
| Manufacturer Series Number | H0554 |
| Manufacturer Series Name | Armorcat Chemical Transfer Hose |
| I.D. | 3 " |
| Dash Size | -48 |
| Working Pressure | 300 PSI |
| Minimum Bend Radius | 22 " |
| Inner Tube Material | UHMW Polyethylene (FDA Approved) |
| Hose Reinforcement | 2 Braid, 2 Stainless Steel Static Wires and Helical Wire |
| Hose Cover Material | EPDM |
| Fitting Series | Cam and Groove, Swagerd or Crimped, Interlocking Clamps or Bands |
| Temperature | -45F to +160F |
| Color | Red |
| Size | 3X150 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
| Weight: | 500.0 lb |
