Home Fasteners Blind Rivet Nut Insert Riv-Float Short #10-32
Fasteners

Blind Rivet Nut Insert, Riv-Float Short, Steel, Zinc Clear Finish, Knurled, Large Flange, #10-32, 0.02 to 0.1" Grip, 0.433" Hole
(Pack of 5)

Item#: 1406247

Sherex Fastening Solutions

• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

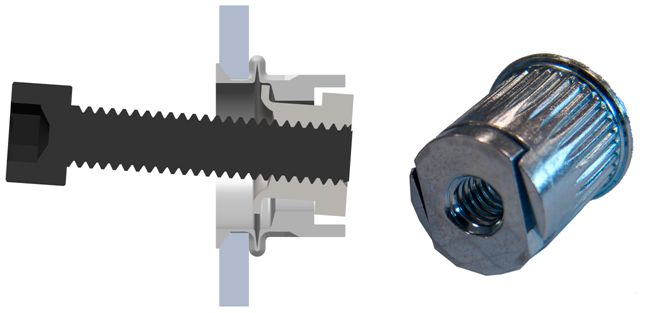

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body

Read More

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Open End Rivet Dome Head Aluminum 1/8"

Item#: 82336

Hex Flange Bolt Grade 10.9 M6-1 x 25mm

Item#: 28681

Serrated Hex Flange Nut Alloy Steel M10-1.25

Item#: 28701

Blind Rivet Nut Insert Riv-Float Short #10-24

Item#: 1405702

Blind Rivet Nut Insert Flat Head 5/16-18

Item#: 1405865

Blind Rivet Nut Insert Riv-Float #10-32

Item#: 1406257

Cross Linked Primary Wire 18 AWG 100' Yellow

Item#: 18290

Cross Linked Primary Wire 18 AWG 100' Red

Item#: 94806

Cross Linked Primary Wire 14 AWG 100' Red

Item#: 5544R

Bumper Clip Push-Type Retainer Nylon 18mm

Item#: KT12848

Front Bumper Trim Panel/Running Board Split Rivet

Item#: KT13527

Front Fender Push-Type Retainer Nylon 20mm

Item#: P24082

Standard Threaded Insert 1/4-20

Item#: 81088

Diamond Grip II Threaded Insert #10-32

Item#: 94733

Diamond Grip II Threaded Insert 5/16-18

Item#: 94736

Product Description

• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body

Technical Specifications

Item#: 1406247
Diameter #10
Grip Range .020 - .100 "
Length 0.435 "
Thread Pitch 32
Hole Size 0.433
Body Type Knurled
Head Style Large Flange
Style Riv-Float Short
Material Steel
Finish Bright Zinc
Size #10-32
Type Blind Rivet Nut
UNSPSC #: 31162802
TAA Compliant: Yes

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
