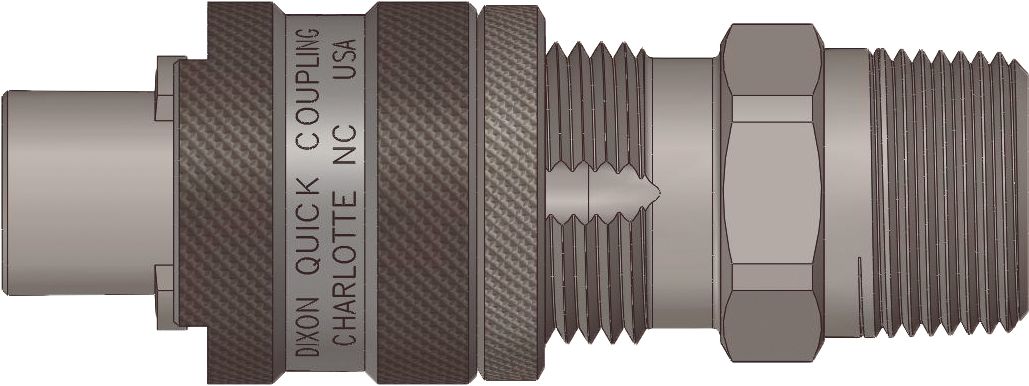

51000 Series Bowes Industrial Quick Disconnect Nipple, Safety-Lock, Steel, Male NPTF, 1/2" Body Size, 1/2-14 Thread Size
(Pack of
1)
SKU:20906 Item#: 20906
Dual-guide sleeve tabs ensure smooth collar action during connection and disconnection. “Push-Twist and Click” connection provides a positive lock when connected. Pneumatically-energized seal provides an airtight seal at all working pressures. Available safety-lock ring protects against accidental disconnection while coupling is in operation. Used for air hammers and large-bore air tools. Used in underground boring, power utilities and equipment rentals.
• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories
• Locking mechanism: Latch tabs
• Meets MIL-C-3486 for Military applications
• Operating pressure: 300 PSI
• Coupled burst pressure: 3,000 PSI
• Flow: 250 CFM
• Dixon: N-Series
• Bowes: 51000 Series
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together

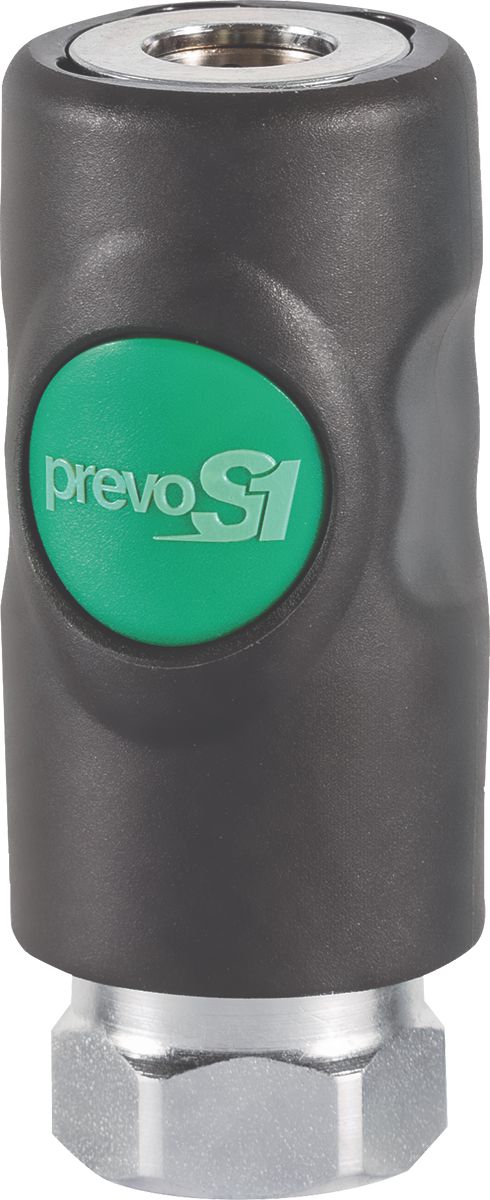

Stainless Steel Tru-Flate Safety Push-Button Safety Coupler 1/2" Body x 1/2" FNPT
Couldn't load pickup availability
Coupler, Industrial, 1/4'' Body, 3/8-18 Female NPTF, Brass
Couldn't load pickup availability

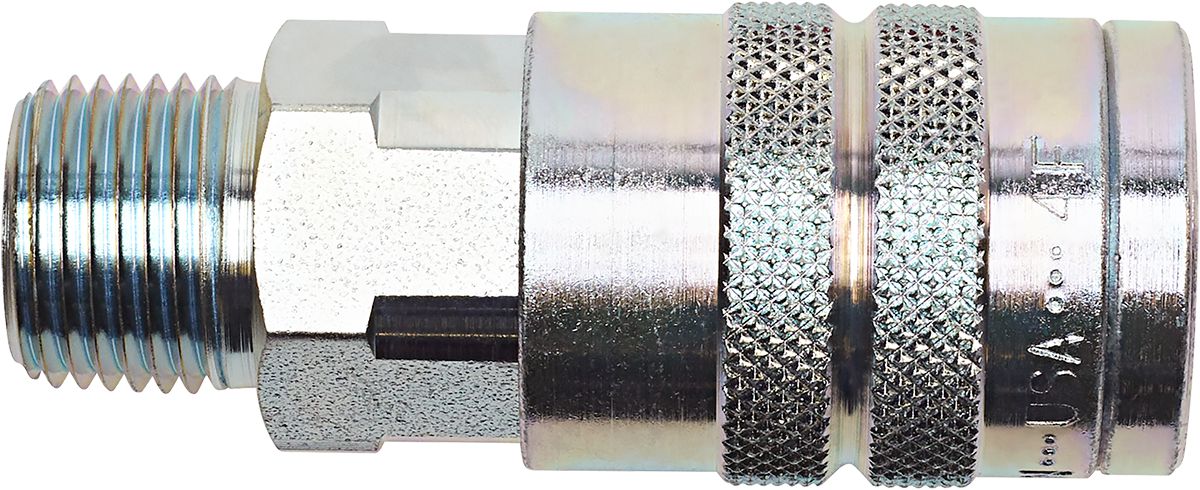

Quick Connect Coupler Steel 1/2" x 1/2-14
Couldn't load pickup availability
Hose Barb Brass 3/8" x 1/2-14
Couldn't load pickup availability
Heavy-Duty Quick Disconnect Plug Steel 1/4 x 1/4"
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/2" x 3/8-18
Couldn't load pickup availability
Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Close Nipple Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Barb-Lok Hose End 3/4" (-12) x 3/4-14 (-12)
Couldn't load pickup availability
Barb-Lok Hose End 3/4" (-12) x 7/8-14 (-10)
Couldn't load pickup availability
Barb-Lok Hose End 1/2" (-8) x 7/8-14 (-10)
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Shroud Insulating Button Nylon 11/16"
Couldn't load pickup availability
Product Description
Dual-guide sleeve tabs ensure smooth collar action during connection and disconnection. “Push-Twist and Click” connection provides a positive lock when connected. Pneumatically-energized seal provides an airtight seal at all working pressures. Available safety-lock ring protects against accidental disconnection while coupling is in operation. Used for air hammers and large-bore air tools. Used in underground boring, power utilities and equipment rentals.• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories
• Locking mechanism: Latch tabs
• Meets MIL-C-3486 for Military applications
• Operating pressure: 300 PSI
• Coupled burst pressure: 3,000 PSI
• Flow: 250 CFM
• Dixon: N-Series
• Bowes: 51000 Series
Technical Specifications
| Item#: | 20906 |
|---|---|
| Description | Industrial Quick Disconnect |
| Type | Nipple, Safety-Lock |
| Style | Bowes |
| Body Size | 1/2 " |
| Thread Style | Male NPTF Safety Lock |
| Thread Size | 1/2-14 |
| Working Pressure | 500 PSI |
| Material | Steel |
| Length | 3.65 " |
| Seal Material | Nitrile (Buna-N) |
| Hex Size | 1-1/8 " |
| Standards | MIL-C-3486; A-A-50431A |
| Dixon Number | N4M4-LS |
| Locking Mechanism | Latch Tabs |
| Flow | 204 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.6 lb |
