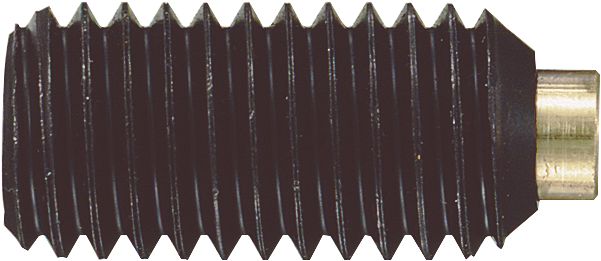

Brass Tip Socket Set Screw, Black Oxide Finish, Alloy Steel, #4-40 x 1/4"
(Pack of
10)
SKU:60277 Item#: 60277
The use of a brass tip set screw eliminates the need to use two standard set screws at a 90° angle to each other. The soft brass tip indents to the curvature of the shaft and effectively locks it in place.
• Alloy steel heat-treated to Rc 28-34
• Locks collars, pulleys, bearings, cams, etc., to shafts
• Protects finished surfaces and threads
• Restricts shaft end play for better control
Product Description
The use of a brass tip set screw eliminates the need to use two standard set screws at a 90° angle to each other. The soft brass tip indents to the curvature of the shaft and effectively locks it in place.• Alloy steel heat-treated to Rc 28-34
• Locks collars, pulleys, bearings, cams, etc., to shafts
• Protects finished surfaces and threads
• Restricts shaft end play for better control
Technical Specifications
| Item#: | 60277 |
|---|---|
| Diameter | #4 |
| Thread Pitch | 40 |
| Length | 1/4 " |
| Point | Brass |
| Type | Set Screw |
| Finish | Black Oxide |
| Material | Alloy Steel |
| Tensile Strength | 180,000 PSI |
| Drive | Hex |
| Thread | Coarse |
| Head Style | Socket Head |
| Key Size | 0.050 " |
| Protrusion Diameter | 1/16 " |
| Protrusion Length | 1/32 " |
| UNSPSC #: | 31161505 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
