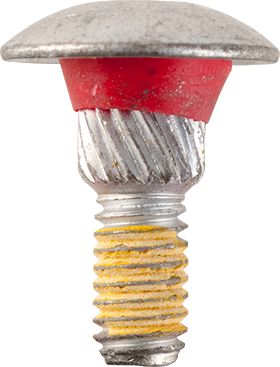

Camtainer® Bolt, Standard Head, 5/16-18 x 1"
(Pack of
100)
SKU:1504402 Item#: 1504402
For truck trailer assemblies, including FRP/GRP materials. Designed to improve assembly of truck trailers. High-strength, removeable nuts and bolts provide positive sealing for protection against corrosion and leakage. Can be installed by a single operator using simple, low-cost tools. The TORX® Drive System on the nuts is engineered to provide high torque transfer, minimize end load and extend drive bit life.
• Low-profile steel head
• Extended grip range
• Positive high torque and excellent structural strength
• One-person installation
• Resists loosening from vibration and expansion/contraction
• Tamper-resistant design
• Grade 5.1
• 1" head dia.
Installation
1. Drill or punch hole to proper size (5/16": 0.406" or 13/32").
2. Insert bolt into hole using non-metallic hammer.
3. Assemble nut on inside of trailer.
4. Tighten nut to suggested seating torque (5/16": 150 to 175 lbs./in.).
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
$0.00
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Solid Rivet Brazier Head Hard Aluminum 3/16"
$0.00
Couldn't load pickup availability
Solid Rivet Brazier Head Hard Aluminum 3/16"
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Camtainer® Bolt 5/16-18 x 1-1/4"
$0.00
Couldn't load pickup availability
Camtainer® Nut 5/16-18 x 1/2"
$0.00
Couldn't load pickup availability
Camtainer® Bolt 5/16-18 x 1"
$0.00
Couldn't load pickup availability
Adjustable 4-Pos T-Handle 1/2 Drive
$0.00
Couldn't load pickup availability
14Pc Metric 12Pt Cross-Torque Wrench Set
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
$0.00
Couldn't load pickup availability
14Pc Metric 12Pt Cross-Torque Wrench Set
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
$0.00
Couldn't load pickup availability
Acid Brush 1/2 x 5-3/4"
$0.00
Couldn't load pickup availability
Product Description
For truck trailer assemblies, including FRP/GRP materials. Designed to improve assembly of truck trailers. High-strength, removeable nuts and bolts provide positive sealing for protection against corrosion and leakage. Can be installed by a single operator using simple, low-cost tools. The TORX® Drive System on the nuts is engineered to provide high torque transfer, minimize end load and extend drive bit life.• Low-profile steel head
• Extended grip range
• Positive high torque and excellent structural strength
• One-person installation
• Resists loosening from vibration and expansion/contraction
• Tamper-resistant design
• Grade 5.1
• 1" head dia.
Installation
1. Drill or punch hole to proper size (5/16": 0.406" or 13/32").
2. Insert bolt into hole using non-metallic hammer.
3. Assemble nut on inside of trailer.
4. Tighten nut to suggested seating torque (5/16": 150 to 175 lbs./in.).
Technical Specifications
| Item#: | 1504402 |
|---|---|
| Type | Camtainer Bolt |
| Diameter | 5/16 " |
| Thread Pitch | 18 tpi |
| Length | 1 " |
| Head Style | Standard |
| Head Diameter | 1.000 " |
| Grade | 5.1 |
| UNSPSC #: | 31161627 |
| TAA Compliant: | No |
| Weight: | 4.245 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
