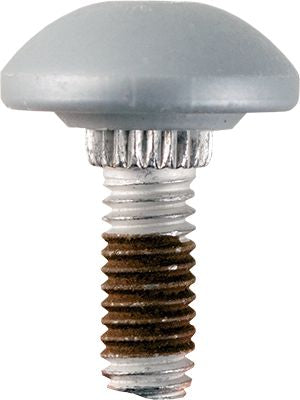

Camtainer® Bolt 5/16-18 x 1"
(Pack of
100.0)
For truck trailer assemblies, including FRP/GRP materials. Designed to improve assembly of truck trailers. High-strength, removeable nuts and bolts provide positive sealing for protection against corrosion and leakage. Can be installed by a single operator using simple, low-cost tools. The TORX® Drive System on the nuts is engineered to provide high torque transfer, minimize end load and extend drive bit life.
• Low-profile steel head
• Extended grip range
• Positive high torque and excellent structural strength
• One-person installation
• Resists loosening from vibration and expansion/contraction
• Tamper-resistant design
• Grade 5.1
• 1" head dia.
Installation
1. Drill or punch hole to proper size (5/16": 0.406" or 13/32").
2. Insert bolt into hole using non-metallic hammer.
3. Assemble nut on inside of trailer.
4. Tighten nut to suggested seating torque (5/16": 150 to 175 lbs./in.).
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 11-53
Frequently Bought Together
Hammerlock Cotter Pin Assortment
Couldn't load pickup availability
Sheet Metal Screw Steel Phillips Pan Head
Couldn't load pickup availability
Machine Screw Nylon Slotted Fillister Head
Couldn't load pickup availability
Lockbolt Collar Standard Flange Carbon Steel 1/4"
Couldn't load pickup availability
Nosepiece for 1543739 Rivet Tool 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
Couldn't load pickup availability
Camtainer® Bolt 5/16-18 x 1-1/4"
Couldn't load pickup availability
Camtainer® Bolt 5/16-18 x 1"
Couldn't load pickup availability
Camtainer® Nut 5/16-18 x 1/2"
Couldn't load pickup availability
Product Description
For truck trailer assemblies, including FRP/GRP materials. Designed to improve assembly of truck trailers. High-strength, removeable nuts and bolts provide positive sealing for protection against corrosion and leakage. Can be installed by a single operator using simple, low-cost tools. The TORX® Drive System on the nuts is engineered to provide high torque transfer, minimize end load and extend drive bit life.• Low-profile steel head
• Extended grip range
• Positive high torque and excellent structural strength
• One-person installation
• Resists loosening from vibration and expansion/contraction
• Tamper-resistant design
• Grade 5.1
• 1" head dia.
Installation
1. Drill or punch hole to proper size (5/16": 0.406" or 13/32").
2. Insert bolt into hole using non-metallic hammer.
3. Assemble nut on inside of trailer.
4. Tighten nut to suggested seating torque (5/16": 150 to 175 lbs./in.).
Technical Specifications
| Item#: | 1504403 |
|---|---|
| Type | Camtainer Bolt |
| Diameter | 5/16 " |
| Thread Pitch | 18 tpi |
| Length | 1 " |

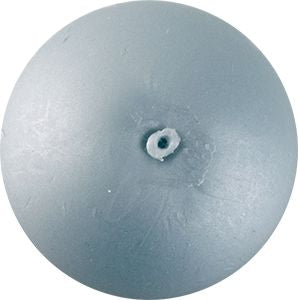

| Head Style | Encapsulated Gray |
| Head Diameter | 1.000 " |
| Grade | 5.1 |
| UNSPSC #: | 31161627 |
| TAA Compliant: | No |
| Weight: | 4.67 lb |
