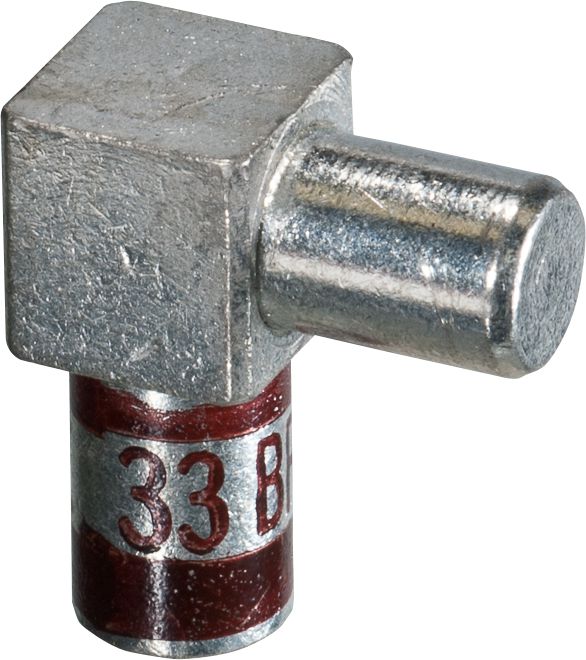

Color Coded Motor Pigtail Connector, 2 AWG, Male, Copper, Tin Plate, Brown, 2 Body Size
(Pack of
5)
SKU:94384 Item#: 94384
• Easy, error-free installation – eliminates bolting, taping and loose connections
• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Halogen Miniature Bulb 55W 12V
$0.00
Couldn't load pickup availability
Master Series Penlight Flashlight
$0.00
Couldn't load pickup availability
Long Barrel Compression 2-Way Connector 6 AWG
$0.00
Couldn't load pickup availability
Motor Stub Splice Insulator 14 to 10 AWG
$0.00
Couldn't load pickup availability
Standard One-Hole Lug 4/0 AWG Purple
$0.00
Couldn't load pickup availability
Flex-E-6001 Seam Sealer with Turbo Mixer
$0.00
Couldn't load pickup availability
Round Mini Turbo Mixer with Integrated Nut
$0.00
Couldn't load pickup availability
3Pc Adjustable/Pipe Wrench Set
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Female Disconnect Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Female Quick Slide Terminal 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Product Description
• Easy, error-free installation – eliminates bolting, taping and loose connections• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Technical Specifications
| Item#: | 94384 |
|---|---|
| Type | Industrial Connectors |
| Connector Type | Male |
| Wire Gauge | 2 AWG |
| Color | Brown |
| Body Size | 2 |
| Style | Pigtails |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.39 lb |
