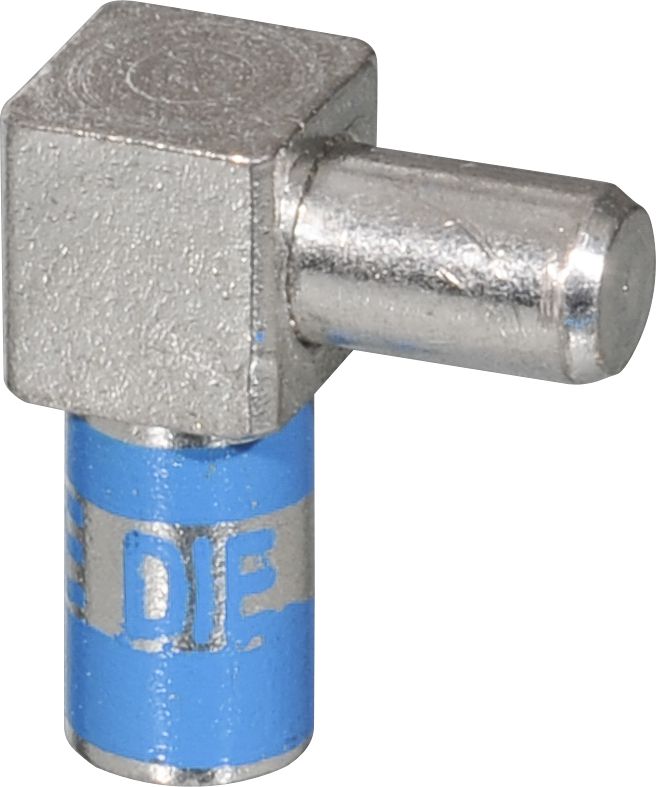

Color Coded Motor Pigtail Connector, 6 AWG, Male, Copper, Tin Plate, Blue, 2 Body Size
(Pack of
5)
SKU:94382 Item#: 94382
• Easy, error-free installation – eliminates bolting, taping and loose connections
• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Frequently Bought Together
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 36CP
$0.00
Couldn't load pickup availability
Long Barrel One-Hole Lug 8 AWG Red
$0.00
Couldn't load pickup availability
Long Barrel One-Hole Lug 350 MCM Red
$0.00
Couldn't load pickup availability
Standard One-Hole Lug 1 AWG Green
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Butt Connector 20 to 18 AWG Red
$0.00
Couldn't load pickup availability
Butt Connector 8 AWG Red
$0.00
Couldn't load pickup availability
Butt Connector 20 to 18 AWG Red
$0.00
Couldn't load pickup availability
Acid Brush 1/2 x 5-3/4"
$0.00
Couldn't load pickup availability
Bumper Grommet Nylon #10
$0.00
Couldn't load pickup availability
Apollo 2004 Super Glue Adhesive 3g
$0.00
Couldn't load pickup availability
Acid Brush 1/2 x 5-3/4"
$0.00
Couldn't load pickup availability
Bumper Grommet Nylon #10
$0.00
Couldn't load pickup availability
Apollo 2004 Super Glue Adhesive 3g
$0.00
Couldn't load pickup availability
Product Description
• Easy, error-free installation – eliminates bolting, taping and loose connections• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Technical Specifications
| Item#: | 94382 |
|---|---|
| Type | Industrial Connectors |
| Connector Type | Male |
| Wire Gauge | 6 AWG |
| Color | Blue |
| Body Size | 2 |
| Style | Pigtails |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.35 lb |
