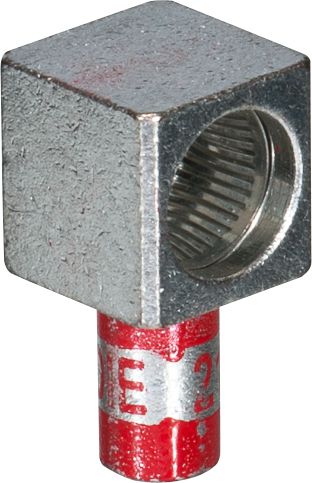

Color Coded Motor Pigtail Connector, 8 AWG, Female, Copper, Tin Plate, Red, 2 Body Size
(Pack of
5)
SKU:94390 Item#: 94390
• Easy, error-free installation – eliminates bolting, taping and loose connections
• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Frequently Bought Together
Vision Pro Super
$0.00
Couldn't load pickup availability
Nylon Cable Tie 5-1/2" Black
$0.00
Couldn't load pickup availability
Nylon Cable Tie 4" Black
$0.00
Couldn't load pickup availability
Motor Pigtail Connector 12 to 10 AWG
$0.00
Couldn't load pickup availability
Long Barrel One-Hole Lug 2 AWG Brown
$0.00
Couldn't load pickup availability
Long Barrel One-Hole Lug 1 AWG Green
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Spade Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
3Pc Multi-Purpose Scraper/Pry Bar Set
$0.00
Couldn't load pickup availability
Reciprocating Saw Blade 12" 10TPI
$0.00
Couldn't load pickup availability
3" Partsmaster Type R Surface Conditioning Disk-Coarse
$0.00
Couldn't load pickup availability
3Pc Multi-Purpose Scraper/Pry Bar Set
$0.00
Couldn't load pickup availability
Reciprocating Saw Blade 12" 10TPI
$0.00
Couldn't load pickup availability
3" Partsmaster Type R Surface Conditioning Disk-Coarse
$0.00
Couldn't load pickup availability
Product Description
• Easy, error-free installation – eliminates bolting, taping and loose connections• Provides quick, easy changeout of motors and transformers with less downtime
• Quick connect/disconnect capability
• Precision male and female design
• Patented, high-amp interface band
• Compact size
• High-conductivity copper with tin plating
• Temperature rating: 194°F (90°C)
Quick, Easy Installation1. Choose appropriate color-coded connector for conductor size to be terminated.2. Select proper installation die by matching die color to connector barrel color bands.3. Insert stripped wire into barrel of connector. Using Tru-Crimp® installation tool, compress the connector between color bands. Repeat for mating half.4. Snap the two halves together and slip insulator over mated connection. Secure insulator with cable ties provided with the insulators. (Replacement cable ties, Lawson No. 89255.)
NOTE: Always choose the same body size when selecting male and female halves. For example, to connect a 4 Ga. male to a 2 Ga. female, select Item Nos. 94383 and 94393 - both have a #2 body size.
Technical Specifications
| Item#: | 94390 |
|---|---|
| Type | Industrial Connectors |
| Connector Type | Female |
| Wire Gauge | 8 AWG |
| Color | Red |
| Body Size | 2 |
| Style | Pigtails |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.19 lb |
