Home Hydraulics Fittings Brass Compression Elbow Brass 90° 1/4-18 x 3/8"
Brass

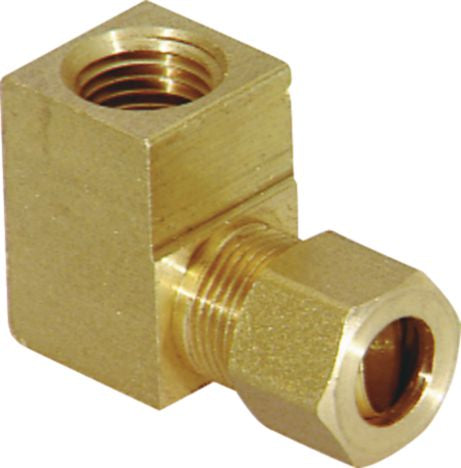

Compression Elbow, Brass, 90°, 1/4-18 x 3/8", Female NPT x Tube, 500PSI
(Pack of 5)

Item#: 5098

Lawson

• UL (No. AU 1042) approved for hazardous liquid, fuel equipment and gas
• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping
• Compatible tubing: Copper, brass, aluminum and plastic (soft plastic tubing requires support inside)
• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing; 1,000 PSI on 5/16" to 1/2" tubing; 750 PSI on 3/4" and 1" tubing
• Temperature range: –65°F to +250°F (–54°C to +121°C)

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Pipe Adapter Brass 1/4-18 x 1/4-18

Item#: 5277

Pipe Street Elbow Brass 45° 1/8-27 x 1/8-27

Item#: 5312

Pipe Bushing Brass 1/2-14 x 1/4-18

Item#: 5286

Pipe Adapter Brass 1/4-18 x 1/4-18

Item#: 5277

Pipe Street Elbow Brass 45° 1/8-27 x 1/8-27

Item#: 5312

Pipe Nipple Steel Galvanized Schedule 40 Welded 1-1/4-11-1/2 x 5 "

Item#: 81965

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT11948

Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"

Item#: P28925M01

Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"

Item#: P63942M01

Bumper Radiator and Grille Drive Rivet 7mm Hole

Item#: P85262

Push-Type Retainer Nylon 16 x 19mm

Item#: 1468633

Bumper Fascia General Purpose Split Rivet 3/16"

Item#: KT13747

Product Description

• UL (No. AU 1042) approved for hazardous liquid, fuel equipment and gas
• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping
• Compatible tubing: Copper, brass, aluminum and plastic (soft plastic tubing requires support inside)
• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing; 1,000 PSI on 5/16" to 1/2" tubing; 750 PSI on 3/4" and 1" tubing
• Temperature range: –65°F to +250°F (–54°C to +121°C)

Technical Specifications

Item#: 5098
Fitting Type Compression
Angle 90 °
Configuration Elbow
Material Brass
Connection Type A x B Female NPT x Tube
Fitting Dimension A 1/4-18
Fitting Dimension B 3/8 "
Working Pressure 500 PSI
Temperature Range -65 to 250 F
UNSPSC #: 40170000
TAA Compliant: No
Weight: 0.47 lb
