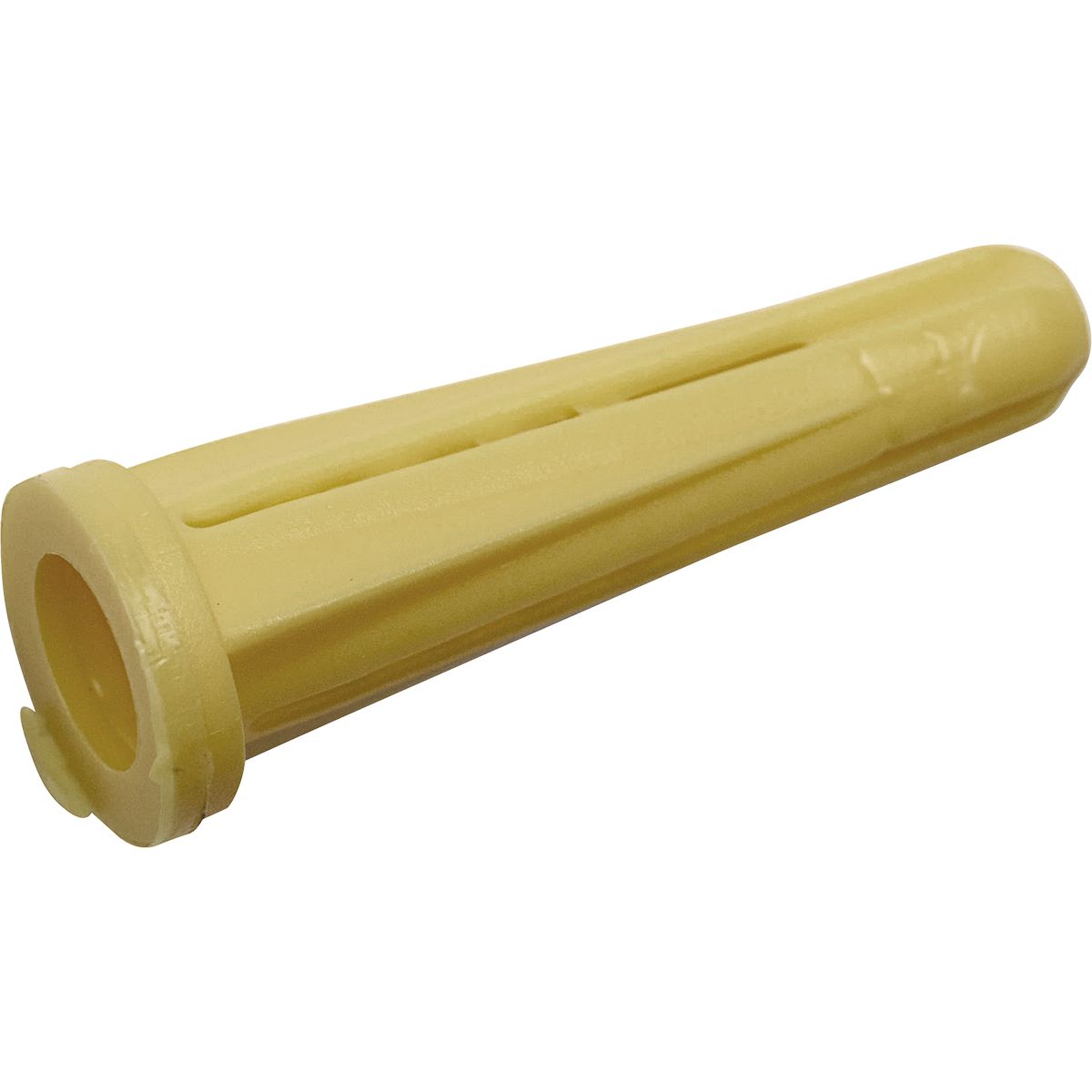

Conical Screw Anchor, Plastic, 3/16" Drill Size, #8 to #10 Screw Diameter x 7/8" Anchor Length
(Pack of
100)
SKU:25191 Item#: 25191
• Use with wood or sheet metal screws
1. Drill hole 1/4" deeper than length of anchor. Insert anchor flush with surface of wall.2. Insert wood screw through fixture into anchor and tighten. Anchor is expanded and will hold firmly.3. For best results, screw should protrude 1/4" through bottom of anchor. Screw length should equal thickness of fixture plus length of anchor plus 1/4".
Safe working load is 25% of proof test load.
Frequently Bought Together
Conical Screw Anchor Kit Plastic 201Pcs
$0.00
Couldn't load pickup availability
Drill 'N Drive Masonry Anchor Kit 102Pcs
$0.00
Couldn't load pickup availability
Self-Drilling Wallboard Mini Anchor Kit 51Pcs
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
$0.00
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M10-1.5
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel #6-32 x 3"
$0.00
Couldn't load pickup availability
Toggle Bolt Anchor Wing #6-32
$0.00
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel 3/8-16 x 6"
$0.00
Couldn't load pickup availability
Product Description
• Use with wood or sheet metal screws1. Drill hole 1/4" deeper than length of anchor. Insert anchor flush with surface of wall.2. Insert wood screw through fixture into anchor and tighten. Anchor is expanded and will hold firmly.3. For best results, screw should protrude 1/4" through bottom of anchor. Screw length should equal thickness of fixture plus length of anchor plus 1/4".
Safe working load is 25% of proof test load.
Technical Specifications
| Item#: | 25191 |
|---|---|
| Length | 7/8 " |
| Type | Conical Plastic Screw Anchor |
| Size | 8-10X7/8 " |
| Material | Plastic |
| Screw Diameter | 8 - 10 " |
| Drill Size | 3/16 " |
| Color | Yellow |
| Proof Test Load | 175 - 200 lb |
| UNSPSC #: | 31162103 |
| TAA Compliant: | Yes |
| Weight: | 0.08 lb |
Product Restrictions
