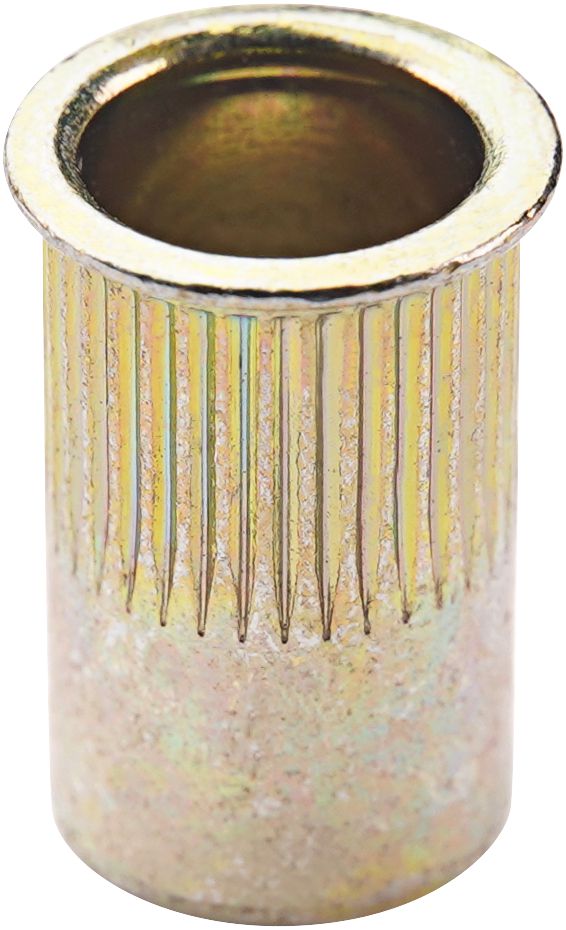

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Standard Flange, Coarse Thread, M5-0.8, 0.5 to 3.3mm Grip, 7.6mm Hole
(Pack of
25)
SKU:94741 Item#: 94741
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-95
Frequently Bought Together
Diamond Grip II Threaded Insert #10-32
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall 3/8-16
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-24
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
$0.00
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M10-1.5
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Standard Threaded Insert 1/4-20
$0.00
Couldn't load pickup availability
Blind Rivet Nut Prebulbed Slotted Body Series
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-32
$0.00
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 94741 |
|---|---|
| Diameter | M5 |
| Thread Pitch | 0.8 mm |
| Grip Range | 0.50 – 3.30 mm |
| Flange Type | Standard Flange |
| Hole Size | 7.60 mm |
| Pilot Drill Size | 19/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.12 lb |
