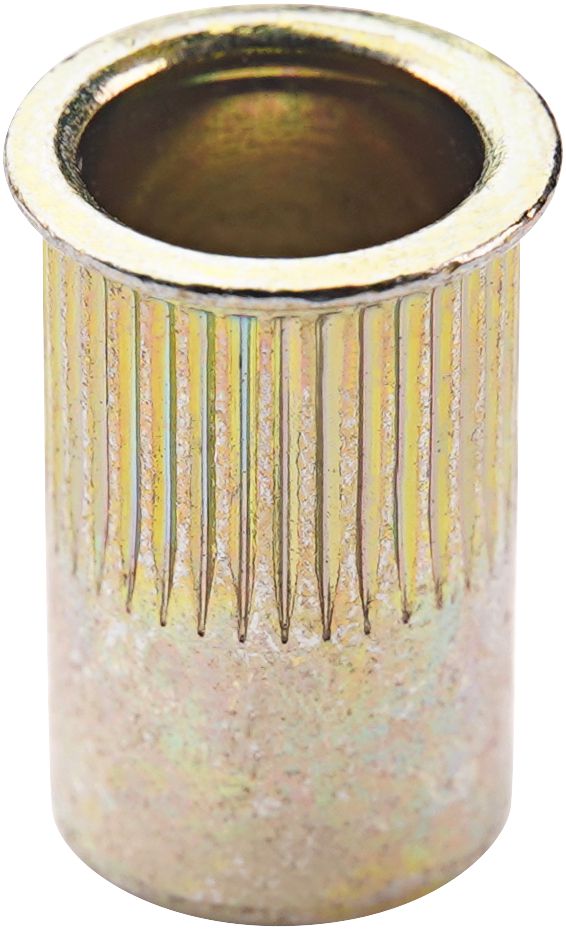

Diamond Grip II Threaded Insert 1/4-20
(Pack of
25.0)
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-95
Frequently Bought Together
Blind Rivet Nut Insert Thin Wall M5-0.8
Couldn't load pickup availability
Diamond Grip II Threaded Insert #6-32
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall #10-24
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 12mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 45mm
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Rivet Nut Hand Tool Long Kit 1/4-20 and 1/4-28
Couldn't load pickup availability
Pneumatic Rivet Nut Installation Tool Right Angle
Couldn't load pickup availability
Pneumatic Rivet Nut Installation Tool In-Line
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Large flange style can be used in oversized and out-of-round holes
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 51673 |
|---|---|
| Diameter | 1/4 " |
| Thread Pitch | 20 |
| Grip Range | 0.027 – 0.165 " |
| Flange Type | Large Flange |
| Hole Size | 0.391 " |
| Pilot Drill Size | 25/64 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Coarse |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.27 lb |
